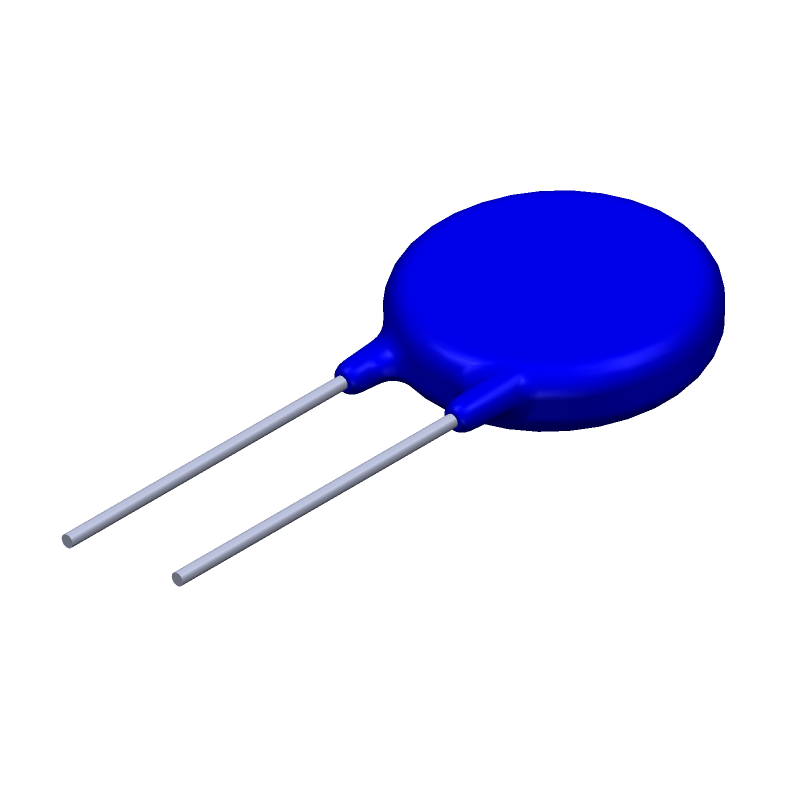

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B72220S0271K151 by TDK Corporation
Results Overview of B72220S0271K151 by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B72220S0271K151 Information
B72220S0271K151 by TDK Corporation is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for B72220S0271K151
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B72220S0271K151
|
Avnet Americas | Var 275VAC 350VDC 8000A 430V Thru-Hole T/R - Tape and Reel (Alt: B72220S0271K151) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.2068 / $0.3135 | Buy Now |
|
DISTI #
871-B72220S0271K151
|
Mouser Electronics | Varistors 275VAC 10% 20mm StandarD RoHS: Compliant | 2926 |
|
$0.3490 / $1.5400 | Buy Now |
|
DISTI #
B72220S0271K151
|
TTI | Varistors 275VAC 10% 20mm StandarD RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.2980 / $0.4600 | Buy Now |
|
DISTI #
B72220S0271K151
|
Avnet Abacus | Var 275VAC 350VDC 8000A 430V ThruHole TR (Alt: B72220S0271K151) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for B72220S0271K151
B72220S0271K151 CAD Models
B72220S0271K151 Part Data Attributes
|
|
B72220S0271K151
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B72220S0271K151
TDK Corporation
Varistor, 350V, 151J, Through Hole Mount, RADIAL LEADED
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | TDK | |
| Circuit RMS Voltage-Max | 275 V | |
| Energy Absorbing Capacity-Max | 151 J | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | DISK PACKAGE | |
| Packing Method | TR, 20 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Resistor Type | VARISTOR | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 350 V |
Alternate Parts for B72220S0271K151
This table gives cross-reference parts and alternative options found for B72220S0271K151. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B72220S0271K151, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B72220S0271K151 | TDK Electronics | $0.6500 | RESISTOR, VOLTAGE DEPENDENT, 350V, 151J, THROUGH HOLE MOUNT, RADIAL LEADED | B72220S0271K151 vs B72220S0271K151 |
B72220S0271K151 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the B72220S0271K151 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
-
Yes, the B72220S0271K151 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as in automotive or industrial systems.
-
The ESR of the B72220S0271K151 is approximately 150 mΩ at 100 kHz, which is relatively low and suitable for high-frequency applications.
-
Yes, the B72220S0271K151 is suitable for use in DC-DC converter designs due to its low ESR, high ripple current capability, and high reliability.
-
The MSL of the B72220S0271K151 is level 2, which means it can withstand exposure to moisture for up to 4 days without requiring special handling or storage.
