Diodes / Bridge Rectifier Diodes / B6S-E3/80
Datasheets
B6S-E3/80 by:

Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, TO-269AA, ROHS COMPLIANT, PLASTIC, MBS, 4 PIN

Part Details for B6S-E3/80 by Vishay Intertechnologies

Results Overview of B6S-E3/80 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense

B6S-E3/80 Information

B6S-E3/80 by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for B6S-E3/80

Part # Distributor Description Stock Price Buy
DISTI # 60AC3591
Newark Bridge Rectifier, 600V, 0.5A, To-269Aa, No. Of Phases:Single Phase, Repetitive Peak Reverse Voltage:600V, Average Forward Current:500Ma, Bridge Rectifier Case Style:To-269Aa, No. Of Pins:4Pins, Forward Voltage Max:1V, Product Range:-Rohs Compliant: Yes |Vishay B6S-E3/80 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 46
  • 1 $0.6360
  • 10 $0.5690
  • 25 $0.5170
  • 50 $0.4660
  • 100 $0.4140
  • 250 $0.3860
  • 500 $0.3570
  • 1,000 $0.3140
$0.3140 / $0.6360 Buy Now
DISTI # 76K3873
Newark 0.5A,600V, sm Mini Bridge |Vishay B6S-E3/80 RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.2880
  • 10,000 $0.2680
  • 20,000 $0.2510
  • 30,000 $0.2360
  • 50,000 $0.2260
$0.2260 / $0.2880 Buy Now
DISTI # 60AC3591
Avnet Americas 0.5A,600V,SM MINI BRIDGE - Product that comes on tape, but is not reeled (Alt: 60AC3591) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Ammo Pack 46 Partner Stock
  • 1 $0.6160
  • 10 $0.5490
  • 25 $0.4970
  • 50 $0.4460
  • 100 $0.3940
$0.3940 / $0.6160 Buy Now
DISTI # B6S-E3/80
Avnet Americas 0.5A,600V,SM MINI BRIDGE - Tape and Reel (Alt: B6S-E3/80) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1919
  • 12,000 $0.1872
  • 18,000 $0.1849
  • 30,000 $0.1827
  • 60,000 $0.1806
$0.1806 / $0.1919 Buy Now
DISTI # 625-B6S-E3/80
Mouser Electronics Bridge Rectifiers 0.5 Amp 600 Volt RoHS: Compliant 3184
  • 1 $0.8100
  • 10 $0.5740
  • 25 $0.5370
  • 100 $0.3810
  • 250 $0.3800
  • 500 $0.2970
  • 1,000 $0.2670
  • 3,000 $0.2320
  • 6,000 $0.2150
$0.2150 / $0.8100 Buy Now
Future Electronics B6S Series 0.5 A 600 V Surface Mount TO-269AA Bridge Rectifier - TO-269AA RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 7 Weeks Container: Reel 0
Reel
  • 3,000 $0.2000
  • 6,000 $0.1980
  • 9,000 $0.1950
$0.1950 / $0.2000 Buy Now
DISTI # B6S-E3/80
TTI Bridge Rectifiers 0.5 Amp 600 Volt RoHS: Compliant pbFree: Pb-Free Min Qty: 6000 Package Multiple: 3000 Container: Reel Americas - 0
  • 6,000 $0.2030
  • 9,000 $0.1990
  • 15,000 $0.1950
  • 30,000 $0.1910
  • 60,000 $0.1870
$0.1870 / $0.2030 Buy Now
DISTI # B6S-E3/80
TME Bridge rectifier: single-phase, Urmax: 600V, If: 0.5A, Ifsm: 30A Min Qty: 1 112
  • 1 $0.5030
  • 5 $0.2320
  • 10 $0.2220
  • 100 $0.1900
  • 500 $0.1690
  • 1,000 $0.1610
  • 3,000 $0.1470
  • 9,000 $0.1330
  • 30,000 $0.1180
$0.1180 / $0.5030 Buy Now
DISTI # B6S-E3/80
IBS Electronics RECT BRIDGE 600V .5A TO269AA / RECTIFIER BRIDGE DIODE SINGLE 600V 0.5A 4-PIN TO-269AA T/R Min Qty: 6000 Package Multiple: 1 0
  • 6,000 $0.2990
  • 6,000 $0.2925
  • 9,000 $0.2925
  • 12,000 $0.2925
  • 15,000 $0.2860
$0.2860 / $0.2990 Buy Now
DISTI # B6S-E3/80
EBV Elektronik 05A600VSM MINI BRIDGE (Alt: B6S-E3/80) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 18000
Buy Now
LCSC 1V500mA 500mA 600V TO-269AA(MBS) Bridge Rectifiers ROHS 50
  • 1 $0.4019
  • 10 $0.3112
  • 30 $0.2720
  • 100 $0.2236
  • 500 $0.2025
  • 1,000 $0.1889
$0.1889 / $0.4019 Buy Now
New Advantage Corporation RectifierDiode,Schottky,1Phase,1Element,5A,50VV(RRM),Silicon RoHS: Compliant Min Qty: 1 Package Multiple: 3000 15000
  • 3,000 $0.3533
  • 15,000 $0.3262
$0.3262 / $0.3533 Buy Now

Part Details for B6S-E3/80

B6S-E3/80 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

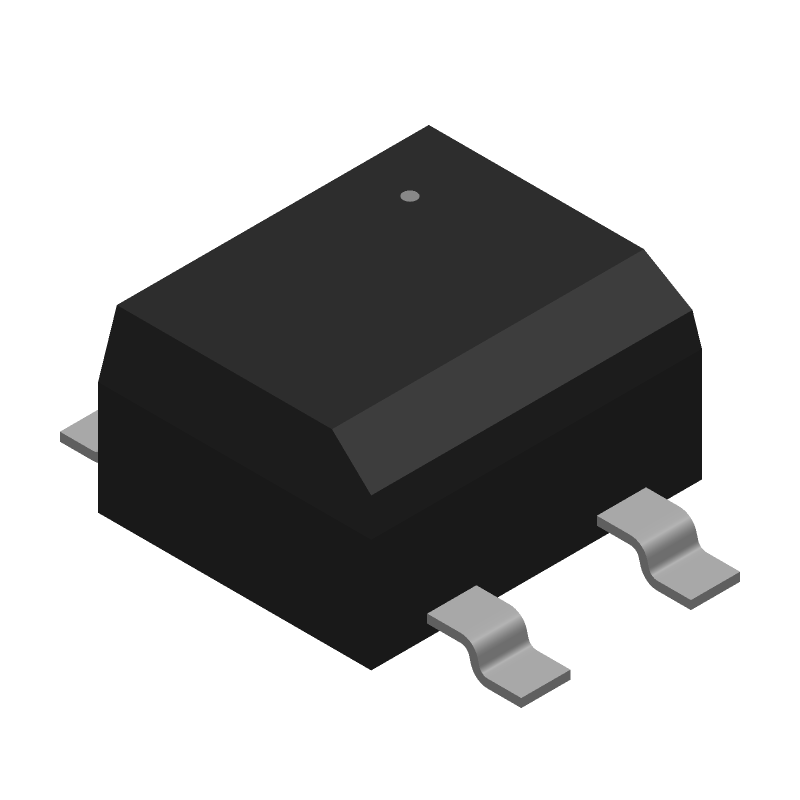

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

B6S-E3/80 Part Data Attributes

Parametric Data
B6S-E3/80 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
B6S-E3/80 Vishay Intertechnologies Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, TO-269AA, ROHS COMPLIANT, PLASTIC, MBS, 4 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description ROHS COMPLIANT, PLASTIC, MBS, 4 PIN
Reach Compliance Code compliant
Factory Lead Time 14 Weeks
Samacsys Manufacturer Vishay
Breakdown Voltage-Min 600 V
Configuration BRIDGE, 4 ELEMENTS
Diode Element Material SILICON
Diode Type BRIDGE RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JEDEC-95 Code TO-269AA
JESD-30 Code R-PDSO-G4
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 30 A
Number of Elements 4
Number of Phases 1
Number of Terminals 4
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.5 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 600 V
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40

Alternate Parts for B6S-E3/80

This table gives cross-reference parts and alternative options found for B6S-E3/80. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B6S-E3/80, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MB6S Yangzhou Yangjie Electronics Co Ltd $0.0445 Bridge Rectifier Diode, 0.8A, 600V V(RRM), B6S-E3/80 vs MB6S
B6S Vishay Intertechnologies Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), B6S-E3/80 vs B6S
B6S Formosa Microsemi Co Ltd Check for Price Bridge Rectifier Diode, 0.5A, 600V V(RRM) B6S-E3/80 vs B6S
B6S Kuwait Semiconductor Co Ltd Check for Price Bridge Rectifier Diode, 0.5A, 600V V(RRM) B6S-E3/80 vs B6S
Part Number Manufacturer Composite Price Description Compare
MBS6 Taiwan Semiconductor $0.3243 Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, GREEN, PLASTIC, MBS, 4 PIN B6S-E3/80 vs MBS6
B6S HY Electronic Corp Check for Price Bridge Rectifier Diode B6S-E3/80 vs B6S
B6S-E3/80 Vishay Semiconductors Check for Price DIODE 0.5 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE, TO-269AA, ROHS COMPLIANT, PLASTIC, MBS, 4 PIN, Bridge Rectifier Diode B6S-E3/80 vs B6S-E3/80
MB6S General Instrument Corp Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, B6S-E3/80 vs MB6S
MB6S-E3/30 Vishay Intertechnologies Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, TO-269AA, PLASTIC, MBS, 4 PIN B6S-E3/80 vs MB6S-E3/30
MB6S-E3 Vishay Intertechnologies Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, TO-269AA, LEAD FREE, MINIATURE, PLASTIC, MBS, 4 PIN B6S-E3/80 vs MB6S-E3
MB6M General Instrument Corp Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, B6S-E3/80 vs MB6M
S1ZB60 Shindengen Electronic Manufacturing Co Ltd Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, 1Z, 4 PIN B6S-E3/80 vs S1ZB60
MB6S/30 Vishay Semiconductors Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, TO-269AA, PLASTIC, MBS, 4 PIN B6S-E3/80 vs MB6S/30
MB6M Micro Commercial Components Check for Price Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, PLASTIC, MB-1, 4 PIN B6S-E3/80 vs MB6M

B6S-E3/80 Related Parts

B6S-E3/80 Frequently Asked Questions (FAQ)

  • The recommended storage temperature for B6S-E3/80 is -40°C to +125°C.

  • Yes, the B6S-E3/80 is designed to operate in humid environments, but it's recommended to follow the recommended storage and handling procedures to prevent moisture-related issues.

  • The maximum allowable voltage derating for the B6S-E3/80 is 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.

  • Handle the B6S-E3/80 with ESD-protective equipment, such as wrist straps, mats, and bags, and follow proper ESD handling procedures to prevent damage.

  • The B6S-E3/80 is designed for general-purpose applications, but it may not be suitable for high-frequency applications. Consult the datasheet and application notes for specific frequency-related information.
