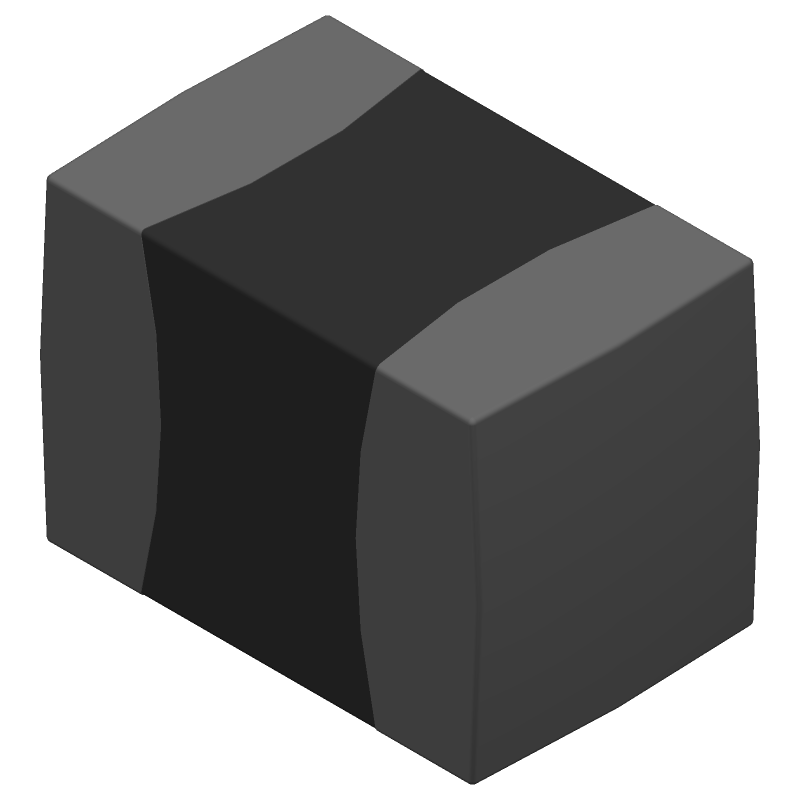

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B57452V5104J062 by TDK Corporation
Results Overview of B57452V5104J062 by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B57452V5104J062 Information
B57452V5104J062 by TDK Corporation is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for B57452V5104J062
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B57452V5104J062
|
Avnet Americas | Thermistor NTC 100000 Ohm 5% 2-Pin 0805 Cardboard T/R - Tape and Reel (Alt: B57452V5104J062) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.2100 / $0.2144 | Buy Now |
|
DISTI #
871-B57452V5104J062
|
Mouser Electronics | NTC Thermistors 0805 100K 5% B-4480 NTC RoHS: Compliant | 0 |
|
$0.1770 / $0.3600 | Order Now |
|
DISTI #
B57452V5104J062
|
Avnet Abacus | Thermistor NTC 100000 Ohm 5 2Pin 0805 Cardboard TR (Alt: B57452V5104J062) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Resistors | 76394 |
|
RFQ |
Part Details for B57452V5104J062
B57452V5104J062 CAD Models
B57452V5104J062 Part Data Attributes
|
|
B57452V5104J062
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B57452V5104J062
TDK Corporation
NTC Thermistor, 100000ohm, Surface Mount, CHIP, 0805
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.3 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, BLISTER, 7 INCH | |
| Rated Power Dissipation (P) | 0.21 W | |
| Rated Temperature | 25 °C | |
| Reference Standard | AEC-Q200; UL | |
| Resistance | 100000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | YES | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermal Sensitivity Index | 4480 K | |
| Thermistor Application | TEMPERATURE COMPENSATION | |
| Tolerance | 5% |
