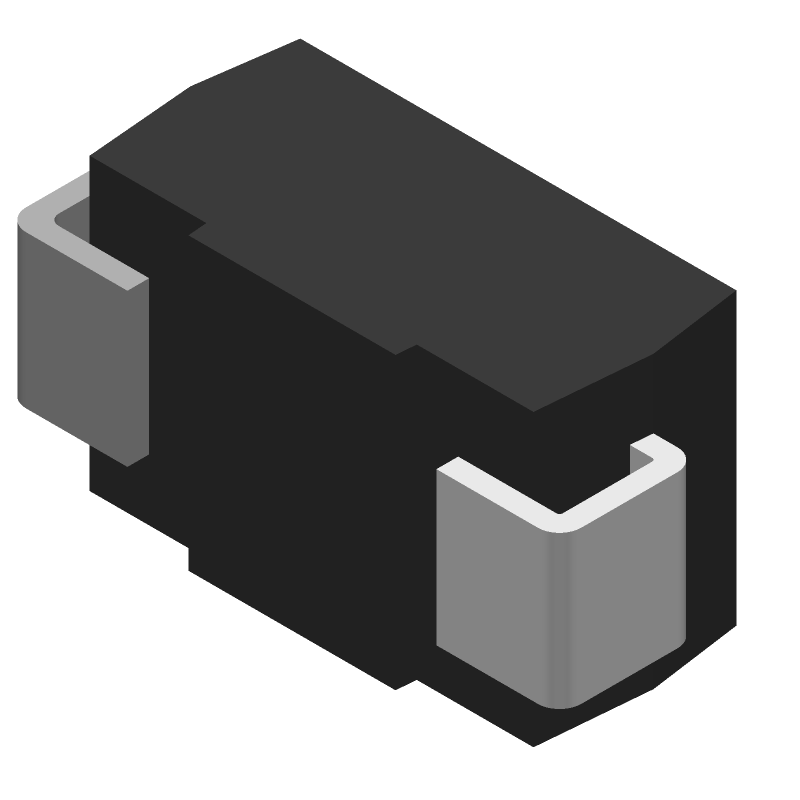

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B360A-E3/5AT by Vishay Intertechnologies
Results Overview of B360A-E3/5AT by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B360A-E3/5AT Information
B360A-E3/5AT by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for B360A-E3/5AT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08N8760
|
Newark | 3A,60V, sm Schottky Rect |Vishay B360A-E3/5AT RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1270 / $0.1880 | Buy Now |
|
DISTI #
26AM2673
|
Newark | 3A,60V, sm Schottky Rect |Vishay B360A-E3/5AT RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0420 | Buy Now |
|
DISTI #
B360A-E3/5AT
|
Avnet Americas | 3A,60V,SM SCHOTTKY RECT - Tape and Reel (Alt: B360A-E3/5AT) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 5 Weeks, 0 Days Container: Reel | 45000 |
|
$0.1100 | Buy Now |
|
DISTI #
625-B360A-E3/5AT
|
Mouser Electronics | Schottky Diodes & Rectifiers 60 Volt 3.0 Amp 50 Amp IFSM RoHS: Compliant | 16481 |
|
$0.1280 / $0.5100 | Buy Now |
|
DISTI #
E02:0323_00197251
|
Arrow Electronics | Diode Schottky 60V 3A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Lead time: 5 Weeks Date Code: 2504 | Europe - 15000 |
|
$0.3970 / $0.4137 | Buy Now |
|
DISTI #
87668329
|
Verical | Diode Schottky 60V 3A 2-Pin SMA T/R Min Qty: 7500 Package Multiple: 7500 Date Code: 2504 | Americas - 15000 |
|
$0.3986 / $0.4153 | Buy Now |
|
DISTI #
B360A-E3/5AT
|
TTI | Schottky Diodes & Rectifiers 60 Volt 3.0 Amp 50 Amp IFSM RoHS: Compliant pbFree: Pb-Free Min Qty: 7500 Package Multiple: 7500 Container: Reel | Americas - 0 |
|
$0.0580 | Buy Now |
|
DISTI #
B360A-E3/5AT
|
EBV Elektronik | 3A60VSM SCHOTTKY RECT (Alt: B360A-E3/5AT) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 6 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 20914 |
|
RFQ |
Part Details for B360A-E3/5AT
B360A-E3/5AT CAD Models
B360A-E3/5AT Part Data Attributes
|
|
B360A-E3/5AT
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
B360A-E3/5AT
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, DO-214AC,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.62 V | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
