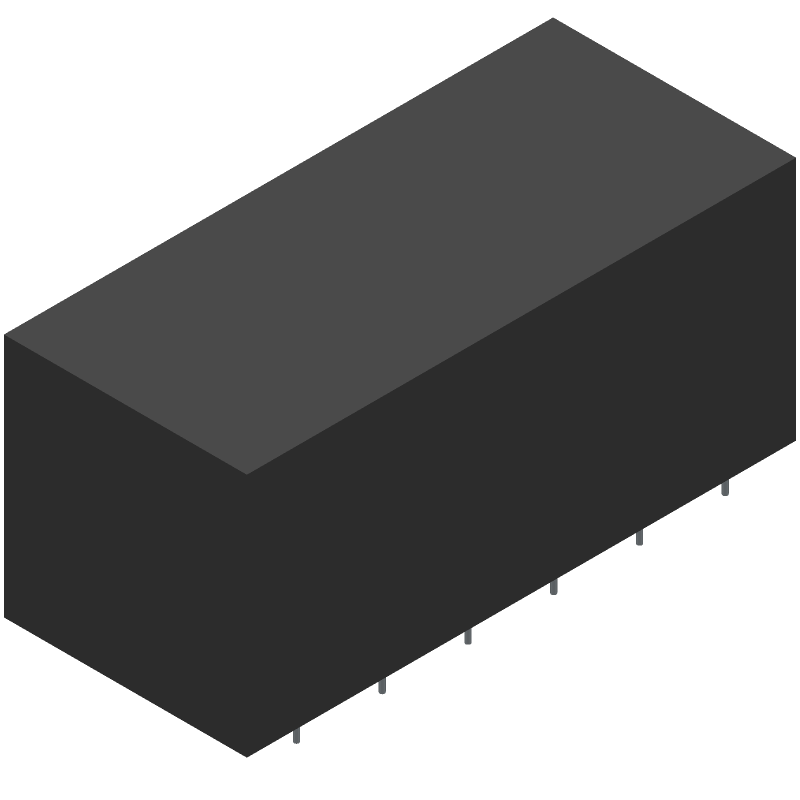

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B32778J1127K000 by TDK Corporation
Results Overview of B32778J1127K000 by TDK Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B32778J1127K000 Information
B32778J1127K000 by TDK Corporation is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for B32778J1127K000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
871-B32778J1127K000
|
Mouser Electronics | Film Capacitors FILM CAP 120uF 10% 1300Vdc LS 52.5mm RoHS: Compliant | 0 |
|
$73.5900 / $96.2500 | Order Now |
|
|
Vyrian | Capacitors | 644 |
|
RFQ |
Part Details for B32778J1127K000
B32778J1127K000 CAD Models
B32778J1127K000 Part Data Attributes
|
|
B32778J1127K000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B32778J1127K000
TDK Corporation
Film Capacitor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.80 | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 120 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 58 mm | |
| Length | 57.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | PCB Mount | |
| Packing Method | Bulk | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1300 V | |
| Reference Standard | IEC61071 | |
| Surface Mount | NO | |
| Terminal Shape | WIRE | |
| Width | 130 mm |
