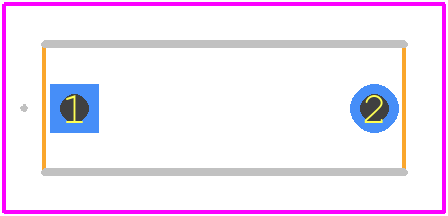

Footprint
-

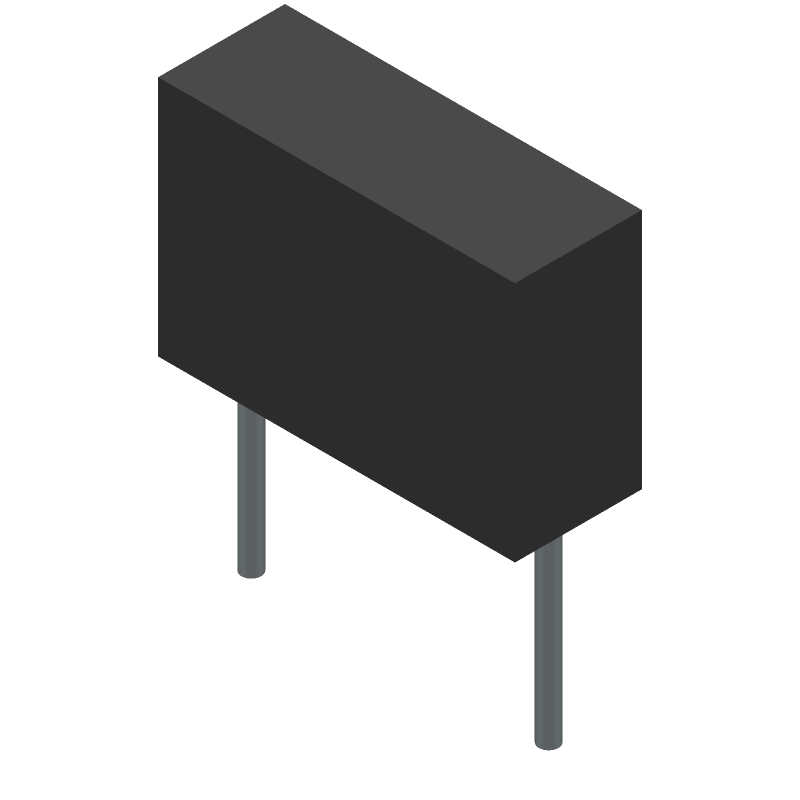

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B32560J3104J189 by TDK Corporation
Results Overview of B32560J3104J189 by TDK Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B32560J3104J189 Information
B32560J3104J189 by TDK Corporation is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for B32560J3104J189
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B32560J3104J189
|
Avnet Americas | Film Capacitor, 0.1 uF, 160 V, 250 V, ? 5%, Metallized PET Stacked, Radial Box - 2 Pin - Tape and Reel (Alt: B32560J3104J189) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.1056 | Buy Now |
|
DISTI #
871-B32560J3104J189
|
Mouser Electronics | Film Capacitors 0.1UF 5% 250V FILM CAP POLY UNCOAT RoHS: Compliant | 0 |
|
$0.1070 | Order Now |
|
DISTI #
B32560J3104J189
|
Avnet Abacus | Film Capacitor 01 uF 160 V 250 V 5 Metallized PET Stacked Radial Box 2 Pin (Alt: B32560J3104J189) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for B32560J3104J189
B32560J3104J189 CAD Models
B32560J3104J189 Part Data Attributes
|
|
B32560J3104J189
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B32560J3104J189
TDK Corporation
Film Capacitor, Polyethylene Terephthalate, 250V, 5% +Tol, 5% -Tol, 0.1uF, Through Hole Mount, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.1 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYETHYLENE TEREPHTHALATE | |
| Height | 6.1 mm | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | Radial | |
| Packing Method | TR, 20 INCH | |
| Positive Tolerance | 5% | |
| Rated (AC) Voltage (URac) | 160 V | |
| Rated (DC) Voltage (URdc) | 250 V | |
| Reference Standard | IEC60384-2 | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE | |
| Width | 3.2 mm |
