B2P-VH-FB-B Information
B2P-VH-FB-B by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for B2P-VH-FB-B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
455-B2P-VH-FB-B-ND
|
DigiKey | CONN HEADER VERT 2POS 3.96MM Min Qty: 1 Lead time: 16 Weeks Container: Bulk |
142257 In Stock |
|
$0.0987 / $0.1900 | Buy Now |
Part Details for B2P-VH-FB-B

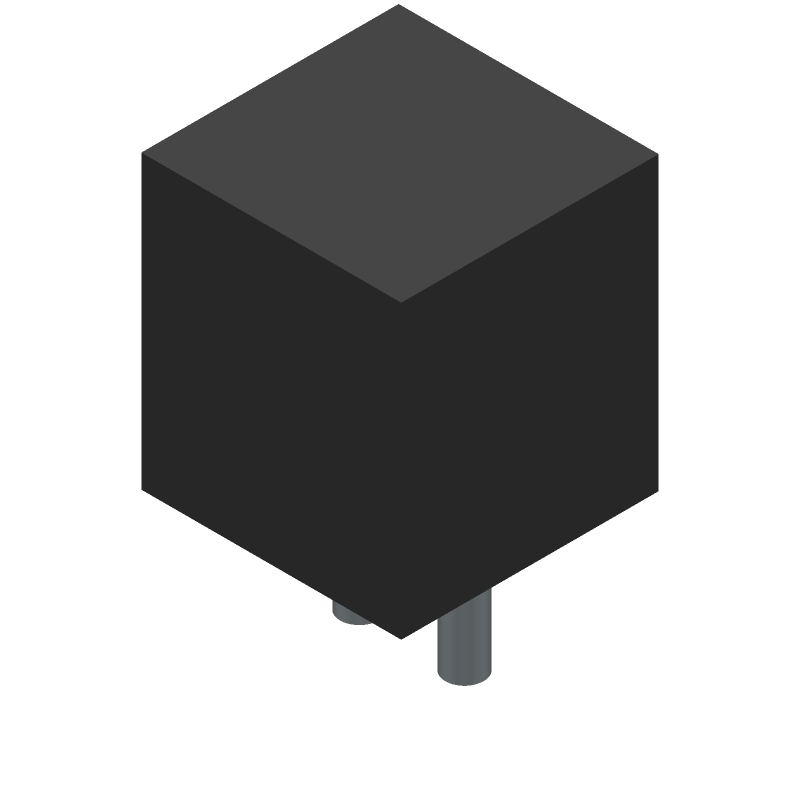

B2P-VH-FB-B CAD Models
B2P-VH-FB-B Part Data Attributes
|
|
B2P-VH-FB-B
JST Manufacturing
Buy Now
Datasheet
|
Compare Parts:
B2P-VH-FB-B
JST Manufacturing
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | J S T MFG CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | JST (JAPAN SOLDERLESS TERMINALS) | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | TIN | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 3.96 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for B2P-VH-FB-B
This table gives cross-reference parts and alternative options found for B2P-VH-FB-B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B2P-VH-FB-B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B2P-VH-FB-B-C(LF)(SN) | JST Manufacturing | Check for Price | Board Connector | B2P-VH-FB-B vs B2P-VH-FB-B-C(LF)(SN) |
B2P-VH-FB-B Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
-
Yes, the B2P-VH-FB-B connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
-
Yes, the connector is rated IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
The operating temperature range for the B2P-VH-FB-B connector is -40°C to 105°C (-40°F to 221°F).
-
While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
