B12AP by:

Toggle Switch, SPDT, On-on, Maintained, 3 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight

Part Details for B12AP by NKK Switches

Results Overview of B12AP by NKK Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

B12AP Information

B12AP by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for B12AP

Part # Distributor Description Stock Price Buy
DISTI # 09X8543
Newark Switch, Toggle, Spdt, 0.1A, 28Vac, Switch Operation:On-On, Contact Configuration:Spdt, Illumination:Non Illuminated, Product Range:-, Contact Current Max:100Ma, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:28V Rohs Compliant: Yes |Nkk Switches B12AP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $9.6100
  • 10 $9.2300
  • 25 $8.9500
  • 50 $8.2900
  • 100 $7.5700
  • 250 $6.6700
  • 500 $5.9800
  • 1,000 $5.6300
$5.6300 / $9.6100 Buy Now
DISTI # 360-1012-ND
DigiKey SWITCH TOGGLE SPDT 0.4VA 28V Min Qty: 1 Lead time: 10 Weeks Container: Bulk 3835
In Stock
  • 1 $5.7700
  • 10 $4.9780
  • 25 $4.6940
  • 50 $4.4900
  • 100 $4.2945
  • 250 $4.0486
  • 500 $3.8717
  • 1,000 $3.7021
$3.7021 / $5.7700 Buy Now
DISTI # 633-B12AP
Mouser Electronics Toggle Switches SPDT ON-ON PC MOUNT RoHS: Compliant 647
  • 1 $5.5500
  • 10 $4.7700
  • 25 $4.5800
  • 50 $4.3600
  • 100 $4.3000
  • 250 $4.0300
  • 500 $3.8600
  • 1,000 $3.7100
$3.7100 / $5.5500 Buy Now
DISTI # 70192478
RS Switch, Sealed, Anti-Static Toggle, SPDT, ON-NONE-ON, Str PC, No Cap,0.4A,28VAC/DC Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 16
  • 1 $5.6100
  • 5 $5.1600
  • 10 $4.7600
  • 20 $4.3200
$4.3200 / $5.6100 Buy Now
DISTI # NKKB12AP
Heilind Electronics SWITCH TOGGLE SPDT .4VA Americas - 2125 in Stock
  • 1 $6.5000
  • 40 $5.4167
  • 80 $5.2419
  • 160 $5.1587
  • 310 $4.6508
$4.6508 / $6.5000 Buy Now
DISTI # 87553044
Verical Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount Min Qty: 13 Package Multiple: 1 Americas - 50
  • 13 $5.4040
  • 50 $4.3260
  • 250 $4.1580
  • 500 $4.0880
$4.0880 / $5.4040 Buy Now
Quest Components TOGGLE SWITCH, SPDT, ON-ON, MAINTAINED, 3 PCB HOLE CNT, SOLDER TERMINAL, TOGGLE BAT ACTUATOR, THROUGH HOLE-STRAIGHT 11
  • 1 $5.7375
  • 3 $3.8250
  • 8 $2.8688
$2.8688 / $5.7375 Buy Now
DISTI # B12AP
TTI Toggle Switches SPDT ON-ON PC MOUNT Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 2450
In Stock
  • 1 $5.3200
  • 10 $4.6400
  • 25 $4.5400
  • 50 $4.4500
  • 100 $4.2400
  • 160 $4.1500
  • 250 $3.9800
$3.9800 / $5.3200 Buy Now
DISTI # B12AP
TME Switch: toggle, Pos: 2, SPDT, ON-ON, 0.4A/28VAC, 0.4A/28VDC Min Qty: 1 0
  • 1 $3.6300
  • 10 $3.3000
  • 50 $3.0100
  • 100 $2.8700
  • 500 $2.7300
$2.7300 / $3.6300 RFQ
DISTI # B12AP
IBS Electronics SWITCH TOGGLE ON NONE ON SPDT BAT LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT Min Qty: 50 Package Multiple: 1 0
  • 50 $2.7560
  • 150 $2.7170
  • 200 $2.7040
  • 500 $2.6650
  • 750 $2.6390
$2.6390 / $2.7560 Buy Now
DISTI # NKKB12AP
Interstate Connecting Components SWITCH TOGGLE SPDT .4VA 708
  • 1 $6.5000
  • 40 $5.4167
  • 80 $5.2419
  • 160 $5.1587
  • 310 $4.6508
$4.6508 / $6.5000 Buy Now
Powell Electronics PROCESS SEALED SUBMINIATURE ANTISTATIC T Min Qty: 1 2355
  • 1 $5.4200
  • 250 $4.5100
  • 2,500 $3.7100
$3.7100 / $5.4200 Buy Now

Part Details for B12AP

B12AP CAD Models

  • Part Symbol

    Part Symbol

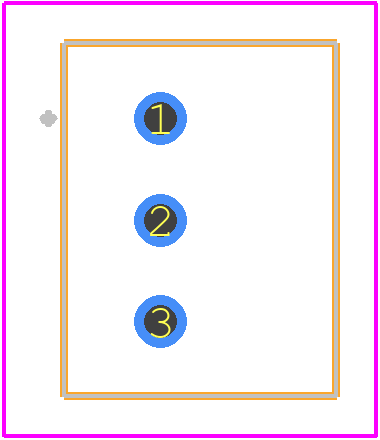

  • Footprint

    footprint

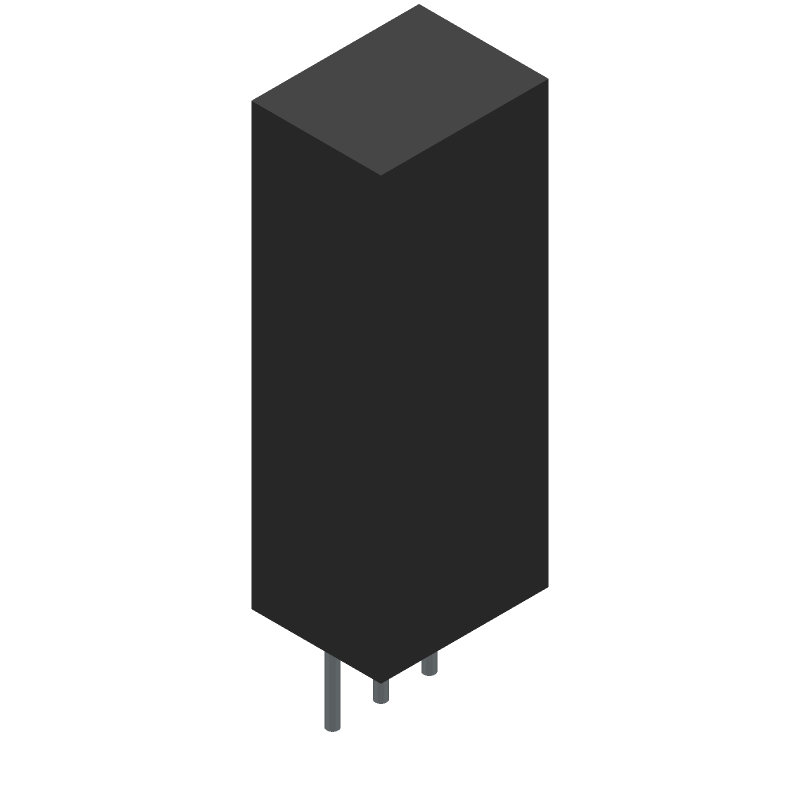

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

B12AP Part Data Attributes

Parametric Data
B12AP NKK Switches
Buy Now Datasheet
Compare Parts:
B12AP NKK Switches Toggle Switch, SPDT, On-on, Maintained, 3 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NKK SWITCHES CO LTD
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer NKK Switches
Actuator Angle 26 deg
Actuator Finish NICKEL
Actuator Length 0.394 inch
Actuator Material BRASS
Actuator Type TOGGLE BAT
Body Breadth 6.8072 mm
Body Height 9.6012 mm
Body Length or Diameter 8.7884 mm
Bushing Length 0.138 inch
Bushing Type UNTHREADED
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating GOLD
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Contact Function ON-ON
Contact Resistance 0.05 mΩ
Contact Timing BREAK-BEFORE-MAKE
Dielectric Withstand Volts 500VAC V
Electrical Life 50000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD
Illumination NON-ILLUMINATED
Insulation Resistance 500000000 Ω
Insulator Material GLASS FILLED POLYAMIDE
JESD-609 Code e4
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
PCB Hole Count 3
Sealing EPOXY
Surface Mount NO
Switch Action LATCHED
Switch Function SPDT
Switch Type TOGGLE SWITCH
Terminal Finish Gold (Au)
Terminal Length 0.122 inch
Terminal Material COPPER ALLOY
Termination Type SOLDER
