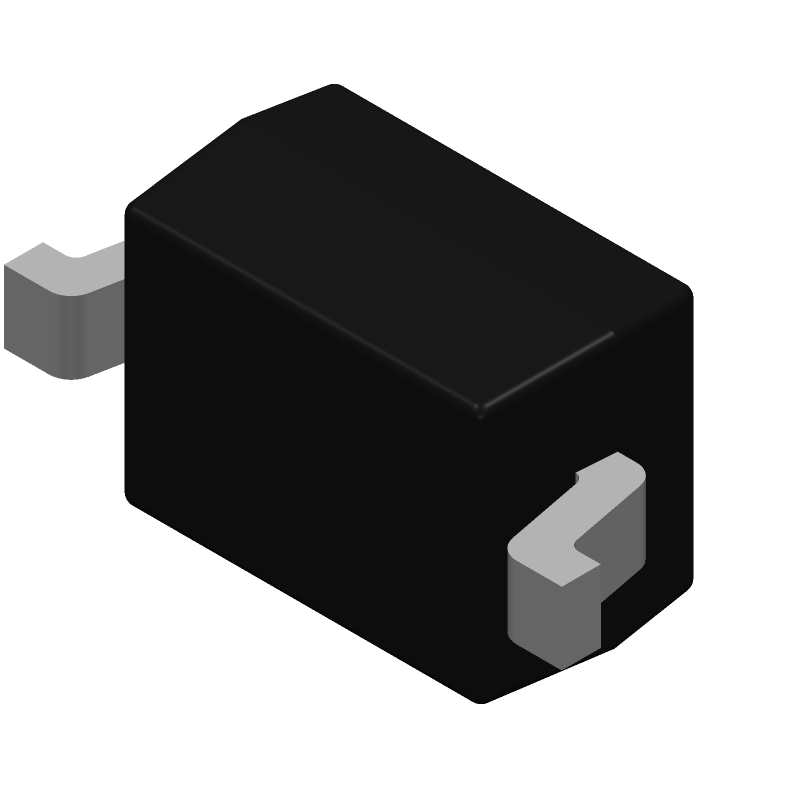

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B0540WSHE3-TP by Micro Commercial Components
Results Overview of B0540WSHE3-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B0540WSHE3-TP Information
B0540WSHE3-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for B0540WSHE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-B0540WSHE3-TPCT-ND
|
DigiKey | DIODE SCHOTTKY 40V 500MA SOD323 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2209 In Stock |
|
$0.0382 / $0.3000 | Buy Now |
|
DISTI #
833-B0540WSHE3-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 0.5A 40Vr 28Vrms 40V 5A 30pF RoHS: Compliant | 0 |
|
$0.0400 / $0.2800 | Order Now |
|
|
Vyrian | Diodes | 5500 |
|
RFQ |
Part Details for B0540WSHE3-TP
B0540WSHE3-TP CAD Models
B0540WSHE3-TP Part Data Attributes
|
|
B0540WSHE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
B0540WSHE3-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.5A, 40V V(RRM), Silicon, SOD-323, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOD-323, 2 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.55 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 80 µA | |
| Reverse Test Voltage | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
B0540WSHE3-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the B0540WSHE3-TP is -40°C to 125°C.
-
Yes, the B0540WSHE3-TP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical lead time for delivery of the B0540WSHE3-TP varies depending on the supplier and quantity, but it's usually around 2-4 weeks.
-
Yes, the B0540WSHE3-TP is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
-
Yes, the B0540WSHE3-TP is compatible with lead-free soldering processes, making it suitable for modern manufacturing techniques.
