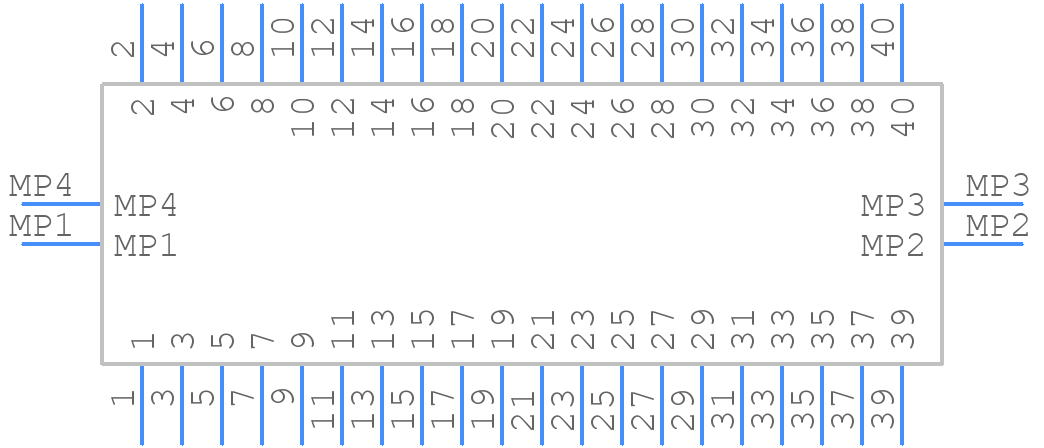

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AXT640124 by Panasonic Electronic Components
Results Overview of AXT640124 by Panasonic Electronic Components
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
AXT640124 Information

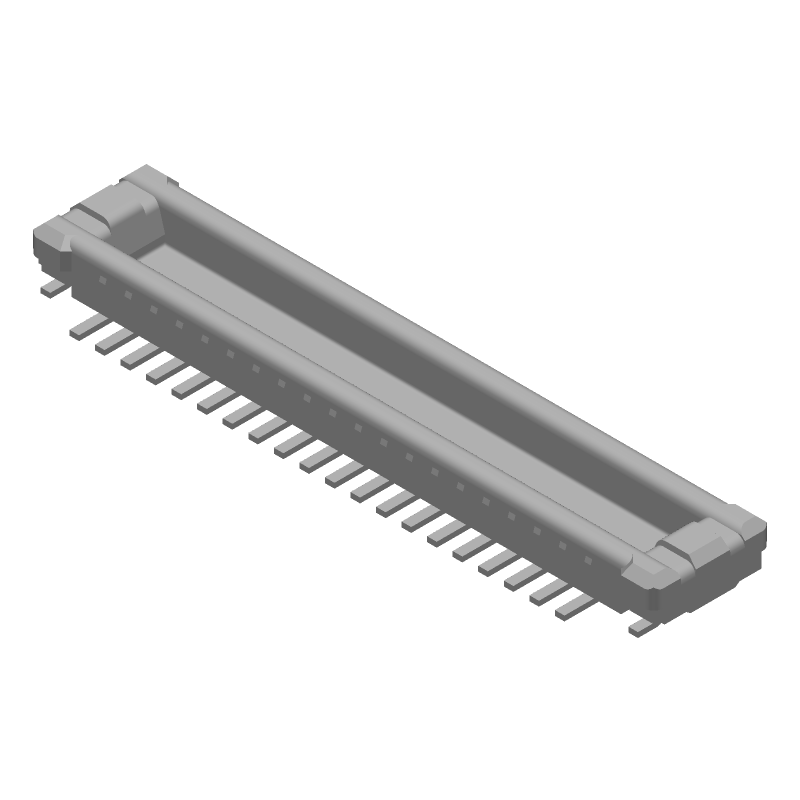

AXT640124 by Panasonic Electronic Components is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for AXT640124
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3513903
|
element14 Asia-Pacific | , , 40, 2 RoHS: Compliant Min Qty: 1 Container: Cut Tape | 3 |
|
$3.4200 | Buy Now |
|
DISTI #
4204035
|
element14 Asia-Pacific | , , 40, 2, 0.4MM RoHS: Compliant Min Qty: 1 Container: Each | 0 |
|
$1.0700 / $1.6100 | Buy Now |
|
DISTI #
255-2400-1-ND
|
DigiKey | CONN HDR 40POS SMD GOLD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3441 In Stock |
|
$0.8508 / $1.6200 | Buy Now |
|
DISTI #
AXT640124
|
Avnet Americas | Conn Board to Board HDR 40 POS 0.4mm Solder ST SMD Embossed T/R (Alt: AXT640124) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | 0 |
|
$0.9126 / $0.9730 | Buy Now |
|
DISTI #
769-AXT640124
|
Mouser Electronics | Board to Board & Mezzanine Connectors CONN HEADER F4S 38 POS 0.4mm RoHS: Compliant | 1975 |
|
$0.9200 / $1.6200 | Buy Now |
|
DISTI #
74613392
|
RS | BtoB CNF4S(0.4mm pitch) Min Qty: 3000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.8600 | RFQ |
|
|
Onlinecomponents.com | Conn Board to Board HDR 40 POS 0.4mm Solder ST SMD T/R RoHS: Compliant | Alternative Product Available |
|
$1.1700 / $1.4500 | Buy Now |
|
|
Bristol Electronics | 1000 |
|
RFQ | ||
|
|
Quest Components | CARD EDGE CONNECTOR, 40 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL | 10 |
|
$1.5612 / $1.6970 | Buy Now |
|
DISTI #
AXT640124
|
TTI | Board to Board & Mezzanine Connectors CONN HEADER F4S 38 POS 0.4mm RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 3000 In Stock |
|
$0.9500 | Buy Now |
Part Details for AXT640124
AXT640124 CAD Models
AXT640124 Part Data Attributes
|
|
AXT640124
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
AXT640124
Panasonic Electronic Components
Card Edge Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Finish Mating | GOLD OVER NICKEL | |
| Contact Finish Termination | Gold (Au) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | COPPER ALLOY | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 0.4 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 40 | |
| UL Flammability Code | 94V-0 |
