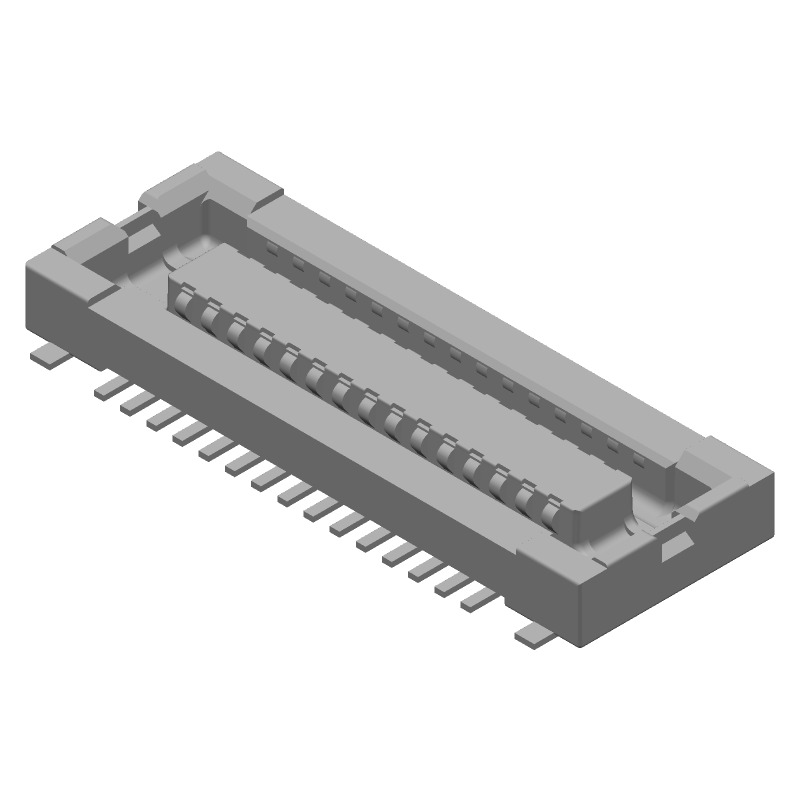

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AXT530124 by Panasonic Electronic Components
Results Overview of AXT530124 by Panasonic Electronic Components
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
AXT530124 Information
AXT530124 by Panasonic Electronic Components is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for AXT530124
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3516761
|
element14 Asia-Pacific | , , 30, 2 RoHS: Compliant Min Qty: 1 Container: Cut Tape | 46 |
|
$1.1100 / $1.1500 | Buy Now |
|
DISTI #
255-2410-1-ND
|
DigiKey | CONN SOCKET 30POS SMD GOLD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4614 In Stock |
|
$0.6189 / $1.2200 | Buy Now |
|
DISTI #
AXT530124
|
Avnet Americas | Mezzanine Connector, Receptacle, 0.4 mm, 2 Rows, 30 Contacts, Surface Mount, Copper - Tape and Reel (Alt: AXT530124) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 3000 |
|
$0.7839 / $0.8358 | Buy Now |
|
DISTI #
769-AXT530124
|
Mouser Electronics | Board to Board & Mezzanine Connectors CONN SOCKET F4S 30 POS 0.4mm RoHS: Compliant | 2305 |
|
$0.6940 / $1.1900 | Buy Now |
|
DISTI #
V72:2272_10819545
|
Arrow Electronics | Conn Board to Board RCP 30 POS 0.4mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2107 Container: Cut Strips | Americas - 3538 |
|
$0.4849 / $0.5426 | Buy Now |
|
DISTI #
74613370
|
RS | BtoB CNF4S(0.4mm pitch) Min Qty: 3000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.3300 / $1.4500 | RFQ |
|
|
Future Electronics | 30 Position 0.4 mm Pitch Dual Row Board to Board Surface Mount Socket Connector RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Tape/Mini-Reel | 1680Cut Tape/Mini-Reel |
|
$0.9150 / $1.1000 | Buy Now |
|
|
Future Electronics | 30 Position 0.4 mm Pitch Dual Row Board to Board Surface Mount Socket Connector RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.9150 | Buy Now |
|
|
Onlinecomponents.com | Conn Board to Board RCP 30 POS 0.4mm Solder ST SMD T/R RoHS: Compliant |
1771 In Stock |
|
$0.8750 / $0.9230 | Buy Now |
|
DISTI #
54846286
|
Verical | Conn Board to Board RCP 30 POS 0.4mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2107 | Americas - 3538 |
|
$0.4849 / $0.5344 | Buy Now |
Part Details for AXT530124
AXT530124 CAD Models
AXT530124 Part Data Attributes
|
|
AXT530124
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
AXT530124
Panasonic Electronic Components
Card Edge Connector, 30 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Body Breadth | 0.118 inch | |
| Body Depth | 0.038 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NICKEL GOLD | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.016 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 0.4 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 30 | |
| UL Flammability Code | 94V-0 |
AXT530124 Frequently Asked Questions (FAQ)
-
The recommended storage condition for the AXT530124 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 5°C to 30°C and humidity below 70%.
-
To prevent ESD damage, handle the AXT530124 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads with bare hands.
-
The maximum allowable voltage for the AXT530124 is 50V. Exceeding this voltage may cause damage to the component.
-
The AXT530124 is rated for operation up to 125°C. However, it's recommended to derate the component's performance and lifespan when operating in high-temperature environments (above 85°C).
-
Use a soldering iron with a temperature of 350°C or less, and a solder with a melting point of 220°C or higher. Avoid applying excessive heat or force, which can damage the component.
