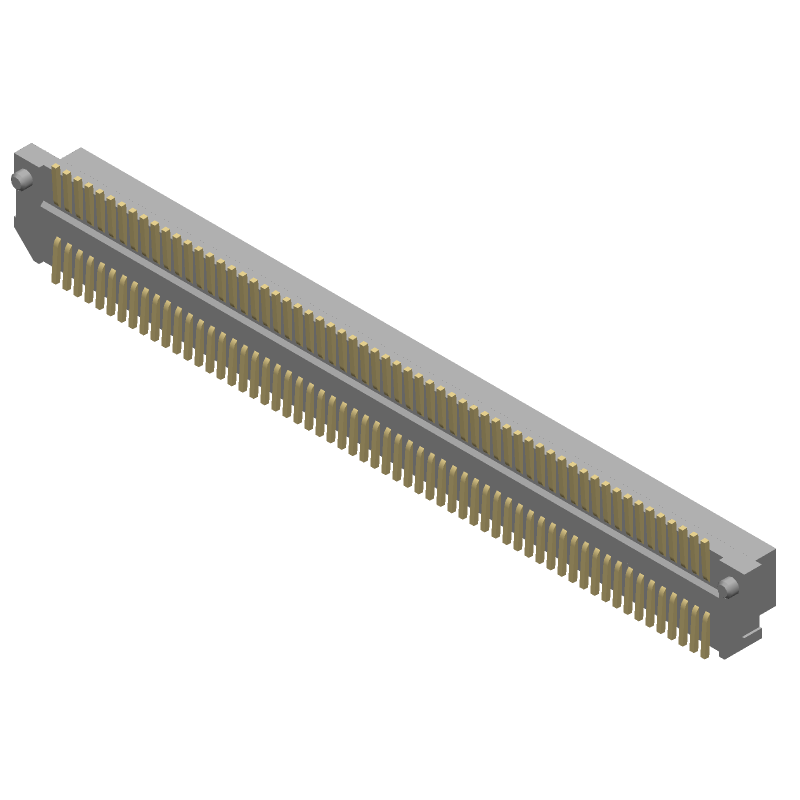

AXK6A2337YG by: Panasonic Electronic Components

CONN HEADER BRD/BRD .5MM 120POS

Part Details for AXK6A2337YG by Panasonic Electronic Components

Results Overview of AXK6A2337YG by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AXK6A2337YG Information

AXK6A2337YG by Panasonic Electronic Components is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for AXK6A2337YG

Part # Distributor Description Stock Price Buy
DISTI # AXK6A2337YG-ND
DigiKey CONN HDR 120POS SMD GOLD Min Qty: 1500 Lead time: 14 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,500 $4.4625
$4.4625 Buy Now
DISTI # 769-AXK6A2337YG
Mouser Electronics Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 120 POS 0.5mm RoHS: Compliant 839
  • 1 $8.2900
  • 10 $7.4700
  • 25 $7.0400
  • 50 $6.8500
  • 100 $6.6800
  • 250 $5.9500
  • 500 $5.5900
  • 1,000 $4.4700
  • 1,500 $4.4600
$4.4600 / $8.2900 Buy Now
Onlinecomponents.com Conn Board to Board PL 120 POS 0.5mm Solder ST SMD T/R RoHS: Compliant 0
  • 375 $12.8500
  • 750 $6.7800
  • 1,125 $4.6600
  • 1,500 $4.5700
$4.5700 / $12.8500 Buy Now
DISTI # 000000000007253935
Sager BOARD TO BOARD & MEZZANINE CONNECTORS Min Qty: 1500 0
  • 1,500 $5.9500
$5.9500 Buy Now
DISTI # AXK6A2337YG
Avnet Abacus MATAXK6A2337YG (Alt: AXK6A2337YG) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Abacus - 0
Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 1057
RFQ
LCSC 0.5mm 2 Standing paste SMDP0.5mm Board-to-Board and Backplane Connector ROHS 438
  • 1 $2.9156
  • 10 $2.5685
  • 30 $2.3920
  • 100 $2.0886
  • 500 $2.0041
  • 1,500 $1.9679
$1.9679 / $2.9156 Buy Now
Master Electronics Conn Board to Board PL 120 POS 0.5mm Solder ST SMD T/R RoHS: Compliant 0
  • 375 $12.8500
  • 750 $6.7800
  • 1,125 $4.6600
  • 1,500 $4.5700
$4.5700 / $12.8500 Buy Now
Win Source Electronics CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold 8981
  • 16 $3.6671
  • 39 $3.0089
  • 60 $2.9149
  • 82 $2.8209
  • 106 $2.7269
  • 142 $2.4448
$2.4448 / $3.6671 Buy Now

Part Details for AXK6A2337YG

AXK6A2337YG Part Data Attributes

Parametric Data
AXK6A2337YG Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
AXK6A2337YG Panasonic Electronic Components CONN HEADER BRD/BRD .5MM 120POS
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Reach Compliance Code unknown
Samacsys Manufacturer Panasonic
Body Breadth 0.15 inch
Body Depth 0.09 inch
Body Length 1.307 inch
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 60 mΩ
Contact Style CENTRONIC
Dielectric Withstanding Voltage 150VAC V
Durability 50 Cycles
Filter Feature NO
Insertion Force-Max 0.785 N
Insulation Resistance 1000000000 Ω
Mating Contact Pitch 0.02 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 0.5 A
Reference Standard UL
Terminal Pitch 0.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 120
UL Flammability Code 94V-0
Withdrawl Force-Min 0.0588 N

AXK6A2337YG Frequently Asked Questions (FAQ)

  • The recommended land pattern for AXK6A2337YG can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert.

  • Proper thermal management of AXK6A2337YG involves ensuring good thermal conductivity between the device and the PCB, using thermal vias, and providing adequate airflow. Consult the datasheet and application notes for specific guidance.

  • Handle AXK6A2337YG in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage from static electricity.

  • AXK6A2337YG is designed to withstand certain levels of vibration, but it's essential to consult the datasheet and application notes for specific vibration tolerance and mounting recommendations.

  • Consult the datasheet, application notes, and Panasonic Electronic Components' technical support resources for troubleshooting guidance. Common issues include incorrect voltage, inadequate thermal management, and poor PCB design.
