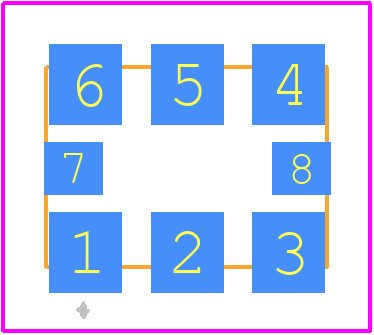

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AX7MBF1-819.2000T by Abracon Corporation
Results Overview of AX7MBF1-819.2000T by Abracon Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AX7MBF1-819.2000T Information
AX7MBF1-819.2000T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BQ2000TSN-B5 | Texas Instruments | Switch-mode multi-chemistry battery charger with dT/dt termination 8-SOIC -20 to 70 | |
| BQ2000TPWR | Texas Instruments | Switch-mode multi-chemistry battery charger with dT/dt termination 8-TSSOP -20 to 70 | |
| BQ2000TSN-B5TR | Texas Instruments | Switch-mode multi-chemistry battery charger with dT/dt termination 8-SOIC -20 to 70 |
Price & Stock for AX7MBF1-819.2000T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AX7MBF1-819.2000T
|
Avnet Americas | Oscillator, 819.2 MHz, 25 ppm, SMD, 7mm x 5mm, 2.5 V, CML, AX7 - Tape and Reel (Alt: AX7MBF1-819.2000T) RoHS: Not Compliant Min Qty: 250 Package Multiple: 250 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
RFQ |
Part Details for AX7MBF1-819.2000T
AX7MBF1-819.2000T CAD Models
AX7MBF1-819.2000T Part Data Attributes
|
|
AX7MBF1-819.2000T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
AX7MBF1-819.2000T
Abracon Corporation
XTAL OSC XO 819.2000MHZ CML SMD
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT | |
| Fall Time-Max | 0.35 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 8 | |
| Operating Frequency-Nom | 819.2 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CML | |
| Output Load | 50 OHM | |
| Package Equivalence Code | LCC8,.2X.28,100/83 | |
| Physical Dimension | 7.0mm x 5.0mm x 1.8mm | |
| Rise Time-Max | 0.35 ns | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | NICKEL GOLD |
