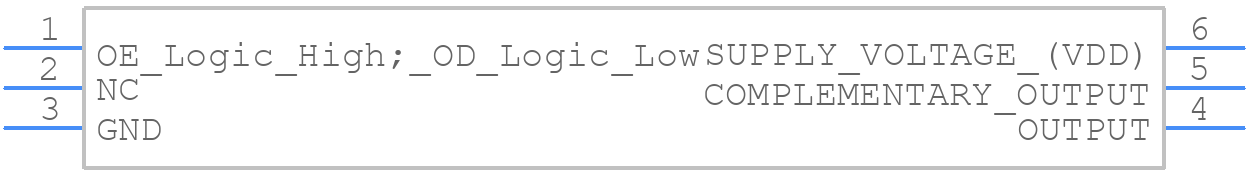

Part Symbol
-
Footprint
-

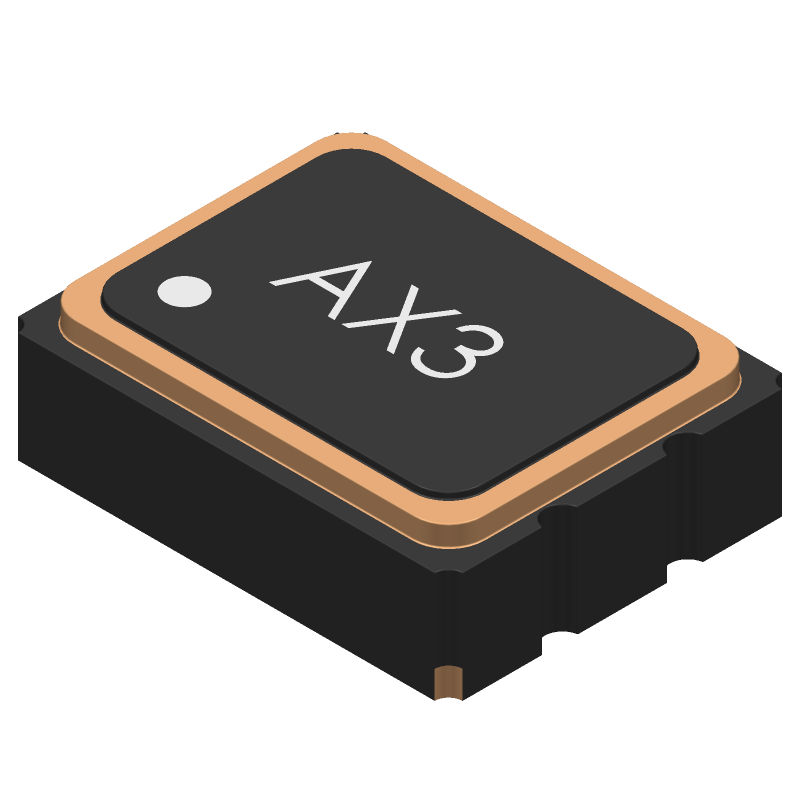

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AX3DCF1-156.2500T by Abracon Corporation
Results Overview of AX3DCF1-156.2500T by Abracon Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Healthcare
Communication and Networking
Entertainment and Gaming
Robotics and Drones
AX3DCF1-156.2500T Information
AX3DCF1-156.2500T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for AX3DCF1-156.2500T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87AK1308
|
Newark | Osc, 156.25Mhz, Lvds, Smd, 3.2Mm X 2.5Mm Rohs Compliant: Yes |Abracon AX3DCF1-156.2500T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$3.6200 / $5.1700 | Buy Now |
|
DISTI #
535-AX3DCF1-156.2500TCT-ND
|
DigiKey | XTAL OSC XO 156.25MHZ 1.8V LVDS Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.0227 / $4.9200 | Buy Now |
|
DISTI #
AX3DCF1-156.2500T
|
Avnet Americas | Oscillator, 156.25 MHz, 25 ppm, SMD, 3.2mm x 2.5mm, 1.8 V, LVDS, AX3 - Tape and Reel (Alt: AX3DCF1-156.2500T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$2.9158 / $3.1080 | Buy Now |
|
DISTI #
815-AX3DCF1156.2500T
|
Mouser Electronics | Standard Clock Oscillators Crystal Oscillator 3225 6-SMD 156.25MHz +/-25ppm -40°C ~ 85°C LVDS 1.8V RoHS: Compliant | 0 |
|
$3.0200 / $4.9200 | Order Now |
|
|
Onlinecomponents.com | Low Jitter 156.25MHz LVDS XO RoHS: Compliant | 0 |
|
$2.9800 / $6.2400 | Buy Now |
|
DISTI #
AX3DCF1-156.2500T
|
IBS Electronics | SMD CRYSTAL OSCILLATOR 156.25MHZ LVDS 1.8V 25PPM 6-PIN SMD T/R Min Qty: 1000 Package Multiple: 1 | 0 |
|
$3.6790 | Buy Now |
|
DISTI #
AX3DCF1-156.2500T
|
Avnet Abacus | Oscillator 15625 MHz 25 ppm SMD 32mm x 25mm 18 V LVDS AX3 - Tape and Reel (Alt: AX3DCF1-156.2500T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Oscillators | 502 |
|
RFQ |
Part Details for AX3DCF1-156.2500T
AX3DCF1-156.2500T CAD Models
AX3DCF1-156.2500T Part Data Attributes
|
|
AX3DCF1-156.2500T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
AX3DCF1-156.2500T
Abracon Corporation
XTAL OSC XO 156.25MHZ 1.8V LVDS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT | |
| Fall Time-Max | 0.5 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 156.25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVDS | |
| Output Load | 100 OHM | |
| Package Equivalence Code | LCC6,.1X.13,59/47 | |
| Physical Dimension | 3.2mm x 2.5mm x 1.0mm | |
| Rise Time-Max | 0.5 ns | |
| Supply Voltage-Max | 1.89 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
