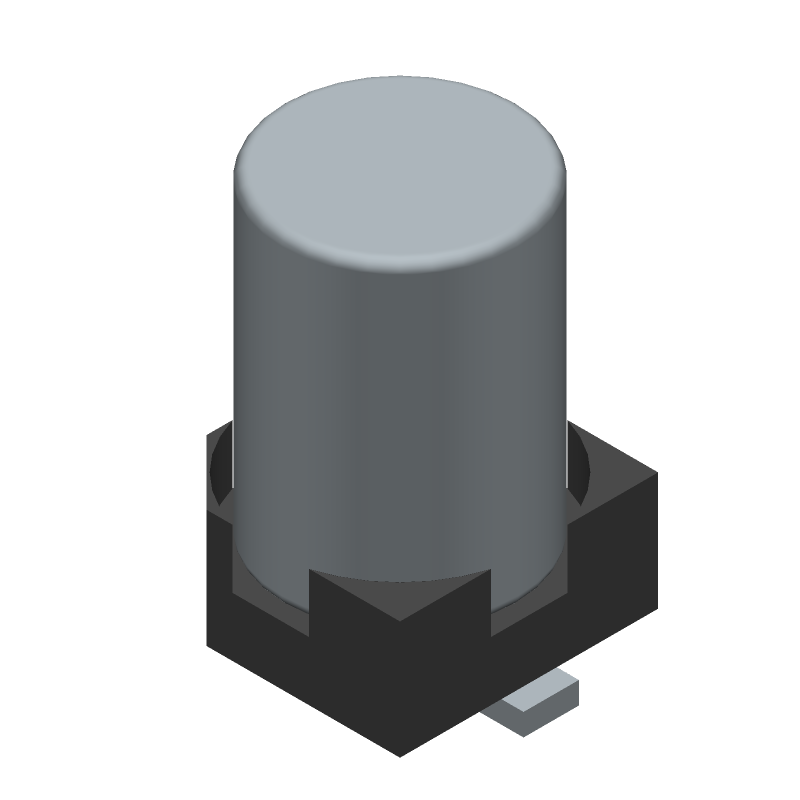

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AVE106M16A12T-F by Cornell Dubilier Electronics Inc
Results Overview of AVE106M16A12T-F by Cornell Dubilier Electronics Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
AVE106M16A12T-F Information
AVE106M16A12T-F by Cornell Dubilier Electronics Inc is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM2917M-8 | Texas Instruments | Frequency to Voltage Converter 8-SOIC -40 to 85 | |
| LM2917MX/NOPB | Texas Instruments | Frequency to Voltage Converter 14-SOIC -40 to 85 | |
| LM2917N-8/NOPB | Texas Instruments | Frequency to Voltage Converter 8-PDIP -40 to 85 |
Price & Stock for AVE106M16A12T-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01P5357
|
Newark | Aluminum Electrolytic Capacitor 10Uf 16V 20%, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:10Μf, Voltage(Dc):16V, Esr:33.16Ohm, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Range:Ave Series, Msl:- Rohs Compliant: Yes |Cornell Dubilier AVE106M16A12T-F RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
V72:2272_14683440
|
Arrow Electronics | Cap Aluminum Lytic 10uF 16V 20% (3 X 5.3mm) SMD 33.16 Ohm 0.014A 2000h 85°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 46 Weeks Date Code: 2226 Container: Cut Strips | Americas - 2 |
|
$0.1445 | Buy Now |
Part Details for AVE106M16A12T-F
AVE106M16A12T-F CAD Models
AVE106M16A12T-F Part Data Attributes
|
|
AVE106M16A12T-F
Cornell Dubilier Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
AVE106M16A12T-F
Cornell Dubilier Electronics Inc
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1313, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CORNELL DUBILIER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Samacsys Manufacturer | Cornell Dubilier | |
| Capacitance | 10 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 3 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 33160 mΩ | |
| Height | 5.3 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.003 mA | |
| Length | 3.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Ripple Current | 14 mA | |
| Size Code | 1313 | |
| Surface Mount | YES | |
| Tan Delta | 0.2 | |
| Terminal Finish | TIN | |
| Terminal Shape | FLAT | |
| Width | 3.3 mm |
AVE106M16A12T-F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds or less.
-
Yes, the AVE106M16A12T-F capacitor is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The maximum operating temperature range for the AVE106M16A12T-F is -55°C to +125°C (-133°F to +257°F).
-
Yes, the AVE106M16A12T-F capacitor is designed to withstand high-vibration environments and is suitable for use in applications with high mechanical stress.
-
Yes, the AVE106M16A12T-F capacitor is designed for high-reliability applications and meets the requirements of various military and aerospace specifications.
