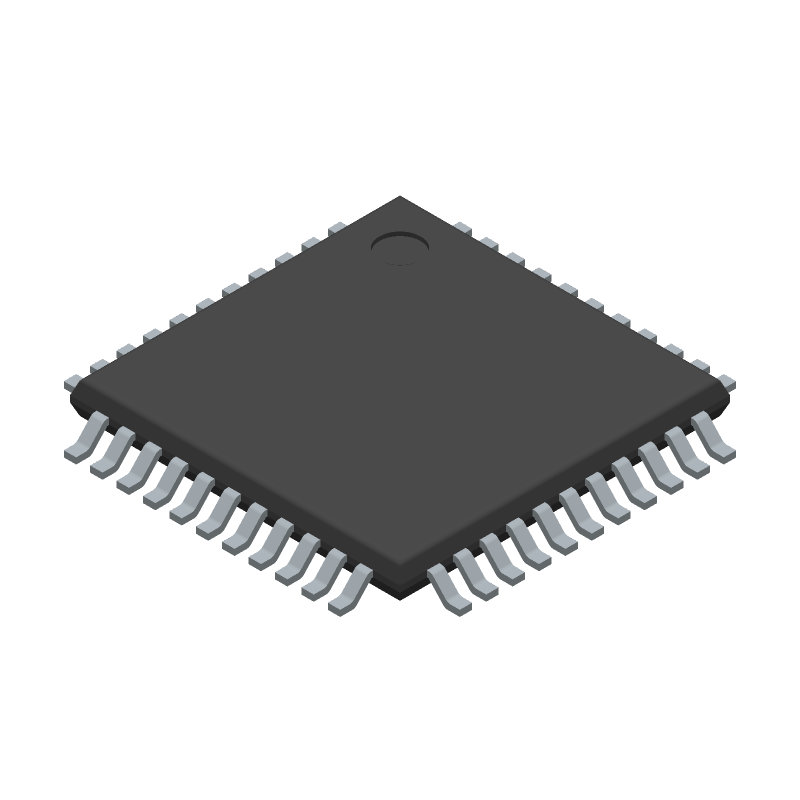

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATXMEGA32A4U-AU by Microchip Technology Inc
Results Overview of ATXMEGA32A4U-AU by Microchip Technology Inc
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
ATXMEGA32A4U-AU Information
ATXMEGA32A4U-AU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATXMEGA32A4U-AU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75T6235
|
Newark | Mcu, 8Bit, Avr Xmega, 32Mhz, Tqfp-44, Product Range:Avr Atxmega Family Atxmega A Series Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:32Kb, Ram Memory Size:4Kb, No. Of Pins:44Pins, Mcu Case Style:Tqfp, No. Of I/O S:34I/O S, Rohs Compliant: Yes |Microchip ATXMEGA32A4U-AU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2832 |
|
$3.1200 / $3.7700 | Buy Now |
|
DISTI #
ATXMEGA32A4U-AU-ND
|
DigiKey | IC MCU 8/16BIT 32KB FLASH 44TQFP Min Qty: 1 Lead time: 9 Weeks Container: Tray |
7851 In Stock |
|
$3.1200 / $3.7700 | Buy Now |
|
DISTI #
ATXMEGA32A4U-AU
|
Avnet Americas | MCU 8-bit/16-bit XMEGA AVR RISC 32KB Flash 1.8V/2.5V/3.3V 44-Pin TQFP - Trays (Alt: ATXMEGA32A4U-AU) RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 9 Weeks, 0 Days Container: Tray | 0 |
|
$3.1412 / $3.2479 | Buy Now |
|
DISTI #
556-ATXMEGA32A4U-AU
|
Mouser Electronics | 8-bit Microcontrollers - MCU AVR8 32KB FLSH 4KB RoHS: Compliant | 5024 |
|
$3.1200 / $3.7700 | Buy Now |
|
DISTI #
V99:2348_07152693
|
Arrow Electronics | MCU 8-bit/16-bit AVR RISC 32KB Flash 1.8V/2.5V/3.3V 44-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2347 | Americas - 302 |
|
$3.3760 | Buy Now |
|
DISTI #
ATXMEGA32A4U-AU
|
Microchip Technology Inc | 44TQFP, IND TEMP, GREEN, 1.6-3.6V, TQFP, Projected EOL: 2039-11-01 COO: Taiwan, Thailand ECCN: 5A992.c RoHS: Compliant Lead time: 9 Weeks, 0 Days Container: Tray |
8649 Alternates Available |
|
$2.7300 / $3.7700 | Buy Now |
|
|
Future Electronics | XMEGA Series 32 KB Flash 4 KB SRAM 32 MHz 8/16-Bit Microcontroller - TQFP-44 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Container: Tray | 160Tray |
|
$2.9000 / $3.1200 | Buy Now |
|
|
Onlinecomponents.com | MCU - 8-bit/16-bit AVR RISC - 32KB Flash - 4KB SRAM - 1KB EEPROM - 32MHz - -40°C to +85°C - 1.8V/2.5V/3.3V - 44-Pin TQFP - Tray RoHS: Compliant |
4550 In Stock |
|
$2.7700 / $3.8600 | Buy Now |
|
DISTI #
75700143
|
Verical | MCU 8-bit/16-bit AVR RISC 32KB Flash 1.8V/2.5V/3.3V 44-Pin TQFP Tray RoHS: Compliant Min Qty: 15 Package Multiple: 5 Date Code: 2344 | Americas - 4550 |
|
$3.3176 / $4.5412 | Buy Now |
|
DISTI #
76443032
|
Verical | MCU 8-bit/16-bit AVR RISC 32KB Flash 1.8V/2.5V/3.3V 44-Pin TQFP Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2347 | Americas - 302 |
|
$3.3760 | Buy Now |
Part Details for ATXMEGA32A4U-AU
ATXMEGA32A4U-AU CAD Models
ATXMEGA32A4U-AU Part Data Attributes
|
|
ATXMEGA32A4U-AU
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATXMEGA32A4U-AU
Microchip Technology Inc
IC MCU 8BIT 32KB FLASH 44TQFP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ACB, LQFP-44 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 1.8 V MINIMUM SUPPLY AT 12 MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G44 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of DMA Channels | 4 | |
| Number of External Interrupts | 34 | |
| Number of I/O Lines | 34 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 44 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TQFP | |
| Package Equivalence Code | TQFP44,.39SQ,31 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 4096 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 12 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for ATXMEGA32A4U-AU
This table gives cross-reference parts and alternative options found for ATXMEGA32A4U-AU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATXMEGA32A4U-AU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ATXMEGA32A4U-ANR | Microchip Technology Inc | $4.1100 | IC MCU 8BIT 32KB FLASH 44TQFP | ATXMEGA32A4U-AU vs ATXMEGA32A4U-ANR |
| ATXMEGA32A4U-AUR | Microchip Technology Inc | $3.6347 | IC MCU 8BIT 32KB FLASH 44TQFP | ATXMEGA32A4U-AU vs ATXMEGA32A4U-AUR |
| ATXMEGA32A4U-AN | Microchip Technology Inc | $3.4045 | IC MCU 8BIT 32KB FLASH 44TQFP | ATXMEGA32A4U-AU vs ATXMEGA32A4U-AN |
Resources and Additional Insights for ATXMEGA32A4U-AU
Reference Designs related to ATXMEGA32A4U-AU
ATXMEGA32A4U-AU Frequently Asked Questions (FAQ)
-
The ATXMEGA32A4U-AU can operate at a maximum clock frequency of 32 MHz.
-
The ATXMEGA32A4U-AU has 32 KB of flash memory.
-
The maximum current consumption of the ATXMEGA32A4U-AU is approximately 15 mA at 3.3V and 32 MHz.
-
No, the ATXMEGA32A4U-AU does not have built-in USB support. However, it can be implemented using the USART and a USB transceiver.
-
Yes, the ATXMEGA32A4U-AU is rated for operation in industrial temperature ranges (-40°C to 85°C) and can be used in harsh environments with proper design and component selection.
