ATTINY13A-SN Information

ATTINY13A-SN by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATTINY13A-SN

Part # Distributor Description Stock Price Buy
DISTI # 68T3504
Newark Microcontroller Mcu, 8 Bit, Attiny, 20Mhz, Soic-8, Product Range:Avr Attiny Family Attiny13 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:20Mhz, Program Memory Size:1Kb, No. Of Pins:8Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip ATTINY13A-SN RoHS: Compliant Min Qty: 810 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.9230
$0.9230 Buy Now
DISTI # ATTINY13A-SN-ND
DigiKey IC MCU 8BIT 1KB FLASH 8SOIC Min Qty: 1 Lead time: 5 Weeks Container: Tube 4533
In Stock
  • 1 $1.0500
  • 25 $0.9600
  • 100 $0.8700
$0.8700 / $1.0500 Buy Now
DISTI # ATTINY13A-SN
Avnet Americas MCU 8-bit ATtiny AVR RISC 1KB Flash 2.5V/3.3V/5V 8-Pin SOIC EIAJ - Rail/Tube (Alt: ATTINY13A-SN) RoHS: Compliant Min Qty: 720 Package Multiple: 90 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 1 $1.0500
  • 25 $0.9600
  • 100 $0.8700
$0.8700 / $1.0500 Buy Now
DISTI # 556-ATTINY13A-SN
Mouser Electronics 8-bit Microcontrollers - MCU 1KB FLASH 64B EE 64B SRAM 20MHz RoHS: Compliant 2932
  • 1 $1.0500
  • 25 $0.9600
  • 90 $0.8700
$0.8700 / $1.0500 Buy Now
DISTI # ATTINY13A-SN
Microchip Technology Inc 20MHz, SOIC, High Grade (+105C), Green, SOIJ, Projected EOL: 2039-09-29 COO: Philippines, Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 8025

Alternates Available
  • 1 $1.0500
  • 25 $0.9600
  • 100 $0.8700
  • 1,000 $0.8000
  • 5,000 $0.7700
$0.7700 / $1.0500 Buy Now
Onlinecomponents.com MCU - 8-bit AVR RISC - 1KB Flash - 2.5V/3.3V/5V - 8-Pin SOIJ - Tube RoHS: Compliant 8010 Factory Stock
  • 203 $1.3570
  • 405 $1.0200
  • 608 $0.9510
  • 810 $0.9320
$0.9320 / $1.3570 Buy Now
DISTI # ATTINY13A-SN
TME IC: AVR microcontroller, SO8-W, 1.8÷5.5VDC, Ext.inter: 6, Cmp: 1 Min Qty: 1 0
  • 1 $1.1700
  • 5 $1.1000
  • 25 $1.0100
  • 95 $0.9800
$0.9800 / $1.1700 RFQ
NAC 20MHz, SOIC, High Grade (+105C), Green - Package: 8 SOIJ .208in TUBE RoHS: Compliant Min Qty: 360 Package Multiple: 90 Container: Tube 0
  • 1 $1.1400
  • 100 $1.0300
  • 500 $0.9500
  • 1,000 $0.9200
$0.9200 / $1.1400 Buy Now
Master Electronics MCU - 8-bit AVR RISC - 1KB Flash - 2.5V/3.3V/5V - 8-Pin SOIJ - Tube RoHS: Compliant 8010 Factory Stock
  • 203 $1.3570
  • 405 $1.0200
  • 608 $0.9510
  • 810 $0.9320
$0.9320 / $1.3570 Buy Now

Part Details for ATTINY13A-SN

ATTINY13A-SN CAD Models

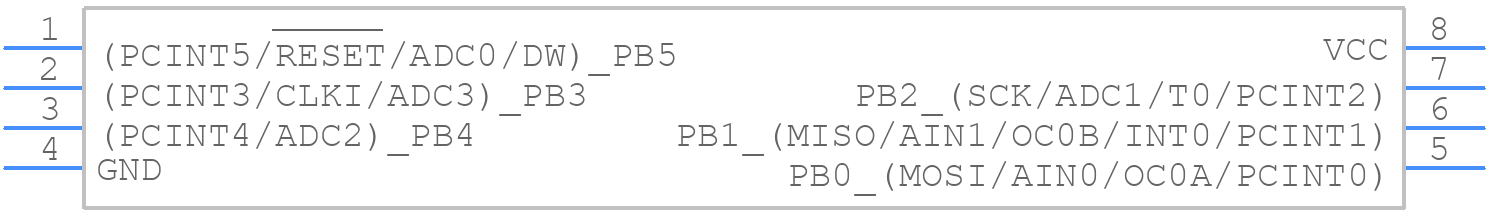

  • Part Symbol

    Part Symbol

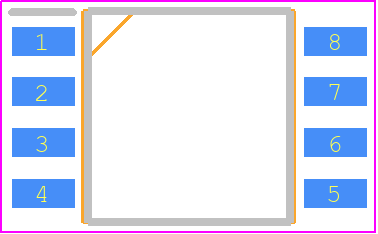

  • Footprint

    footprint

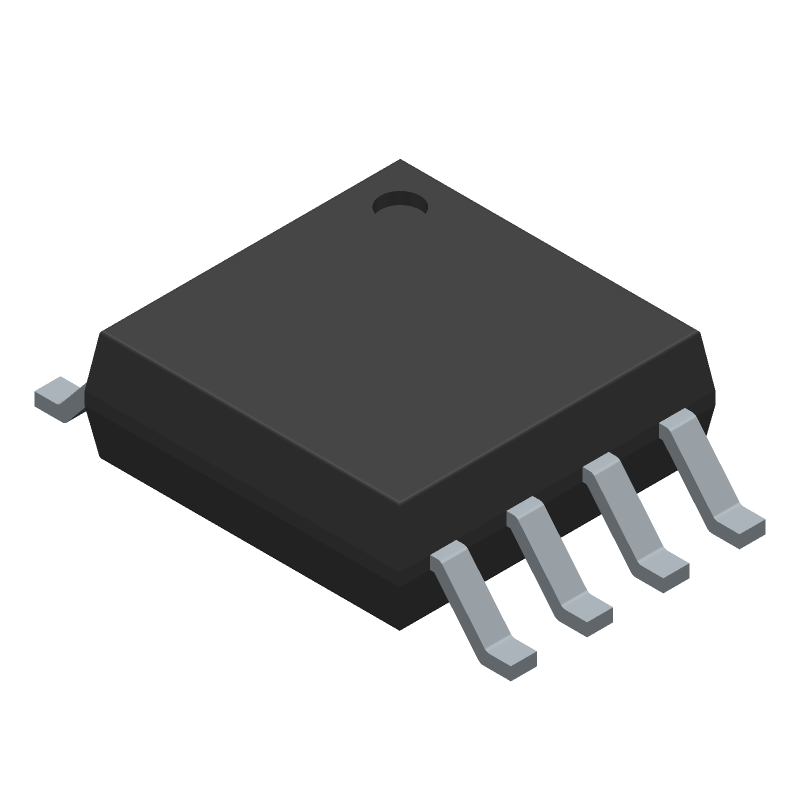

  • 3D Model
