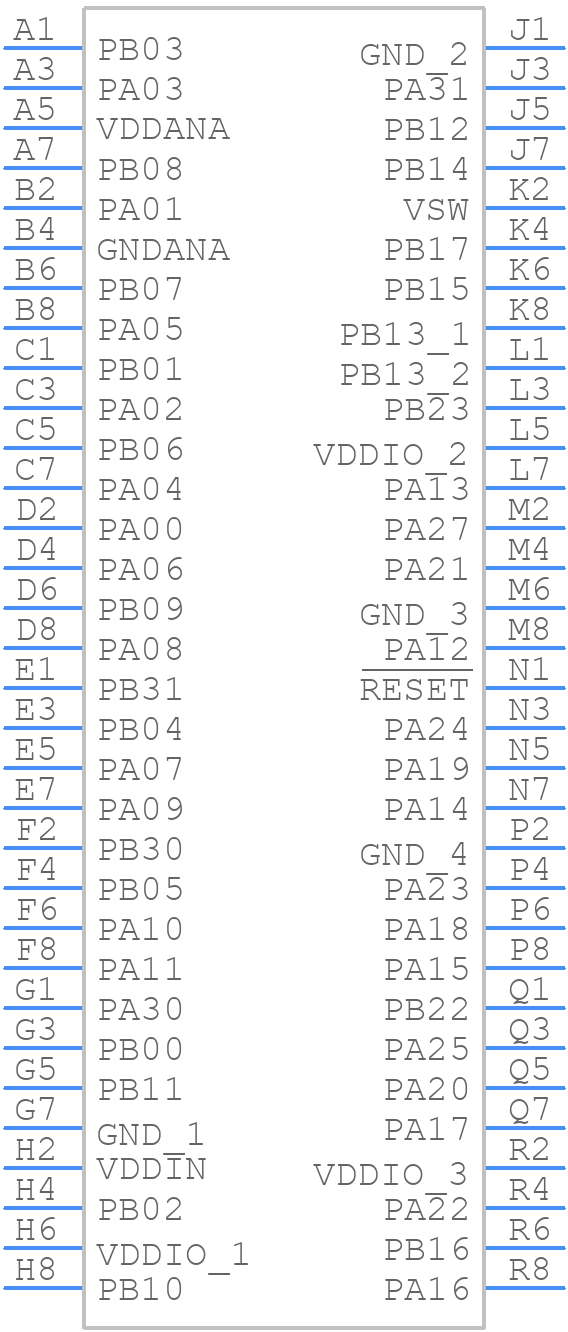

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATSAML21J18B-UUT by Microchip Technology Inc
Results Overview of ATSAML21J18B-UUT by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
ATSAML21J18B-UUT Information
ATSAML21J18B-UUT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATSAML21J18B-UUT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y4715
|
Newark | Wlcsp64, Ind Temp Green, 1.6-3.6V, 48Mhz, 64 Wlcsp 3.58X3.275X0.483Mm T/R Rohs Compliant: Yes |Microchip ATSAML21J18B-UUT RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
ATSAML21J18B-UUTCT-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 64WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$5.2200 | Buy Now |
|
DISTI #
556-ATSAML21J18B-UUT
|
Mouser Electronics | ARM Microcontrollers - MCU WLCSP64, IND TEMP GREEN, 1.6-3.6V, 48MHz RoHS: Compliant | 20000 |
|
$5.9600 | Buy Now |
|
DISTI #
ATSAML21J18B-UUT
|
Microchip Technology Inc | WLCSP64, IND TEMP GREEN, 1.6-3.6V, 48MHz, WLCSP, Projected EOL: 2044-12-22 COO: Taiwan ECCN: 5A992.c RoHS: Compliant Lead time: 10 Weeks, 0 Days Container: Reel |
0 Alternates Available |
|
$5.1200 / $7.0900 | Buy Now |
|
|
NAC | WLCSP64, IND TEMP GREEN, 1.6-3.6V, 48MHz - Package: 64 WLCSP 3.58x3.275x0.483mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 0 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 3259 |
|
RFQ | |
|
DISTI #
ATSAML21J18B-UUT
|
Avnet Silica | SMART ARMbased Microcontroller (Alt: ATSAML21J18B-UUT) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC MCU 32BIT 256KB FLASH 64WLCSP | 15000 |
|
RFQ | |
|
DISTI #
ATSAML21J18B-UUT
|
EBV Elektronik | SMART ARMbased Microcontroller (Alt: ATSAML21J18B-UUT) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 19697 |
|
RFQ |
Part Details for ATSAML21J18B-UUT
ATSAML21J18B-UUT CAD Models
ATSAML21J18B-UUT Part Data Attributes
|
|
ATSAML21J18B-UUT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATSAML21J18B-UUT
Microchip Technology Inc
IC MCU 32BIT 256KB FLASH 64WLCSP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | WLCSP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | NO | |
| CPU Family | CORTEX-M0+ | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | R-PBGA-B64 | |
| JESD-609 Code | e1 | |
| Length | 3.58 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 16 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 51 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 64 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA64,8X8,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| RAM (bytes) | 40960 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 0.483 mm | |
| Speed | 48 MHz | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 1.62 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | BOTTOM | |
| Width | 3.275 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for ATSAML21J18B-UUT
This table gives cross-reference parts and alternative options found for ATSAML21J18B-UUT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATSAML21J18B-UUT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ATSAML21J18B-AUT-SLL | Microchip Technology Inc | Check for Price | RISC Microcontroller, 32-Bit, FLASH, 48MHz, CMOS, PQFP64 | ATSAML21J18B-UUT vs ATSAML21J18B-AUT-SLL |
| ATSAML21J18B-AUT | Atmel Corporation | Check for Price | RISC Microcontroller, CMOS, | ATSAML21J18B-UUT vs ATSAML21J18B-AUT |
| ATSAML21J18A-MUT | Microchip Technology Inc | Check for Price | RISC Microcontroller | ATSAML21J18B-UUT vs ATSAML21J18A-MUT |
| ATSAML21J18B-UUT | Atmel Corporation | Check for Price | RISC Microcontroller, CMOS, | ATSAML21J18B-UUT vs ATSAML21J18B-UUT |
| ATSAML21J18A-AUT | Microchip Technology Inc | Check for Price | RISC Microcontroller | ATSAML21J18B-UUT vs ATSAML21J18A-AUT |
| ATSAML21J18B-MNT | Microchip Technology Inc | Check for Price | RISC MICROCONTROLLER | ATSAML21J18B-UUT vs ATSAML21J18B-MNT |
ATSAML21J18B-UUT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the ATSAML21J18B-UUT is 48 MHz.
-
The ATSAML21J18B-UUT has 256 KB of flash memory.
-
The operating voltage range of the ATSAML21J18B-UUT is 1.71V to 3.6V.
-
Yes, the ATSAML21J18B-UUT has a built-in USB 2.0 Full-Speed interface.
-
The power consumption of the ATSAML21J18B-UUT in sleep mode is typically around 5 μA.
