ATSAMD21G16B-MU by:

IC MCU 32BIT 64KB FLASH 48QFN

Part Details for ATSAMD21G16B-MU by Microchip Technology Inc

Results Overview of ATSAMD21G16B-MU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

ATSAMD21G16B-MU Information

ATSAMD21G16B-MU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATSAMD21G16B-MU

Part # Distributor Description Stock Price Buy
DISTI # 49Y1578
Newark 48Qfn,85C Temp, Green, 3.3V, 48Mhz 48 Vqfn 7X7X0.9Mm Tray Rohs Compliant: Yes |Microchip ATSAMD21G16B-MU RoHS: Compliant Min Qty: 416 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.3000
$2.3000 Buy Now
DISTI # ATSAMD21G16B-MU-ND
DigiKey IC MCU 32BIT 64KB FLASH 48QFN Min Qty: 1 Lead time: 21 Weeks Container: Tray 194
In Stock
  • 1 $2.7200
  • 25 $2.4600
  • 100 $2.2300
$2.2300 / $2.7200 Buy Now
DISTI # ATSAMD21G16B-MU
Avnet Americas MCU 32-Bit SAM D21G ARM Cortex M0+ RISC 64KB Flash 3.3V 48-Pin QFN EP Tray - Trays (Alt: ATSAMD21G16B-MU) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 21 Weeks, 0 Days Container: Tray 0
  • 1 $2.7200
  • 25 $2.4600
  • 100 $2.2300
$2.2300 / $2.7200 Buy Now
DISTI # 556-ATSAMD21G16B-MU
Mouser Electronics ARM Microcontrollers - MCU 48QFN,85C TEMP, GREEN, 3.3V, 48MHZ RoHS: Compliant 832
  • 1 $2.7100
  • 25 $2.4600
  • 100 $2.2300
  • 416 $2.2200
$2.2200 / $2.7100 Buy Now
DISTI # V99:2348_07152744
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 3.3V 48-Pin QFN EP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 2142 Americas - 418
  • 0 $2.4566
  • 1 $1.5450
  • 25 $1.5120
  • 100 $1.4750
  • 416 $1.4700
$1.4700 / $2.4566 Buy Now
DISTI # ATSAMD21G16B-MU
Microchip Technology Inc 48QFN,85C TEMP, GREEN, 3.3V, 48MHZ, VQFN, Projected EOL: 2039-10-23 COO: Philippines, Taiwan, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 21 Weeks, 0 Days Container: Tray 14

Alternates Available
  • 1 $2.7200
  • 25 $2.4600
  • 100 $2.2300
  • 1,000 $2.0500
  • 5,000 $1.9500
$1.9500 / $2.7200 Buy Now
Onlinecomponents.com MCU - 32-bit ARM Cortex M0+ RISC - 64KB Flash - 3.3V - 32-Pin QFN - Tray RoHS: Compliant 396 In Stock
416 Factory Stock
  • 10 $3.5800
  • 25 $3.5200
  • 50 $3.4700
  • 104 $3.4200
  • 208 $2.5600
  • 312 $2.3900
  • 416 $2.3500
$2.3500 / $3.5800 Buy Now
DISTI # 69764106
Verical MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 3.3V 48-Pin QFN EP Tray RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2328 Americas - 390
  • 20 $4.6554
  • 30 $4.4955
  • 50 $4.4317
  • 110 $4.2170
  • 210 $3.1566
$3.1566 / $4.6554 Buy Now
DISTI # SAMD21G16B-MU
TME IC: ARM microcontroller, QFN48, 1.62÷3.63VDC, Ext.inter: 16, Cmp: 2 Min Qty: 1 0
  • 1 $2.9900
  • 5 $2.8400
  • 25 $2.6400
  • 100 $2.4400
$2.4400 / $2.9900 RFQ
NAC 48QFN,85C TEMP, GREEN, 3.3V, 48MHZ - Package: 48 VQFN 7x7x0.9mm TRAY RoHS: Compliant Min Qty: 416 Package Multiple: 416 Container: Tray 0
  • 1 $2.9400
  • 100 $2.6500
  • 500 $2.4500
  • 1,000 $2.3900
$2.3900 / $2.9400 Buy Now
DISTI # ATSAMD21G16B-MU
Avnet Silica MCU 32Bit SAM D21G ARM Cortex M0 RISC 64KB Flash 33V 48Pin QFN EP Tray (Alt: ATSAMD21G16B-MU) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 23 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATSAMD21G16B-MU
EBV Elektronik MCU 32Bit SAM D21G ARM Cortex M0 RISC 64KB Flash 33V 48Pin QFN EP Tray (Alt: ATSAMD21G16B-MU) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 22 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 32-bit ARM Cortex M0+ RISC - 64KB Flash - 3.3V - 32-Pin QFN - Tray RoHS: Compliant 396 In Stock
416 Factory Stock
  • 10 $3.5800
  • 25 $3.5200
  • 50 $3.4700
  • 104 $3.4200
  • 208 $2.5600
  • 312 $2.3900
  • 416 $2.3500
$2.3500 / $3.5800 Buy Now

Part Details for ATSAMD21G16B-MU

ATSAMD21G16B-MU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

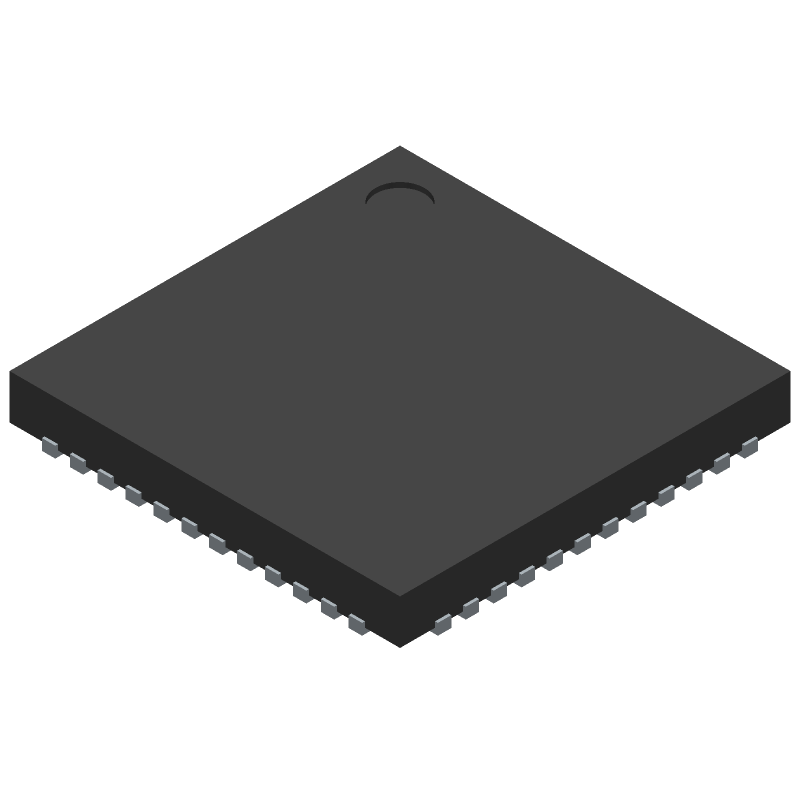

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATSAMD21G16B-MU Part Data Attributes

Parametric Data
ATSAMD21G16B-MU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATSAMD21G16B-MU Microchip Technology Inc IC MCU 32BIT 64KB FLASH 48QFN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description VQFN-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 21 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family Cortex-M0+
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-XQCC-N48
Length 7 mm
Low Power Mode YES
Number of DMA Channels 12
Number of External Interrupts 16
Number of I/O Lines 38
Number of Serial I/Os 6
Number of Terminals 48
Number of Timers 8
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC48,.27SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (bytes) 8192
RAM (words) 8192
ROM (words) 65536
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 0.9 mm
Speed 48 MHz
Supply Current-Max 92 mA
Supply Voltage-Max 3.63 V
Supply Voltage-Min 1.62 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATSAMD21G16B-MU

This table gives cross-reference parts and alternative options found for ATSAMD21G16B-MU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATSAMD21G16B-MU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATSAMD21G16B-MF Microchip Technology Inc $3.0350 IC MCU 32BIT 64KB FLASH 48QFN ATSAMD21G16B-MU vs ATSAMD21G16B-MF
ATSAMD21G16B-MZTVAO Microchip Technology Inc Check for Price RISC Microcontroller, 32-Bit, FLASH, 48MHz, CMOS ATSAMD21G16B-MU vs ATSAMD21G16B-MZTVAO
ATSAMD21G16B-MUT Microchip Technology Inc Check for Price IC MCU 32BIT 64KB FLASH 48QFN ATSAMD21G16B-MU vs ATSAMD21G16B-MUT

ATSAMD21G16B-MU Related Parts

ATSAMD21G16B-MU Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the ATSAMD21G16B-MU is 48 MHz.

  • The ATSAMD21G16B-MU has 16 KB of flash memory.

  • The operating voltage range of the ATSAMD21G16B-MU is 1.62V to 3.63V.

  • Yes, the ATSAMD21G16B-MU has built-in USB 2.0 Full-Speed Device and Embedded Host capabilities.

  • The power consumption of the ATSAMD21G16B-MU in sleep mode is typically around 9 μA/MHz.
