Part Details for ATSAM4S16BA-MU by Microchip Technology Inc

Results Overview of ATSAM4S16BA-MU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems

ATSAM4S16BA-MU Information

ATSAM4S16BA-MU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATSAM4S16BA-MU

Part # Distributor Description Stock Price Buy
DISTI # 06W2054
Newark Microcontroller Mcu, 32 Bit, Cortex-M4, 120Mhz, Qfn-64, Product Range:Sam 32 Family Sam 4S Series Microcontrollers, Device Core:Arm Cortex-M4, Data Bus Width:32 Bit, Operating Frequency Max:120Mhz, Program Memory Size:1Mb Rohs Compliant: Yes |Microchip ATSAM4S16BA-MU RoHS: Compliant Min Qty: 260 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $6.0400
$6.0400 Buy Now
DISTI # ATSAM4S16BA-MU-ND
DigiKey IC MCU 32BIT 1MB FLASH 64QFN Min Qty: 1 Lead time: 7 Weeks Container: Tray 298
In Stock
  • 1 $7.3400
  • 25 $6.6800
  • 100 $6.0400
$6.0400 / $7.3400 Buy Now
DISTI # ATSAM4S16BA-MU
Avnet Americas MCU 32-bit SAM4S ARM Cortex M4 RISC 1024KB Flash 1.8V/2.5V/3.3V 64-Pin QFN EP - Trays (Alt: ATSAM4S16BA-MU) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 1 $7.3400
  • 25 $6.6800
  • 100 $6.0400
$6.0400 / $7.3400 Buy Now
DISTI # 556-ATSAM4S16BA-MU
Mouser Electronics ARM Microcontrollers - MCU QFN, GREEN,IND TEMP,MRL A RoHS: Compliant 1133
  • 1 $7.3400
  • 25 $6.6800
  • 100 $6.0400
$6.0400 / $7.3400 Buy Now
DISTI # ATSAM4S16BA-MU
Microchip Technology Inc QFN, GREEN,IND TEMP,MRL A, VQFN, Projected EOL: 2039-11-08 COO: Taiwan, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray 1798

Alternates Available
  • 1 $7.3400
  • 25 $6.6800
  • 100 $6.0400
  • 1,000 $5.5200
  • 5,000 $5.3000
$5.3000 / $7.3400 Buy Now
Onlinecomponents.com Microcontroller - ARM Cortex-M4 - 32-Bit Single-Core - 120MHz - 47 I/O - 1MB (1M x 8) FLASH - 128K x 8 RAM - 1.6 to 3.6V - 64-QFN (9x9). RoHS: Compliant 65 In Stock
1560 Factory Stock
  • 5 $12.7900
  • 10 $12.6000
  • 25 $12.4100
  • 50 $12.2200
  • 65 $12.0400
  • 130 $7.4100
  • 195 $5.8600
  • 260 $5.7500
$5.7500 / $12.7900 Buy Now
DISTI # 69714559
Verical MCU 32-bit ARM Cortex M4 RISC 1MB Flash 1.2V/3.3V 64-Pin VQFN EP Tray RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2307 Americas - 65
  • 5 $16.6270
  • 10 $16.3800
  • 25 $16.1330
  • 50 $15.8860
  • 65 $15.6520
$15.6520 / $16.6270 Buy Now
NAC QFN, GREEN,IND TEMP,MRL A - Package: 64 VQFN 9x9x1mm TRAY RoHS: Compliant Min Qty: 260 Package Multiple: 260 Container: Tray 0
  • 1 $7.5700
  • 100 $6.8700
  • 500 $6.4400
  • 1,000 $6.2800
$6.2800 / $7.5700 Buy Now
DISTI # ATSAM4S16BA-MU
Avnet Silica MCU 32bit SAM4S ARM Cortex M4 RISC 1024KB Flash 18V25V33V 64Pin QFN EP (Alt: ATSAM4S16BA-MU) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATSAM4S16BA-MU
EBV Elektronik MCU 32bit SAM4S ARM Cortex M4 RISC 1024KB Flash 18V25V33V 64Pin QFN EP (Alt: ATSAM4S16BA-MU) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
LCSC ARM-M4 120MHz QFN-64-EP(9x9) Microcontrollers (MCU/MPU/SOC) ROHS 5
  • 1 $12.7364
  • 10 $12.4181
$12.4181 / $12.7364 Buy Now
Master Electronics Microcontroller - ARM Cortex-M4 - 32-Bit Single-Core - 120MHz - 47 I/O - 1MB (1M x 8) FLASH - 128K x 8 RAM - 1.6 to 3.6V - 64-QFN (9x9). RoHS: Compliant 65 In Stock
1560 Factory Stock
  • 5 $12.7900
  • 10 $12.6000
  • 25 $12.4100
  • 50 $12.2200
  • 65 $12.0400
  • 130 $7.4100
  • 195 $5.8600
  • 260 $5.7500
$5.7500 / $12.7900 Buy Now

Part Details for ATSAM4S16BA-MU

ATSAM4S16BA-MU CAD Models

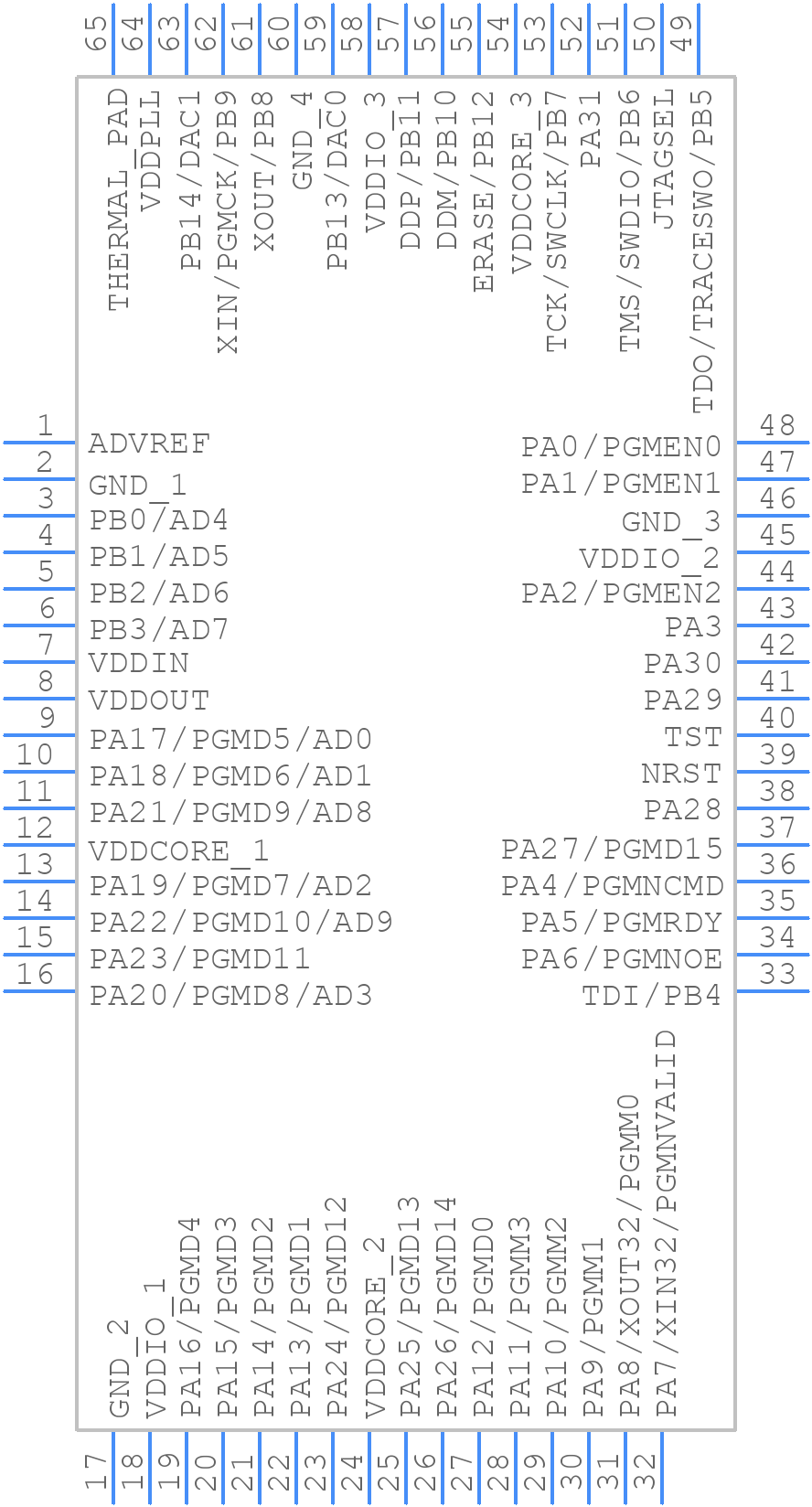

  • Part Symbol

    Part Symbol

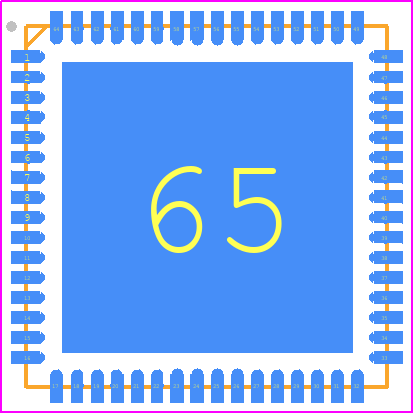

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATSAM4S16BA-MU Part Data Attributes

Parametric Data
ATSAM4S16BA-MU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATSAM4S16BA-MU Microchip Technology Inc RISC Microcontroller
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description QFN-64
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M4
Clock Frequency-Max 50 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-XQCC-N64
JESD-609 Code e3
Length 9 mm
Low Power Mode YES
Number of DMA Channels 22
Number of I/O Lines 47
Number of Terminals 64
Number of Timers 6
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status Not Qualified
RAM (bytes) 131072
RAM (words) 131072
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 0.9 mm
Speed 120 MHz
Supply Current-Max 25 mA
Supply Voltage-Max 1.32 V
Supply Voltage-Min 1.2 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
