Microcontrollers and Processors / Microcontrollers / ATSAM4E16CA-AU
Datasheets
ATSAM4E16CA-AU by:

IC MCU 32BIT 1MB FLASH 100LQFP

Part Details for ATSAM4E16CA-AU by Microchip Technology Inc

Results Overview of ATSAM4E16CA-AU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

ATSAM4E16CA-AU Information

ATSAM4E16CA-AU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATSAM4E16CA-AU

Part # Distributor Description Stock Price Buy
DISTI # 15AC6224
Newark Mcu, 32Bit, Cortex-M4, 120Mhz, Lqfp-100, Product Range:Sam32 Family Sam 4E Series Microcontrollers, Architecture:Arm Cortex-M4, No. Of Bits:32Bit, Cpu Speed:120Mhz, Program Memory Size:1Mb, Ram Memory Size:128Kb, No. Of Pins:100Pins, rohs Compliant: Yes |Microchip ATSAM4E16CA-AU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 61
  • 1 $9.7900
  • 10 $9.3500
  • 25 $8.9000
  • 50 $8.4800
  • 180 $8.0600
$8.0600 / $9.7900 Buy Now
DISTI # ATSAM4E16CA-AU-ND
DigiKey IC MCU 32BIT 1MB FLASH 100LQFP Min Qty: 1 Lead time: 7 Weeks Container: Tray 2187
In Stock
  • 1 $9.7900
  • 25 $8.9000
  • 100 $8.0600
$8.0600 / $9.7900 Buy Now
DISTI # 556-ATSAM4E16CA-AU
Mouser Electronics ARM Microcontrollers - MCU LQFP GREEN IND TEMPMRL A RoHS: Compliant 1255
  • 1 $9.7900
  • 25 $8.9000
  • 90 $8.0600
$8.0600 / $9.7900 Buy Now
DISTI # ATSAM4E16CA-AU
Microchip Technology Inc LQFP, GREEN, IND TEMP, MRLA, LQFP, Projected EOL: 2039-12-23 COO: Taiwan ECCN: 5A992.c RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray 42

Alternates Available
  • 1 $9.7900
  • 25 $8.9000
  • 100 $8.0600
  • 1,000 $7.3600
  • 5,000 $7.0700
$7.0700 / $9.7900 Buy Now
DISTI # 73927059
RS MCU, LQFP, green, IND TEMP, MRLA, 32-bit processor,1024 Kbytes flash Min Qty: 90 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk 0
  • 90 $9.2900
  • 180 $8.9200
  • 360 $8.6400
$8.6400 / $9.2900 RFQ
Onlinecomponents.com MCU - 32-bit ARM Cortex M4 RISC - 1MB Flash - 3.3V - 100-Pin LQFP - Tray RoHS: Compliant 55 In Stock
  • 5 $10.0900
  • 10 $9.3000
  • 23 $9.0400
  • 45 $8.6200
  • 68 $8.4800
  • 90 $7.8600
$7.8600 / $10.0900 Buy Now
DISTI # 67038131
Verical MCU 32-bit ARM Cortex M4 RISC 1MB Flash 1.2V/2.5V/3.3V 100-Pin LQFP Tray RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2310 Americas - 55
  • 5 $13.1170
  • 10 $12.0900
  • 25 $11.7520
  • 45 $11.2060
  • 70 $11.0240
$11.0240 / $13.1170 Buy Now
DISTI # ATSAM4E16CA-AU
IBS Electronics MCU 32-BIT SAM4E ARM CORTEX M4 DSP/RISC/THUMB-2 1024KB FLASH 1.2/3.3V 100-PIN LQFP TRAY Min Qty: 5 Package Multiple: 1 55
  • 5 $13.1170
  • 10 $12.0900
  • 23 $11.7520
  • 45 $11.2060
  • 68 $11.0240
  • 90 $10.2180
$10.2180 / $13.1170 Buy Now
NAC LQFP, GREEN, IND TEMP, MRLA - Package: 100 LQFP 14x14x1.4mm TRAY RoHS: Compliant Min Qty: 90 Package Multiple: 90 Container: Tray 0
  • 1 $10.0600
  • 100 $9.1200
  • 500 $8.5500
  • 1,000 $8.3400
$8.3400 / $10.0600 Buy Now
DISTI # ATSAM4E16CA-AU
Avnet Silica ARM MCU SAM4E Series SAM 32 Family SAM 4E Series Microcontrollers ARM CortexM4 32 bit 120 MHz (Alt: ATSAM4E16CA-AU) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATSAM4E16CA-AU
EBV Elektronik ARM MCU SAM4E Series SAM 32 Family SAM 4E Series Microcontrollers ARM CortexM4 32 bit 120 MHz (Alt: ATSAM4E16CA-AU) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 32-bit ARM Cortex M4 RISC - 1MB Flash - 3.3V - 100-Pin LQFP - Tray RoHS: Compliant 55 In Stock
  • 5 $10.0900
  • 10 $9.3000
  • 23 $9.0400
  • 45 $8.6200
  • 68 $8.4800
  • 90 $7.8600
$7.8600 / $10.0900 Buy Now

Part Details for ATSAM4E16CA-AU

ATSAM4E16CA-AU CAD Models

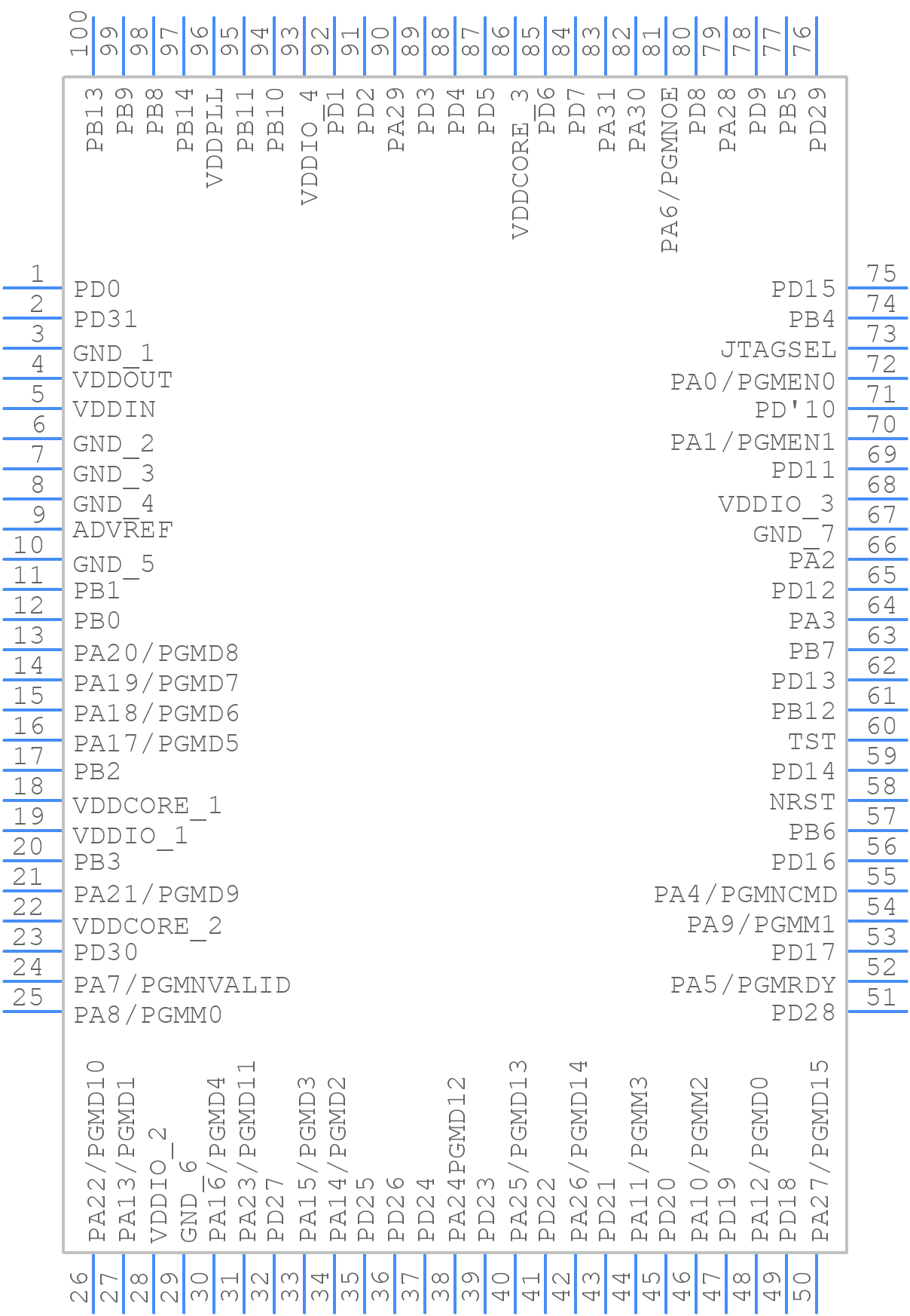

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATSAM4E16CA-AU Part Data Attributes

Parametric Data
ATSAM4E16CA-AU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATSAM4E16CA-AU Microchip Technology Inc IC MCU 32BIT 1MB FLASH 100LQFP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description LQFP-100
Reach Compliance Code compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M4F
Clock Frequency-Max 20 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 30
Number of I/O Lines 79
Number of Serial I/Os 2
Number of Terminals 100
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.55SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 131072
RAM (words) 32768
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 120 MHz
Supply Voltage-Max 1.32 V
Supply Voltage-Min 1.2 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATSAM4E16CA-AU

This table gives cross-reference parts and alternative options found for ATSAM4E16CA-AU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATSAM4E16CA-AU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATSAM4E16CA-AUR Microchip Technology Inc $10.1100 IC MCU 32BIT 1MB FLASH 100LQFP ATSAM4E16CA-AU vs ATSAM4E16CA-AUR
ATSAM4E16CB-AN Microchip Technology Inc $8.4088 IC MCU 32BIT 1MB FLASH 100LQFP ATSAM4E16CA-AU vs ATSAM4E16CB-AN
ATSAM4E16CA-AN Microchip Technology Inc $9.1902 IC MCU 32BIT 1MB FLASH 100LQFP ATSAM4E16CA-AU vs ATSAM4E16CA-AN
ATSAM4E16CA-ANR Microchip Technology Inc Check for Price IC MCU 32BIT 1MB FLASH 100LQFP ATSAM4E16CA-AU vs ATSAM4E16CA-ANR
Part Number Manufacturer Composite Price Description Compare
ATSAM4E16CB-AN Atmel Corporation Check for Price RISC Microcontroller, CMOS, ATSAM4E16CA-AU vs ATSAM4E16CB-AN
ATSAM4E16CB-ANR Atmel Corporation Check for Price RISC Microcontroller, CMOS, ATSAM4E16CA-AU vs ATSAM4E16CB-ANR
ATSAM4E16CA-ANR Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PQFP100, ATSAM4E16CA-AU vs ATSAM4E16CA-ANR
ATSAM4E16CA-AN Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PQFP100, ATSAM4E16CA-AU vs ATSAM4E16CA-AN
ATSAM4E16CA-AUR Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PQFP100, 14 X 14 MM, 1.40 MM HEIGHT, 0.50 MM PITCH, MS-026, LQFP-100 ATSAM4E16CA-AU vs ATSAM4E16CA-AUR
ATSAM4E16CA-AU Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PQFP100, ATSAM4E16CA-AU vs ATSAM4E16CA-AU
ATSAM4E16CA-CU Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PBGA100, ATSAM4E16CA-AU vs ATSAM4E16CA-CU
ATSAM4E16CB-CN Atmel Corporation Check for Price RISC Microcontroller, CMOS, ATSAM4E16CA-AU vs ATSAM4E16CB-CN
ATSAM4E16CA-CUR Atmel Corporation Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 120MHz, CMOS, PBGA100, 9 X 9 MM, 1.10 MM HEIGHT, 0.80 MM PITCH, MO-275DDAC-2, TFBGA-100 ATSAM4E16CA-AU vs ATSAM4E16CA-CUR

ATSAM4E16CA-AU Related Parts

ATSAM4E16CA-AU Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the ATSAM4E16CA-AU is 120 MHz.

  • The ATSAM4E16CA-AU has 1 MB of flash memory.

  • The operating voltage range of the ATSAM4E16CA-AU is 1.7V to 3.6V.

  • Yes, the ATSAM4E16CA-AU has a built-in USB interface that supports USB 2.0 Full-Speed.

  • The power consumption of the ATSAM4E16CA-AU in sleep mode is typically around 10 μA.
