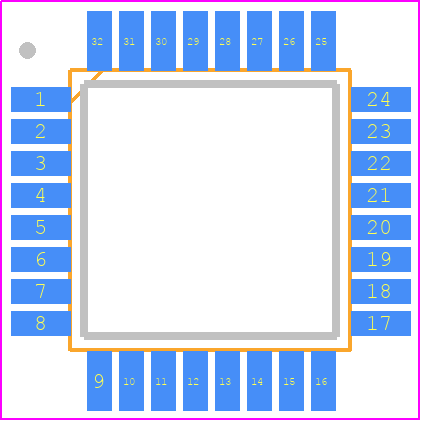

Footprint
-

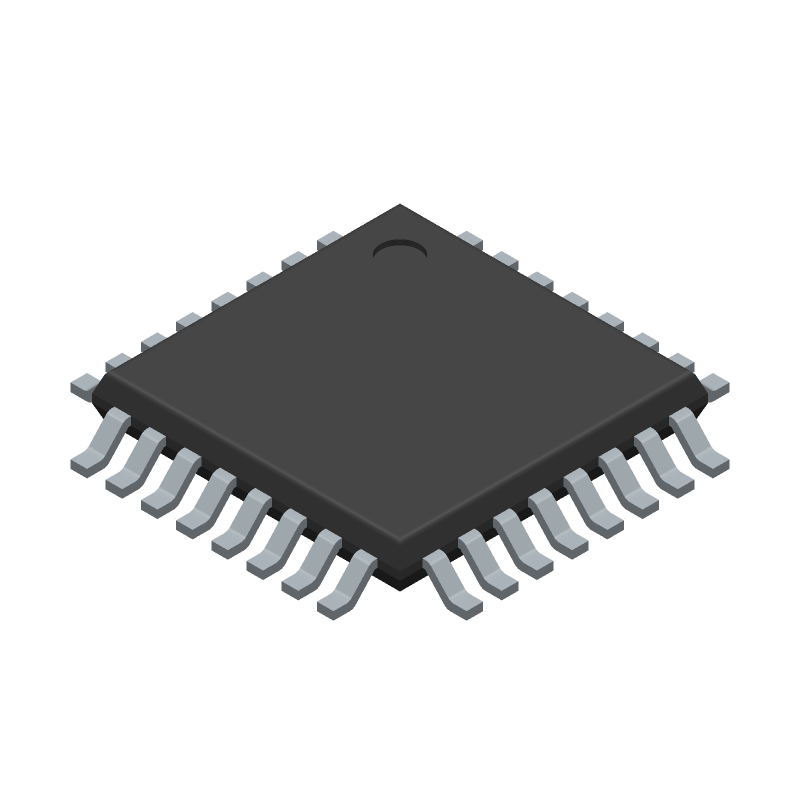

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATMEGA8U2-AUR by Microchip Technology Inc
Results Overview of ATMEGA8U2-AUR by Microchip Technology Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ATMEGA8U2-AUR Information
ATMEGA8U2-AUR by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATMEGA8U2-AUR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68T3216
|
Newark | 16 Mhz, Tqfp, Ind Temp, Gree 32 Tqfp 7X7X1Mm T/R Rohs Compliant: Yes |Microchip ATMEGA8U2-AUR RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$2.5500 | Buy Now |
|
DISTI #
ATMEGA8U2-AURCT-ND
|
DigiKey | IC MCU 8BIT 8KB FLASH 32TQFP Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
19445 In Stock |
|
$2.4700 / $2.9700 | Buy Now |
|
DISTI #
ATMEGA8U2-AUR
|
Avnet Americas | MCU 8-bit ATmega AVR RISC 8KB Flash 3.3V/5V 32-Pin LQFP T/R - Tape and Reel (Alt: ATMEGA8U2-AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$2.4917 / $2.5763 | Buy Now |
|
DISTI #
556-ATMEGA8U2-AUR
|
Mouser Electronics | 8-bit Microcontrollers - MCU USB 8K FLASH 16 MHz RoHS: Compliant | 1670 |
|
$2.4700 / $2.9700 | Buy Now |
|
DISTI #
ATMEGA8U2-AUR
|
Microchip Technology Inc | 16 MHz, TQFP, Ind Temp, Gree, TQFP, Projected EOL: 2044-12-22 COO: Philippines ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
2000 Alternates Available |
|
$2.1600 / $2.9700 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 8000 Factory Stock |
|
$2.3500 / $6.4300 | Buy Now |
|
|
NAC | 16 MHz, TQFP, Ind Temp, Gree - Package: 32 TQFP 7x7x1mm T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | 0 |
|
$2.5700 / $3.1000 | Buy Now |
|
DISTI #
ATMEGA8U2-AUR
|
Avnet Silica | MCU 8bit ATmega AVR RISC 8KB Flash 33V5V 32Pin LQFP TR (Alt: ATMEGA8U2-AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 8000 Factory Stock |
|
$2.3500 / $6.4300 | Buy Now |
Part Details for ATMEGA8U2-AUR
ATMEGA8U2-AUR CAD Models
ATMEGA8U2-AUR Part Data Attributes
|
|
ATMEGA8U2-AUR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATMEGA8U2-AUR
Microchip Technology Inc
IC MCU 8BIT 8KB FLASH 32TQFP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | NO | |
| Additional Feature | OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHz | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | YES | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G32 | |
| Length | 7 mm | |
| Low Power Mode | YES | |
| Number of External Interrupts | 21 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 32 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TQFP | |
| Package Equivalence Code | TQFP32,.35SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 512 | |
| ROM (words) | 8192 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 21 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
ATMEGA8U2-AUR Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the ATMEGA8U2-AUR is 16 MHz.
-
Yes, the ATMEGA8U2-AUR has a built-in USB controller and can be used as a USB device.
-
The ATMEGA8U2-AUR has 8 KB of flash memory.
-
Yes, the ATMEGA8U2-AUR can be used with an external crystal oscillator, but it also has an internal oscillator that can be used.
-
The operating voltage range for the ATMEGA8U2-AUR is 2.7V to 5.5V.
