Microcontrollers and Processors / Microcontrollers / ATMEGA168V-10AUR
Datasheets
ATMEGA168V-10AUR by:

IC MCU 8BIT 16KB FLASH 32TQFP

Part Details for ATMEGA168V-10AUR by Microchip Technology Inc

Results Overview of ATMEGA168V-10AUR by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Aerospace and Defense Healthcare Entertainment and Gaming Robotics and Drones

ATMEGA168V-10AUR Information

ATMEGA168V-10AUR by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATMEGA168V-10AUR

Part # Distributor Description Stock Price Buy
DISTI # 15AC6067
Newark Mcu, 8Bit, Atmega, 10Mhz, Tqfp-32, Product Range:Avr Atmega Family Atmega16X Series Microcontroller, Cpu Speed:10Mhz, Program Memory Size:16Kb, Ram Memory Size:1Kb, No. Of Pins:32Pins, Mcu Case Style:Tqfp, No. Of I/O S:23I/O S, Rohs Compliant: Yes |Microchip ATMEGA168V-10AUR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1236
  • 1 $3.6800
$3.6800 Buy Now
DISTI # 68T2737
Newark 10Mhz, Tqfp, Ind Temp, Green, 1.8V, T&r 32 Tqfp 7X7X1Mm T/R Rohs Compliant: Yes |Microchip ATMEGA168V-10AUR RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $3.3000
$3.3000 Buy Now
DISTI # ATMEGA168V-10AURCT-ND
DigiKey IC MCU 8BIT 16KB FLASH 32TQFP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 23532
In Stock
  • 1 $3.8600
  • 25 $3.5400
  • 100 $3.2000
  • 2,000 $3.2000
$3.2000 / $3.8600 Buy Now
DISTI # ATMEGA168V-10AUR
Avnet Americas 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega16X Series Microcontrollers, AVR - Tape and Reel (Alt: ATMEGA168V-10AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 2,000 $3.3211
  • 4,000 $3.2938
  • 8,000 $3.2665
  • 12,000 $3.2393
  • 16,000 $3.2121
$3.2121 / $3.3211 Buy Now
DISTI # 556-ATMEGA168V-10AUR
Mouser Electronics 8-bit Microcontrollers - MCU AVR,16KB FLASH,10MHZ IND TEMP 1.8V RoHS: Compliant 684
  • 1 $3.8600
  • 25 $3.5400
  • 100 $3.2000
$3.2000 / $3.8600 Buy Now
DISTI # ATMEGA168V-10AUR
Microchip Technology Inc 10MHZ, TQFP, IND TEMP, GREEN, 1.8V, T&R, TQFP, Projected EOL: 2039-11-05 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 1212

Alternates Available
  • 1 $3.8600
  • 25 $3.5400
  • 100 $3.2000
  • 1,000 $2.9400
  • 5,000 $2.8100
$2.8100 / $3.8600 Buy Now
Onlinecomponents.com MCU - 8-bit AVR RISC - 16KB Flash - 2.5V/3.3V/5V - 32-Pin TQFP - Tape&Reel RoHS: Compliant 2000 In Stock
  • 5 $8.7500
  • 100 $8.6200
  • 250 $8.4900
  • 500 $8.3600
  • 1,000 $4.4300
  • 1,500 $3.1200
  • 2,000 $3.0500
$3.0500 / $8.7500 Buy Now
DISTI # 69916570
Verical MCU 8-bit AVR RISC 16KB Flash 3.3V/5V 32-Pin TQFP T/R RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2332 Americas - 2000
  • 10 $11.0759
  • 100 $10.5379
  • 250 $10.2909
  • 500 $9.8818
  • 1,000 $5.1512
$5.1512 / $11.0759 Buy Now
DISTI # ATMEGA168V-10AUR
IBS Electronics RISC MICROCONTROLLER 8-BIT FLASH AVR RISC CPU 20MHZ CMOS PQFP32 Min Qty: 5 Package Multiple: 1 2000
  • 5 $11.3750
  • 100 $11.2060
  • 250 $11.0370
  • 500 $10.8680
  • 1,000 $5.7590
  • 1,500 $4.0560
  • 2,000 $3.9650
$3.9650 / $11.3750 Buy Now
NAC 10MHZ, TQFP, IND TEMP, GREEN, 1.8V, T&R - Package: 32 TQFP 7x7x1mm T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 0
  • 1 $4.0000
  • 100 $3.6300
  • 500 $3.4000
  • 1,000 $3.3200
$3.3200 / $4.0000 Buy Now
DISTI # ATMEGA168V-10AUR
Avnet Silica 8 Bit MCU Low Power High Performance AVR ATmega Family ATmega16X Series Microcontrollers AVR (Alt: ATMEGA168V-10AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC MCU 8BIT 16KB FLASH 32TQFP 4000
RFQ
DISTI # ATMEGA168V-10AUR
EBV Elektronik 8 Bit MCU Low Power High Performance AVR ATmega Family ATmega16X Series Microcontrollers AVR (Alt: ATMEGA168V-10AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Greenchips   Date Code: 23+/PH 4000
  • 1 $2.5600
  • 100 $2.5600
  • 1,000 $2.3520
  • 10,000 $2.2476
$2.2476 / $2.5600 Buy Now
LCSC AVR 10MHz TQFP-32(7x7) Microcontrollers (MCU/MPU/SOC) ROHS 8
  • 1 $8.8289
  • 10 $7.8814
  • 30 $7.3036
  • 100 $6.8193
$6.8193 / $8.8289 Buy Now
Master Electronics MCU - 8-bit AVR RISC - 16KB Flash - 2.5V/3.3V/5V - 32-Pin TQFP - Tape&Reel RoHS: Compliant 2000 In Stock
  • 5 $8.7500
  • 100 $8.6200
  • 250 $8.4900
  • 500 $8.3600
  • 1,000 $4.4300
  • 1,500 $3.1200
  • 2,000 $3.0500
$3.0500 / $8.7500 Buy Now
Win Source Electronics IC MCU 8BIT 16KB FLASH 32TQFP 3680
  • 9 $7.0785
  • 20 $5.8080
  • 31 $5.6265
  • 43 $5.4451
  • 55 $5.2635
  • 74 $4.7190
$4.7190 / $7.0785 Buy Now

Part Details for ATMEGA168V-10AUR

ATMEGA168V-10AUR CAD Models

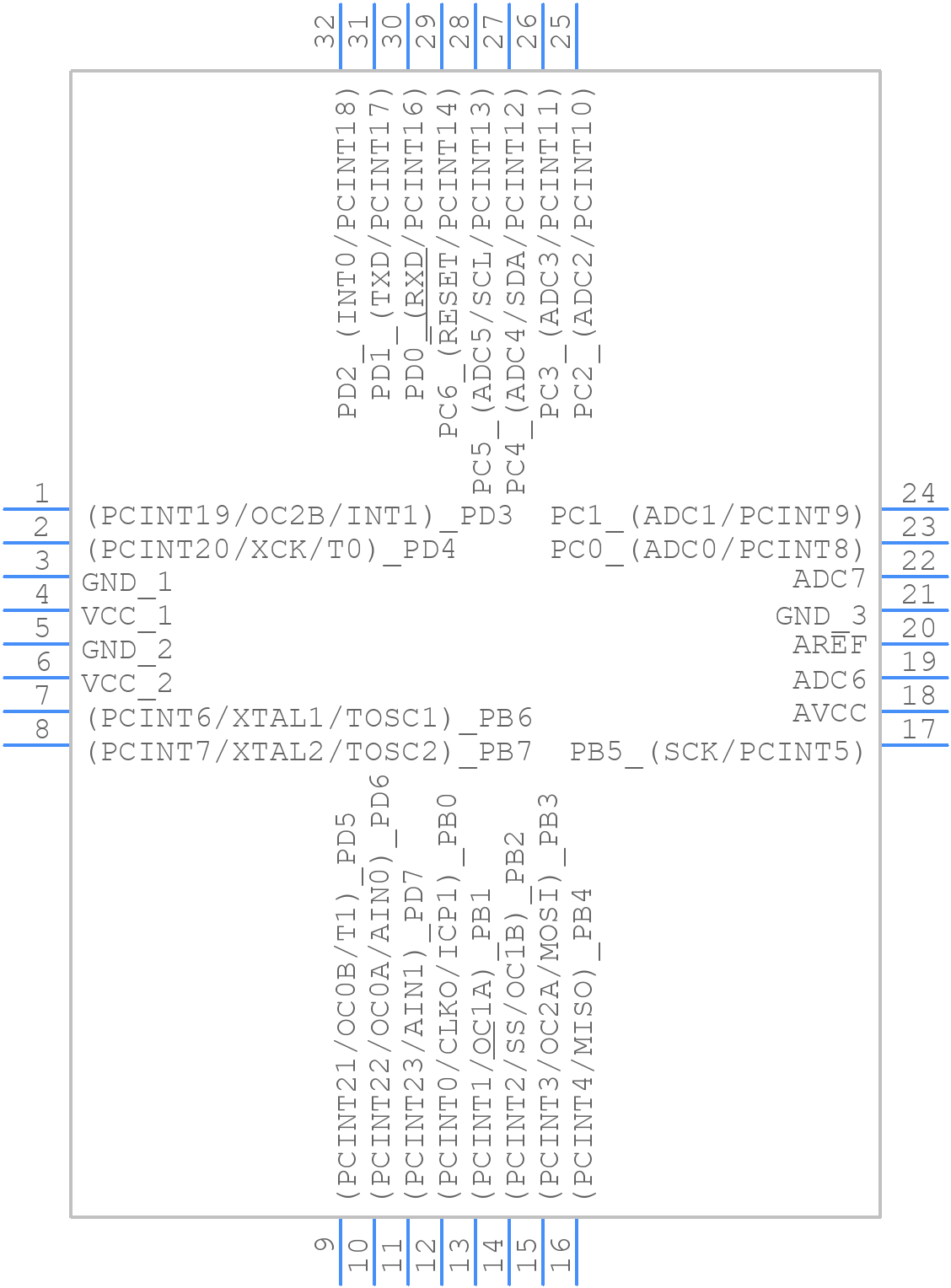

  • Part Symbol

    Part Symbol

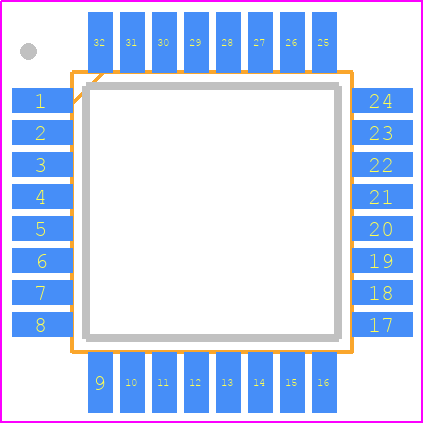

  • Footprint

    footprint

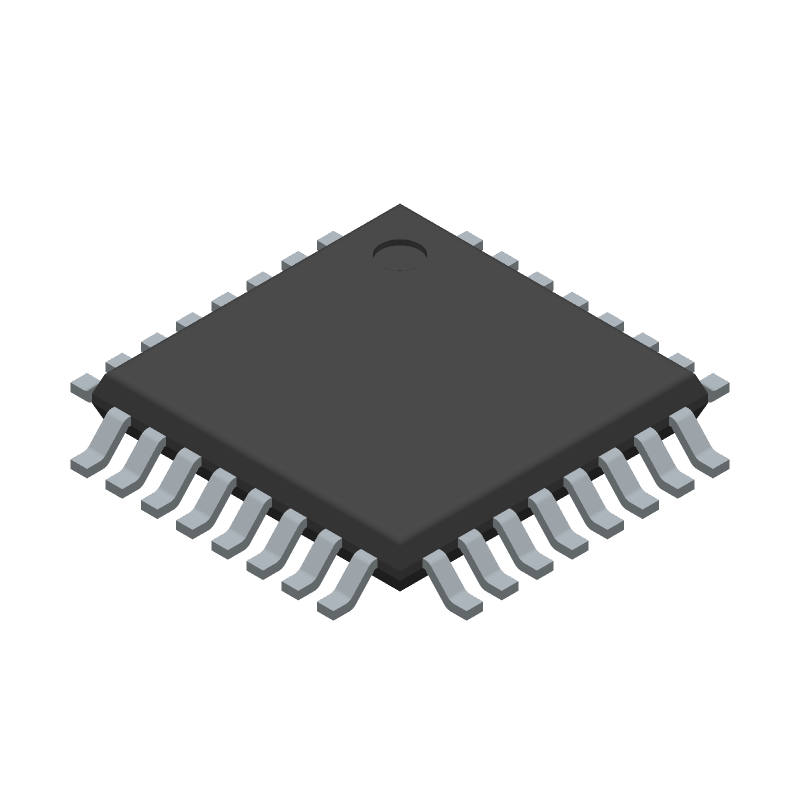

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATMEGA168V-10AUR Part Data Attributes

Parametric Data
ATMEGA168V-10AUR Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATMEGA168V-10AUR Microchip Technology Inc IC MCU 8BIT 16KB FLASH 32TQFP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TQFP-32
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family AVR RISC
Clock Frequency-Max 10 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 2
Number of I/O Lines 23
Number of Serial I/Os 1
Number of Terminals 32
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
RAM (words) 512
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 20 MHz
Supply Current-Max 12 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATMEGA168V-10AUR

This table gives cross-reference parts and alternative options found for ATMEGA168V-10AUR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATMEGA168V-10AUR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATMEGA168V-10AU Microchip Technology Inc $3.3512 IC MCU 8BIT 16KB FLASH 32TQFP ATMEGA168V-10AUR vs ATMEGA168V-10AU
ATMEGA168V-10AU-SL383 Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ABA, TQFP-32 ATMEGA168V-10AUR vs ATMEGA168V-10AU-SL383
Part Number Manufacturer Composite Price Description Compare
ATMEGA168V-10AI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM PITCH, PLASTIC, MS-026ABA, TQFP-32 ATMEGA168V-10AUR vs ATMEGA168V-10AI
ATMEGA168V-10AU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ABA, TQFP-32 ATMEGA168V-10AUR vs ATMEGA168V-10AU
ATMEGA168V-10AJ Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM HEIGHT, LEAD FREE, PLASTIC, MS-026ABA, TQFP-32 ATMEGA168V-10AUR vs ATMEGA168V-10AJ
ATMEGA168V-10MJ Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQCC32, 5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, MO-220VHHD-2, MLF-32 ATMEGA168V-10AUR vs ATMEGA168V-10MJ
ATMEGA168V-10PJ Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, DIP-28 ATMEGA168V-10AUR vs ATMEGA168V-10PJ
ATMEGA168V-10AUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ABA, TQFP-32 ATMEGA168V-10AUR vs ATMEGA168V-10AUR
ATMEGA168V-10PU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PDIP28, 0.300 INCH, GREEN, PLASTIC, DIP-28 ATMEGA168V-10AUR vs ATMEGA168V-10PU
ATMEGA168V-10MU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, 5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, MO-220VHHD-2, MLF-32 ATMEGA168V-10AUR vs ATMEGA168V-10MU
ATMEGA168V-10MUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, 5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, MO-220VHHD-2, MLF-32 ATMEGA168V-10AUR vs ATMEGA168V-10MUR
ATMEGA168V-10MI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, 5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, MO-220VHHD-2, MLF-32 ATMEGA168V-10AUR vs ATMEGA168V-10MI

ATMEGA168V-10AUR Related Parts

ATMEGA168V-10AUR Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the ATMEGA168V-10AUR is 10 MHz.

  • The ATMEGA168V-10AUR has 16 KB of flash memory.

  • The operating voltage range for the ATMEGA168V-10AUR is 1.8V to 5.5V.

  • Yes, the ATMEGA168V-10AUR has 512 bytes of built-in EEPROM.

  • The maximum current consumption of the ATMEGA168V-10AUR is 15 mA at 5V and 10 MHz.
