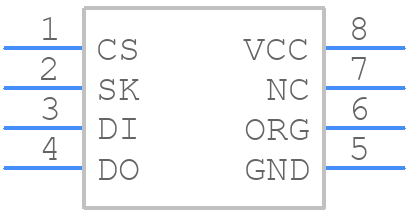

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT93C66A-10SU-2.7 by Microchip Technology Inc
Results Overview of AT93C66A-10SU-2.7 by Microchip Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AT93C66A-10SU-2.7 Information
AT93C66A-10SU-2.7 by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for AT93C66A-10SU-2.7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC EEPROM 4KBIT 2MHZ 8SOIC | 334 |
|
Buy Now RFQ | |
|
DISTI #
AT93C66A-10SU-2.7
|
EBV Elektronik | (Alt: AT93C66A-10SU-2.7) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for AT93C66A-10SU-2.7
AT93C66A-10SU-2.7 CAD Models
AT93C66A-10SU-2.7 Part Data Attributes
|
|
AT93C66A-10SU-2.7
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
AT93C66A-10SU-2.7
Microchip Technology Inc
EEPROM, 256X16, Serial, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | also operates with 2.7v @ 1mhz and 1.8v @ 0.25 mhz | |
| Alternate Memory Width | 8 | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| Data Retention Time-Min | 100 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Memory Density | 4096 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 256 words | |
| Number of Words Code | 256 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256X16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 5 V | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | MICROWIRE | |
| Standby Current-Max | 0.000015 A | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm | |
| Write Cycle Time-Max (tWC) | 10 ms |
AT93C66A-10SU-2.7 Frequently Asked Questions (FAQ)
-
The AT93C66A-10SU-2.7 has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
-
The AT93C66A-10SU-2.7 has a built-in power-on reset circuit that resets the device when the power supply voltage is below the minimum operating voltage, ensuring that the device is in a known state after power-up.
-
The WP pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored.
-
Yes, the AT93C66A-10SU-2.7 is compatible with 5V systems, but it is recommended to use a voltage regulator to ensure that the device operates within its recommended voltage range of 2.7V to 5.5V.
-
The AT93C66A-10SU-2.7 uses a page write mode, where data is written to the device in pages of 16 bytes. The device automatically increments the address pointer after each page write.
