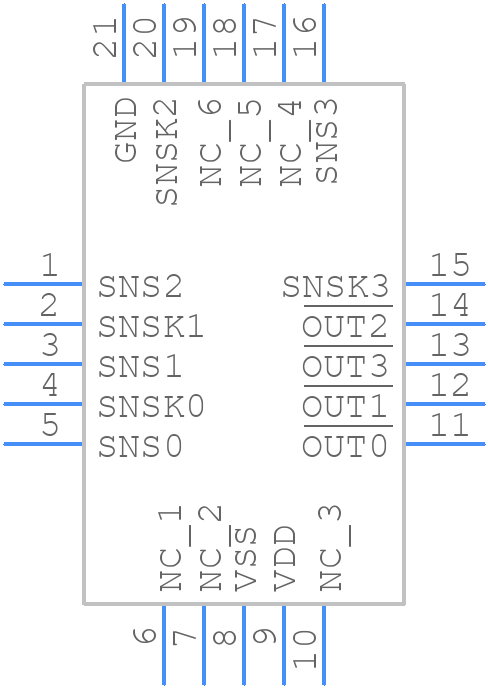

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT42QT1040-MMHR by Microchip Technology Inc
Results Overview of AT42QT1040-MMHR by Microchip Technology Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AT42QT1040-MMHR Information
AT42QT1040-MMHR by Microchip Technology Inc is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for AT42QT1040-MMHR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41AH8379
|
Newark | Capacitive Touch Sensor, Serial, Vqfn-28, No. Of Channels:4Channels, Output Interface:Serial, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Sensor Case/Package:Vqfn, No. Of Pins:20Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Microchip AT42QT1040-MMHR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1507 |
|
$1.2500 | Buy Now |
|
DISTI #
23AC2688
|
Newark | Integrated-Circuit 20 Vqfn 3X3X0.85Mm T/R Rohs Compliant: Yes |Microchip AT42QT1040-MMHR RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.4300 | Buy Now |
|
DISTI #
150-AT42QT1040-MMHRCT-ND
|
DigiKey | IC TOUCH SENSOR 4KEY 20-VQFN Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.3800 / $1.6500 | Buy Now |
|
DISTI #
AT42QT1040-MMHR
|
Avnet Americas | Capacitive Touch Sensor, Qtouch?, 4 Channels, Serial, 1.8 V, 5.5 V, VQFN - Tape and Reel (Alt: AT42QT1040-MMHR) RoHS: Not Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 4 Weeks, 0 Days Container: Reel | 12000 |
|
$1.3806 / $1.4750 | Buy Now |
|
DISTI #
556-AT42QT1040-MMHR
|
Mouser Electronics | Capacitive Touch Sensors INTEGRATED-CIRCUIT RoHS: Compliant | 8461 |
|
$1.3700 / $1.6500 | Buy Now |
|
DISTI #
V72:2272_07452215
|
Arrow Electronics | Capacitive Touch Screen 4 Key 20-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2333 Container: Cut Strips | Americas - 10899 |
|
$1.5840 / $1.7990 | Buy Now |
|
DISTI #
AT42QT1040-MMHR
|
Microchip Technology Inc | INTEGRATED-CIRCUIT, VQFN, Projected EOL: 2039-11-01 COO: South Korea ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel | 76990 |
|
$1.2100 / $1.6500 | Buy Now |
|
|
Onlinecomponents.com | Capacitive Touch Sensor Controller - 4 Key 20-Pin VQFN - Tape&Reel RoHS: Compliant |
12455 In Stock 72000 Factory Stock |
|
$1.3600 / $4.0500 | Buy Now |
|
DISTI #
67001263
|
Verical | Capacitive Touch Screen 4 Key 20-Pin VQFN EP T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 | Americas - 12450 |
|
$4.4783 / $5.2666 | Buy Now |
|
DISTI #
70353996
|
Verical | Capacitive Touch Screen 4 Key 20-Pin VQFN EP T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2333 | Americas - 10899 |
|
$1.5840 / $1.7990 | Buy Now |
Part Details for AT42QT1040-MMHR
AT42QT1040-MMHR CAD Models
AT42QT1040-MMHR Part Data Attributes
|
|
AT42QT1040-MMHR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
AT42QT1040-MMHR
Microchip Technology Inc
Analog Circuit, 1 Func
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | VQFN-20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Body Breadth | 3 mm | |
| Body Height | 0.78 mm | |
| Body Length or Diameter | 3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | OPEN-DRAIN | |
| Output Range | 0.7-4V | |
| Output Type | DIGITAL VOLTAGE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | LCC20,.12SQ,18 | |
| Package Shape/Style | SQUARE | |
| Sensors/Transducers Type | CAPACITIVE TOUCH SENSOR | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Surface Mount | YES |
