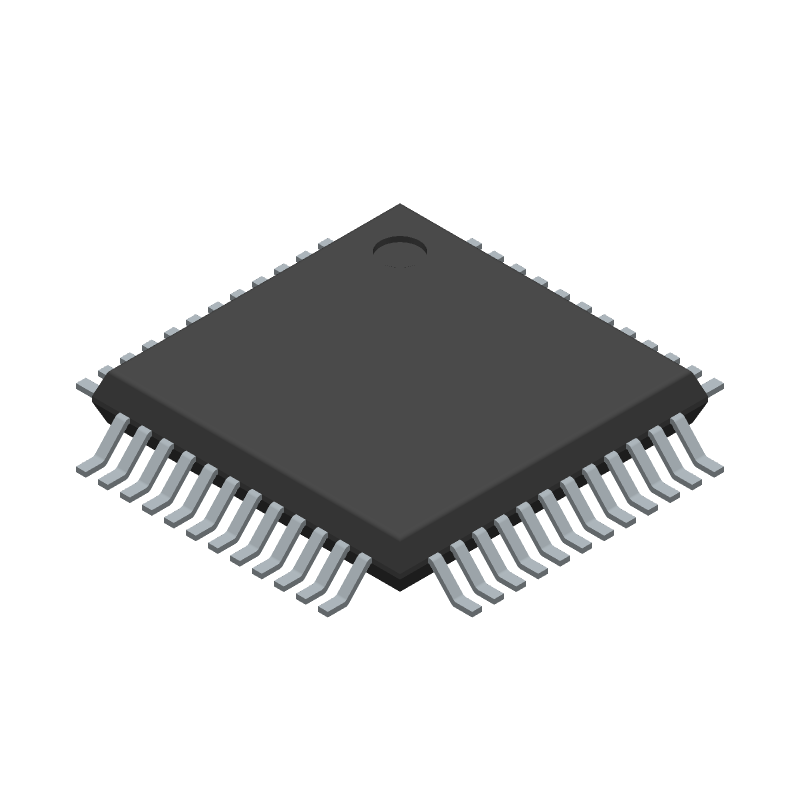

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT32UC3L032-AUT by Microchip Technology Inc
Results Overview of AT32UC3L032-AUT by Microchip Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
AT32UC3L032-AUT Information
AT32UC3L032-AUT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AT32UC3L032-AUT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
NAC | RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
RFQ | |
|
DISTI #
AT32UC3L032-AUT
|
EBV Elektronik | (Alt: AT32UC3L032-AUT) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for AT32UC3L032-AUT
AT32UC3L032-AUT CAD Models
AT32UC3L032-AUT Part Data Attributes
|
|
AT32UC3L032-AUT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
AT32UC3L032-AUT
Microchip Technology Inc
RISC Microcontroller, 32-Bit, FLASH, 50MHz, PQFP48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | MS-026, TQFP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 50 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Number of I/O Lines | 36 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP48,.35SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 16384 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 50 MHz | |
| Supply Voltage-Max | 1.98 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
AT32UC3L032-AUT Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the AT32UC3L032-AUT is -40°C to +85°C.
-
The clock source for the AT32UC3L032-AUT can be configured using the Clock Controller (CLK) module. The clock source can be selected from internal RC oscillator, external crystal oscillator, or external clock source. The configuration is done through the CLK_CTRL register.
-
The maximum frequency of the AT32UC3L032-AUT is 50 MHz.
-
The AT32UC3L032-AUT can be programmed using the In-System Programming (ISP) interface, which allows programming through the JTAG or UART interfaces. The device can also be programmed using an external programmer or a development board.
-
The power consumption of the AT32UC3L032-AUT depends on the operating frequency, voltage, and mode of operation. In active mode, the typical power consumption is around 20 mA at 3.3V and 50 MHz. In sleep mode, the typical power consumption is around 10 μA.
