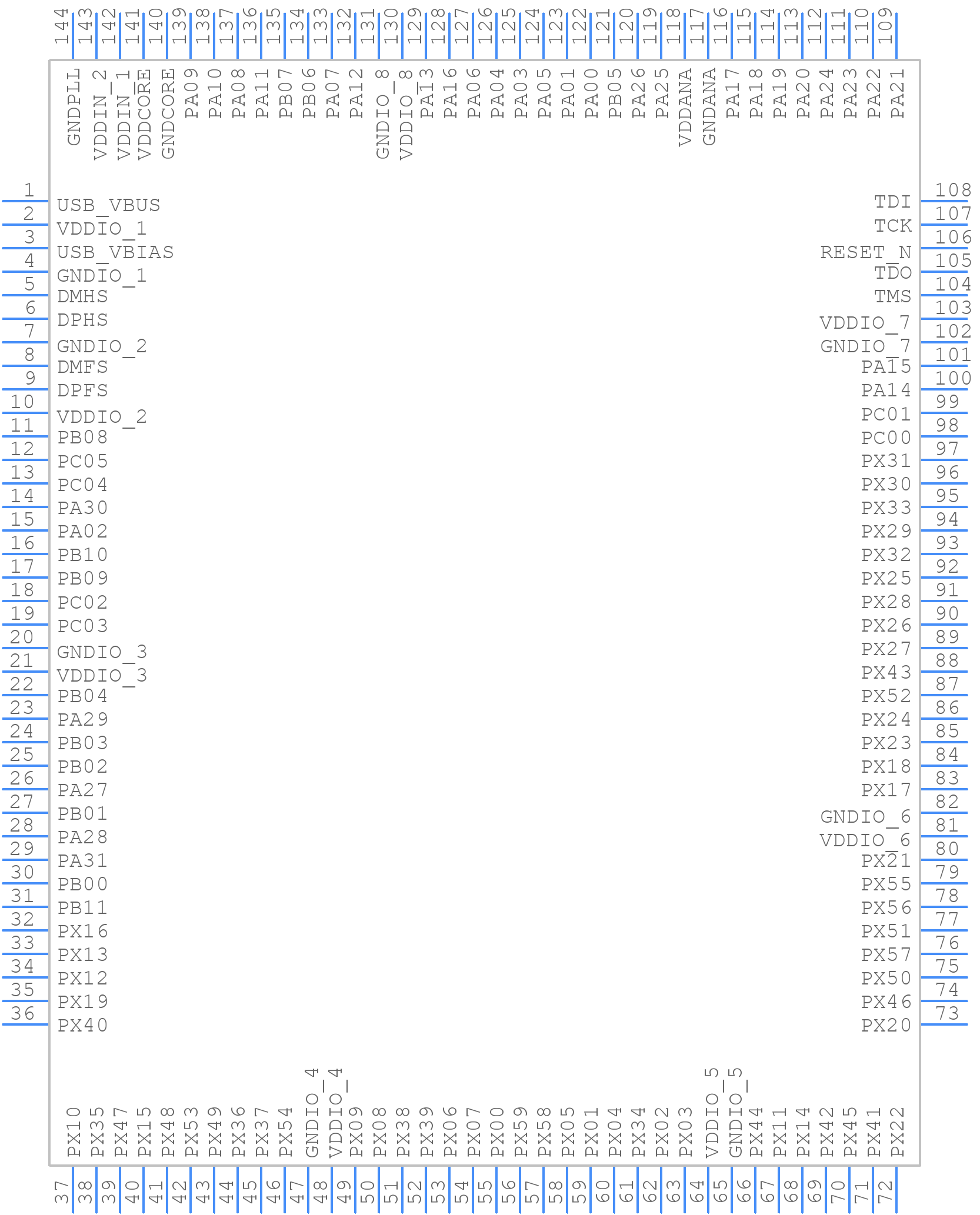

Part Symbol
-
Footprint
-

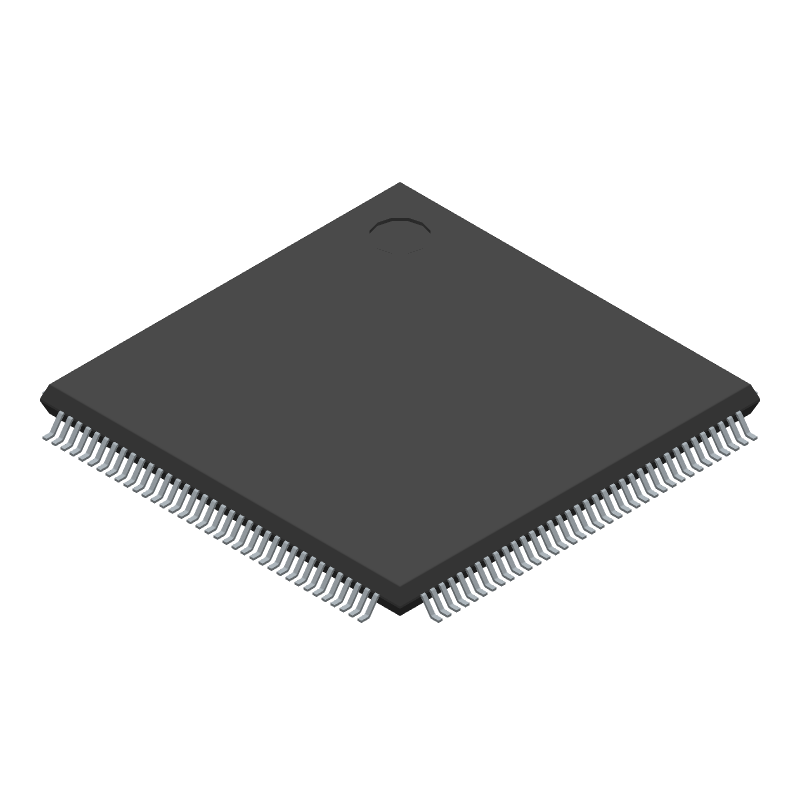

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT32UC3A3256S-ALUT by Microchip Technology Inc
Results Overview of AT32UC3A3256S-ALUT by Microchip Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AT32UC3A3256S-ALUT Information
AT32UC3A3256S-ALUT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AT32UC3A3256S-ALUT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AT32UC3A3256S-ALUT-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 144LQFP Min Qty: 1 Lead time: 7 Weeks Container: Tray |
80 In Stock |
|
$13.9500 / $16.9500 | Buy Now |
|
DISTI #
556-AT32UC3A3256SALT
|
Mouser Electronics | 32-bit Microcontrollers - MCU 256KB, 144LQFP Ind w/ AES Mod. RoHS: Compliant | 20 |
|
$13.9500 / $16.9500 | Buy Now |
Part Details for AT32UC3A3256S-ALUT
AT32UC3A3256S-ALUT CAD Models
AT32UC3A3256S-ALUT Part Data Attributes
|
|
AT32UC3A3256S-ALUT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
AT32UC3A3256S-ALUT
Microchip Technology Inc
IC MCU 32BIT 256KB FLASH 144LQFP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | LQFP-144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | IT ALSO OPERATES AT 3.3 V | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 50 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e3 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 8 | |
| Number of I/O Lines | 110 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 144 | |
| Number of Timers | 6 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 65536 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 66 MHz | |
| Supply Voltage-Max | 1.95 V | |
| Supply Voltage-Min | 1.75 V | |
| Supply Voltage-Nom | 1.85 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for AT32UC3A3256S-ALUT
This table gives cross-reference parts and alternative options found for AT32UC3A3256S-ALUT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT32UC3A3256S-ALUT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AT32UC3A3256S-ALUR | Microchip Technology Inc | Check for Price | IC MCU 32BIT 256KB FLASH 144LQFP | AT32UC3A3256S-ALUT vs AT32UC3A3256S-ALUR |
AT32UC3A3256S-ALUT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the AT32UC3A3256S-ALUT is 60 MHz.
-
The AT32UC3A3256S-ALUT has 256 KB of flash memory.
-
Yes, the AT32UC3A3256S-ALUT can operate at 3.3V, but it can also operate at 1.8V to 3.6V.
-
Yes, the AT32UC3A3256S-ALUT has a built-in USB 2.0 full-speed interface.
-
Yes, the AT32UC3A3256S-ALUT can operate in the industrial temperature range of -40°C to 85°C.
