Memory / EEPROMs / AT28HC64B-12JU
Datasheets

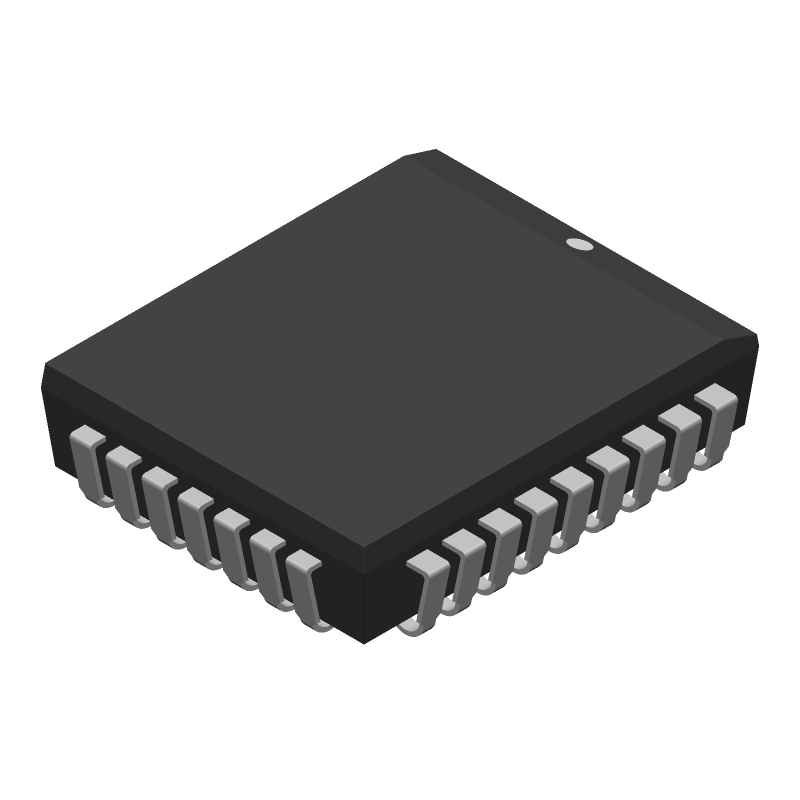

AT28HC64B-12JU by:

IC EEPROM 64KBIT 120NS 32PLCC

Part Details for AT28HC64B-12JU by Microchip Technology Inc

Results Overview of AT28HC64B-12JU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AT28HC64B-12JU Information

AT28HC64B-12JU by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for AT28HC64B-12JU

Part # Distributor Description Stock Price Buy
DISTI # 99AC8863
Newark Eeprom, 64Kbit, -40 To 85Deg C, Memory Size:64Kbit, Eeprom Memory Configuration:8K X 8Bit, Memory Interface Type:Parallel, Clock Frequency:-, Memory Case Style:Plcc, No. Of Pins:32Pins, Supply Voltage Min:4.5V, Supply Voltage Rohs Compliant: Yes |Microchip AT28HC64B-12JU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $6.3900
  • 10 $6.3800
  • 25 $6.2500
  • 64 $6.1300
  • 128 $6.0000
  • 256 $5.9700
  • 512 $5.9300
$5.9300 / $6.3900 Buy Now
DISTI # AT28HC64B-12JU-ND
DigiKey IC EEPROM 64KBIT PARALLEL 32PLCC Min Qty: 1 Lead time: 28 Weeks Container: Tube 176
In Stock
  • 1 $6.6100
  • 25 $6.3656
  • 100 $6.0976
$6.0976 / $6.6100 Buy Now
DISTI # AT28HC64B-12JU
Avnet Americas EEPROM, 64 Kbit, 8K x 8bit, Parallel, 5 MHz, PLCC, 32 Pins - Rail/Tube (Alt: AT28HC64B-12JU) RoHS: Compliant Min Qty: 128 Package Multiple: 32 Lead time: 28 Weeks, 0 Days Container: Tube 0
  • 128 $5.6000
  • 192 $5.5549
  • 320 $5.5098
  • 640 $5.4654
  • 1,280 $5.4093
$5.4093 / $5.6000 Buy Now
DISTI # 556-AT28HC64B12JU
Mouser Electronics EEPROM 1M 5V SDP - 120NS IND TEMP RoHS: Compliant 4089
  • 1 $6.4200
  • 25 $5.8200
  • 96 $5.8100
  • 512 $5.8000
  • 1,024 $5.6000
$5.6000 / $6.4200 Buy Now
DISTI # V36:1790_07151884
Arrow Electronics EEPROM Parallel 64K-bit 8K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 28 Weeks Date Code: 2346 Americas - 128
  • 32 $8.0720
  • 512 $8.0620
  • 1,024 $7.8624
$7.8624 / $8.0720 Buy Now
DISTI # AT28HC64B-12JU
Microchip Technology Inc 120NS, PLCC, IND TEMP, GREEN, PLCC, Projected EOL: 2039-11-26 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 28 Weeks, 0 Days Container: Tube 22

Alternates Available
  • 1 $6.4200
  • 25 $6.1800
  • 100 $5.9200
  • 1,000 $5.6200
  • 5,000 $5.2800
$5.2800 / $6.4200 Buy Now
Onlinecomponents.com EEPROM - Parallel - 64Kbit (8K x 8) - 5V - 32-Pin PLCC - Tube RoHS: Compliant 320 In Stock
  • 32 $5.9700
  • 64 $5.7500
  • 128 $5.6700
  • 256 $5.4300
  • 512 $5.3400
$5.3400 / $5.9700 Buy Now
DISTI # 76455264
Verical EEPROM Parallel 64K-bit 8K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Date Code: 2346 Americas - 320
  • 32 $7.7610
  • 64 $7.4750
  • 128 $7.3710
  • 256 $7.0590
  • 512 $6.9420
$6.9420 / $7.7610 Buy Now
DISTI # 76469031
Verical EEPROM Parallel 64K-bit 8K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Date Code: 2346 Americas - 128
  • 32 $8.0720
  • 512 $8.0620
  • 1,024 $7.8624
$7.8624 / $8.0720 Buy Now
DISTI # 87351037
Verical EEPROM Parallel 64K-bit 8K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 8 Package Multiple: 1 Americas - 39
  • 8 $7.5529
  • 25 $7.1059
$7.1059 / $7.5529 Buy Now
DISTI # AT28HC64B-12JU
TME IC: EEPROM memory, 64kbEEPROM, 8kx8bit, 4.5÷5.5V, PLCC32, parallel Min Qty: 1 45
  • 1 $7.3700
  • 5 $7.1300
  • 25 $6.1800
$6.1800 / $7.3700 Buy Now
DISTI # AT28HC64B-12JU
IBS Electronics EEPROM 64K 120NS 32PLCC PKG | MICROCHIP TECHNOLOGY INC. AT28HC64B-12JU Min Qty: 32 Package Multiple: 1 320
  • 32 $7.7610
  • 64 $7.4750
  • 128 $7.3710
  • 256 $7.0590
  • 512 $6.9420
$6.9420 / $7.7610 Buy Now
NAC 120NS, PLCC, IND TEMP, GREEN - Package: 32 PLCC 11.5x14x3.37mm TUBE RoHS: Compliant Min Qty: 64 Package Multiple: 32 Container: Tube 0
  • 1 $6.5900
  • 100 $5.9700
  • 500 $5.6000
  • 1,000 $5.4600
$5.4600 / $6.5900 Buy Now
DISTI # AT28HC64B-12JU
Avnet Silica EEPROM 64 Kbit 8K x 8bit Parallel 5 MHz PLCC 32 Pins (Alt: AT28HC64B-12JU) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 30 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC EEPROM 64KBIT PARALLEL 32PLCC 32
RFQ
DISTI # AT28HC64B-12JU
EBV Elektronik EEPROM 64 Kbit 8K x 8bit Parallel 5 MHz PLCC 32 Pins (Alt: AT28HC64B-12JU) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 29 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Parallel - 64Kbit (8K x 8) - 5V - 32-Pin PLCC - Tube RoHS: Compliant 320 In Stock
  • 32 $5.9700
  • 64 $5.7500
  • 128 $5.6700
  • 256 $5.4300
  • 512 $5.3400
$5.3400 / $5.9700 Buy Now

Part Details for AT28HC64B-12JU

AT28HC64B-12JU Part Data Attributes

Parametric Data
AT28HC64B-12JU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
AT28HC64B-12JU Microchip Technology Inc IC EEPROM 64KBIT 120NS 32PLCC
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description LCC-32
Reach Compliance Code compliant
Factory Lead Time 28 Weeks
Samacsys Manufacturer Microchip
Access Time-Max 120 ns
Command User Interface NO
Data Polling YES
Data Retention Time-Min 10
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PQCC-J32
JESD-609 Code e3
Length 13.97 mm
Memory Density 65536 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words 8192 words
Number of Words Code 8000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 8KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LCC32,.45X.55
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Page Size 64 words
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 245
Programming Voltage 5 V
Qualification Status Not Qualified
Seated Height-Max 3.556 mm
Standby Current-Max 0.0001 A
Supply Current-Max 0.04 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Toggle Bit YES
Width 11.43 mm
Write Cycle Time-Max (tWC) 10 ms

Alternate Parts for AT28HC64B-12JU

This table gives cross-reference parts and alternative options found for AT28HC64B-12JU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT28HC64B-12JU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AT28HC64B-12JU-T Microchip Technology Inc $7.5250 IC EEPROM 64KBIT 120NS 32PLCC AT28HC64B-12JU vs AT28HC64B-12JU-T
AT28HC64B-12JJ Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, MS-016AE, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JJ
AT28HC64B-12JIT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JIT/R
AT28HC64B-12JJT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JJT/R
AT28HC64B-12JI Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, MS-016AE, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JI
AT28HC64B-12JLT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JLT/R
AT28HC64B-12JL Atmel Corporation Check for Price EEPROM, 8KX8, 12ns, Parallel, CMOS, PQCC32, PLASTIC, MS-016AE, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JL
AT28HC64B-12JCT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JCT/R
Part Number Manufacturer Composite Price Description Compare
AT28HC64B-12JC Atmel Corporation Check for Price EEPROM, 8KX8, 12ns, Parallel, CMOS, PQCC32, PLASTIC, MS-016AE, LCC-32 AT28HC64B-12JU vs AT28HC64B-12JC
AT28HC64B-12TJT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PDSO28, PLASTIC, TSOP-28 AT28HC64B-12JU vs AT28HC64B-12TJT/R
CAT28C65BNI-12TE13 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C65BNI-12TE13
CAT28C64BFN-12TE13 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C64BFN-12TE13
CAT28C65BG-12TE7 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C65BG-12TE7
CAT28C64BHN-12TE13 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C64BHN-12TE13
CAT28C64BGI-12TE7 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C64BGI-12TE7
CAT28C65BHFN-12TE13 onsemi Check for Price 8KX8 EEPROM 5V, 120ns, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs CAT28C65BHFN-12TE13
AT28HC64B-12SI Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PDSO28, 0.300 INCH, PLASTIC, MS-013, SOIC-28 AT28HC64B-12JU vs AT28HC64B-12SI
AT28C64E-12JLT/R Atmel Corporation Check for Price EEPROM, 8KX8, 120ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32 AT28HC64B-12JU vs AT28C64E-12JLT/R

AT28HC64B-12JU Related Parts

AT28HC64B-12JU Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the AT28HC64B-12JU is -40°C to +85°C.

  • The AT28HC64B-12JU has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage (VCC) rises above 1.5V. No external POR circuit is required.

  • The recommended voltage range for the AT28HC64B-12JU is 4.5V to 5.5V.

  • The AT28HC64B-12JU can be programmed using a variety of programming algorithms and tools, including the Microchip PICkit 3, ICD 3, and MPLAB X IDE.

  • The data retention period for the AT28HC64B-12JU is a minimum of 100 years at 25°C, and 10 years at 85°C.
