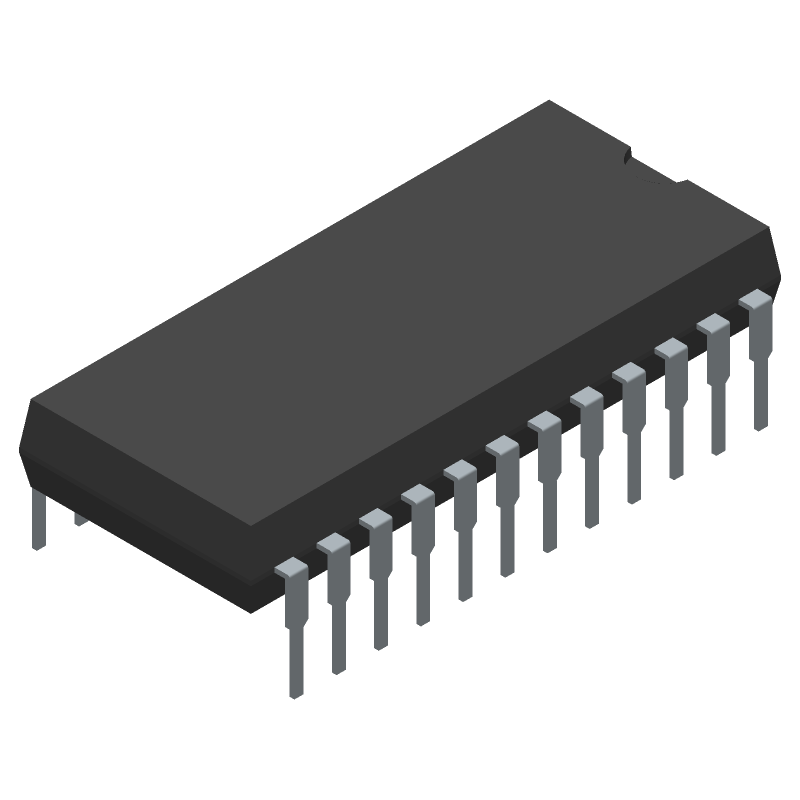

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT28C16-15PC by Microchip Technology Inc
Results Overview of AT28C16-15PC by Microchip Technology Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
AT28C16-15PC Information
AT28C16-15PC by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| NFM15PC755R0G3D | Murata Manufacturing Co Ltd | Feed Through Capacitor, | |
| NFM15PC435R0G3D | Murata Manufacturing Co Ltd | Feed Through Capacitor, | |
| NFM15PC915R0G3D | Murata Manufacturing Co Ltd | Feed Through Capacitor, |
Part Details for AT28C16-15PC
AT28C16-15PC CAD Models
AT28C16-15PC Part Data Attributes
|
|
AT28C16-15PC
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
AT28C16-15PC
Microchip Technology Inc
EEPROM, 2KX8, 150ns, Parallel, CMOS, PDIP24
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | DIP-24 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Microchip | |
| Access Time-Max | 150 ns | |
| Command User Interface | NO | |
| Data Polling | YES | |
| Data Retention Time-Min | 10 | |
| Endurance | 10000 Write/Erase Cycles | |
| JESD-30 Code | R-PDIP-T24 | |
| Length | 31.9 mm | |
| Memory Density | 16384 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Number of Words | 2048 words | |
| Number of Words Code | 2000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 2KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP24,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Parallel/Serial | PARALLEL | |
| Programming Voltage | 5 V | |
| Seated Height-Max | 5.59 mm | |
| Standby Current-Max | 0.0001 A | |
| Supply Current-Max | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 15.24 mm | |
| Write Cycle Time-Max (tWC) | 1 ms |
AT28C16-15PC Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the AT28C16-15PC is -40°C to +85°C.
-
The AT28C16-15PC has a built-in POR circuit that resets the device when the power supply voltage (VCC) rises above 1.5V. No external POR circuit is required.
-
The recommended voltage range for the AT28C16-15PC is 4.5V to 5.5V.
-
The AT28C16-15PC can be programmed using a variety of programming algorithms and tools, including the Microchip PICkit 3 programmer and the MPLAB X IDE.
-
The data retention period for the AT28C16-15PC is a minimum of 10 years at 25°C, and 1 year at 85°C.
