Memory / EEPROMs / AT28C010-12JU
Datasheets
AT28C010-12JU by:

IC EEPROM 1MBIT 120NS 32PLCC

Part Details for AT28C010-12JU by Microchip Technology Inc

Results Overview of AT28C010-12JU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

AT28C010-12JU Information

AT28C010-12JU by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for AT28C010-12JU

Part # Distributor Description Stock Price Buy
DISTI # 78AH9367
Newark 120Ns, Plcc, Ind Temp, Green Rohs Compliant: Yes |Microchip AT28C010-12JU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $49.8300
  • 10 $47.7000
  • 30 $47.3600
$47.3600 / $49.8300 Buy Now
DISTI # 68T4304
Newark Parallel Eeprom, 1Mbit, Plcc-32, Memory Configuration:128K X 8Bit, Interfaces:Parallel, Clock Frequency Max:5Mhz, Ic Case/Package:Lcc, No. Of Pins:32Pins, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Microchip AT28C010-12JU RoHS: Compliant Min Qty: 32 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 25 $52.9000
  • 64 $51.8700
  • 128 $50.8400
$50.8400 / $52.9000 Buy Now
DISTI # AT28C010-12JU-ND
DigiKey IC EEPROM 1MBIT PARALLEL 32PLCC Min Qty: 1 Lead time: 27 Weeks Container: Tube 140
In Stock
  • 1 $54.9700
  • 25 $52.9000
  • 100 $50.8400
$50.8400 / $54.9700 Buy Now
DISTI # AT28C010-12JU
Avnet Americas EEPROM, 1 Mbit, 128K x 8bit, Parallel, 5 MHz, LCC, 32 Pins - Rail/Tube (Alt: AT28C010-12JU) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 27 Weeks, 0 Days Container: Tube 0
  • 32 $51.5498
  • 40 $49.6263
  • 70 $47.7028
  • 160 $45.7793
  • 320 $43.8558
$43.8558 / $51.5498 Buy Now
DISTI # 556-AT28C01012JU
Mouser Electronics EEPROM 1M 5V SDP - 120NS IND TEMP RoHS: Compliant 110
  • 1 $54.9700
  • 25 $52.9000
  • 96 $50.8400
$50.8400 / $54.9700 Buy Now
DISTI # V36:1790_07146004
Arrow Electronics EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 27 Weeks Date Code: 2504 Americas - 126
  • 32 $52.7100
  • 96 $48.6200
$48.6200 / $52.7100 Buy Now
DISTI # VBF:5286_07146004
Arrow Electronics EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 27 Weeks Date Code: 2407 Americas - 34
  • 32 $52.7600
  • 96 $49.3500
$49.3500 / $52.7600 Buy Now
DISTI # E54:1762_01130779
Arrow Electronics EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 27 Weeks Date Code: 2504 Europe - 23
  • 1 $53.8300
  • 25 $48.5300
  • 100 $47.7100
$47.7100 / $53.8300 Buy Now
DISTI # AT28C010-12JU
Microchip Technology Inc 120NS, PLCC, IND TEMP, GREEN, PLCC, Projected EOL: 2039-11-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 27 Weeks, 0 Days Container: Tube 30

Alternates Available
  • 1 $54.9700
  • 25 $52.9000
  • 100 $50.8400
  • 1,000 $48.0900
  • 5,000 $45.3500
$45.3500 / $54.9700 Buy Now
Future Electronics AT28C010 Series 1 Mb (128 K x 8) 5.5 V 120 ns Paged Parallel EEPROM - PLCC-32 RoHS: Compliant pbFree: Yes Min Qty: 32 Package Multiple: 32 Lead time: 27 Weeks Container: Tube 288
Tube
  • 32 $46.5400
  • 64 $46.0000
$46.0000 / $46.5400 Buy Now
Onlinecomponents.com EEPROM - Parallel - 1Mbit (128K x 8) - 5V - 32-Pin PLCC - Tube RoHS: Compliant 29 In Stock
640 Factory Stock
  • 1 $56.6700
  • 5 $47.0500
  • 10 $46.0800
  • 32 $45.4000
  • 64 $44.8800
$44.8800 / $56.6700 Buy Now
DISTI # 88111504
Verical EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Date Code: 2504 Americas - 96
  • 32 $52.7100
  • 96 $48.6200
$48.6200 / $52.7100 Buy Now
DISTI # 88177426
Verical EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin PLCC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2504 Americas - 23
  • 1 $53.8300
  • 25 $48.5300
  • 100 $47.7100
$47.7100 / $53.8300 Buy Now
Quest Components EEPROM, 128KX8, 120NS, PARALLEL, CMOS, PQCC32 25
  • 1 $133.1580
  • 9 $113.1843
  • 19 $106.5264
$106.5264 / $133.1580 Buy Now
Future Electronics AT28C010 Series 1 Mb (128 K x 8) 5.5 V 120 ns Paged Parallel EEPROM - PLCC-32 Min Qty: 32 Package Multiple: 32 32
null
  • 32 $46.5400
  • 64 $46.0000
$46.0000 / $46.5400 Buy Now
DISTI # AT28C010-12JU
TME IC: EEPROM memory, 1MbEEPROM, 128kx8bit, 4.5÷5.5V, PLCC32, 120ns Min Qty: 1 0
  • 1 $58.7300
  • 10 $57.1000
  • 25 $55.8700
  • 100 $53.0200
$53.0200 / $58.7300 RFQ
NAC 120NS, PLCC, IND TEMP, GREEN - Package: 32 PLCC 11.5x14x3.37mm TUBE RoHS: Compliant Min Qty: 32 Package Multiple: 32 Container: Tube 0
  • 1 $54.9600
  • 100 $50.6200
  • 500 $48.0900
  • 800 $46.9100
$46.9100 / $54.9600 Buy Now
DISTI # AT28C010-12JU
Avnet Silica EEPROM 1 Mbit 128K x 8bit Parallel 5 MHz LCC 32 Pins (Alt: AT28C010-12JU) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 29 Weeks, 0 Days Silica - 0
Buy Now
DISTI # AT28C010-12JU
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 32
  • 1 $51.8000
  • 5 $49.8000
  • 10 $47.5000
  • 64 $46.7000
  • 128 $45.1000
  • 256 $43.6000
$43.6000 / $51.8000 Buy Now
DISTI # AT28C010-12JU
EBV Elektronik EEPROM 1 Mbit 128K x 8bit Parallel 5 MHz LCC 32 Pins (Alt: AT28C010-12JU) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 28 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Parallel - 1Mbit (128K x 8) - 5V - 32-Pin PLCC - Tube RoHS: Compliant 29 In Stock
640 Factory Stock
  • 1 $56.6700
  • 5 $47.0500
  • 10 $46.0800
  • 32 $45.4000
  • 64 $44.8800
$44.8800 / $56.6700 Buy Now

Part Details for AT28C010-12JU

AT28C010-12JU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

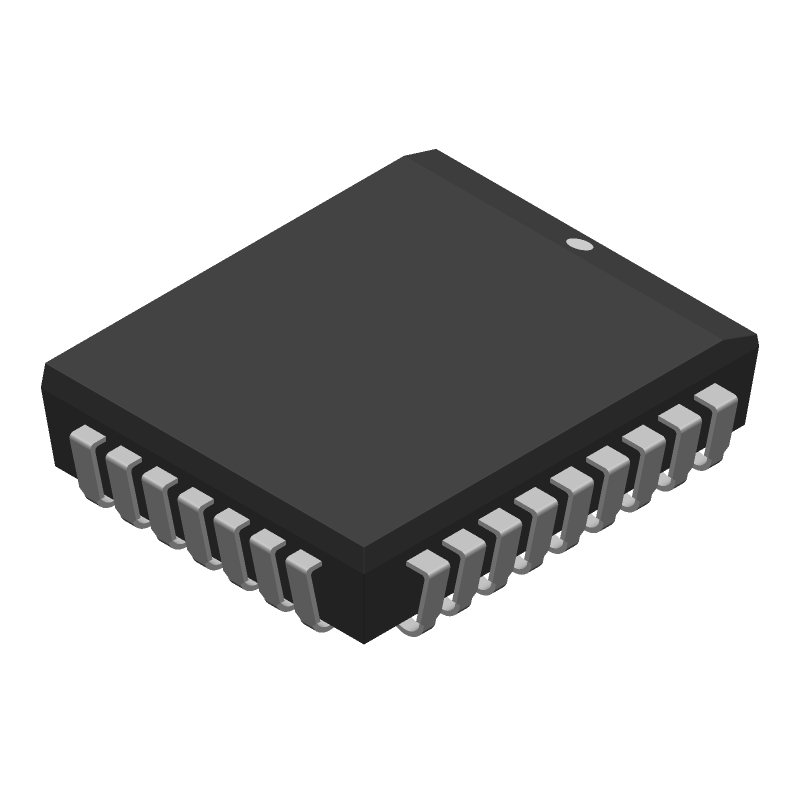

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AT28C010-12JU Part Data Attributes

Parametric Data
AT28C010-12JU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
AT28C010-12JU Microchip Technology Inc IC EEPROM 1MBIT 120NS 32PLCC
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description LCC-32
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 27 Weeks
Samacsys Manufacturer Microchip
Access Time-Max 120 ns
Command User Interface NO
Data Polling YES
Endurance 10000 Write/Erase Cycles
JESD-30 Code R-PQCC-J32
JESD-609 Code e3
Length 13.97 mm
Memory Density 1048576 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words 131072 words
Number of Words Code 128000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 128KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Page Size 128 words
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 245
Programming Voltage 5 V
Qualification Status Not Qualified
Seated Height-Max 3.556 mm
Standby Current-Max 0.0002 A
Supply Current-Max 0.04 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Toggle Bit YES
Width 11.43 mm
Write Cycle Time-Max (tWC) 10 ms

AT28C010-12JU Related Parts

AT28C010-12JU Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the AT28C010-12JU is -40°C to +85°C.

  • The AT28C010-12JU has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage (VCC) is below 1.5V. No external POR circuit is required.

  • The recommended voltage range for the AT28C010-12JU is 4.5V to 5.5V.

  • The AT28C010-12JU can be programmed using a variety of programming algorithms and tools, including the Microchip PICkit 3 programmer and the MPLAB X IDE.

  • The data retention period for the AT28C010-12JU is a minimum of 10 years at 25°C, and 1 year at 85°C.
