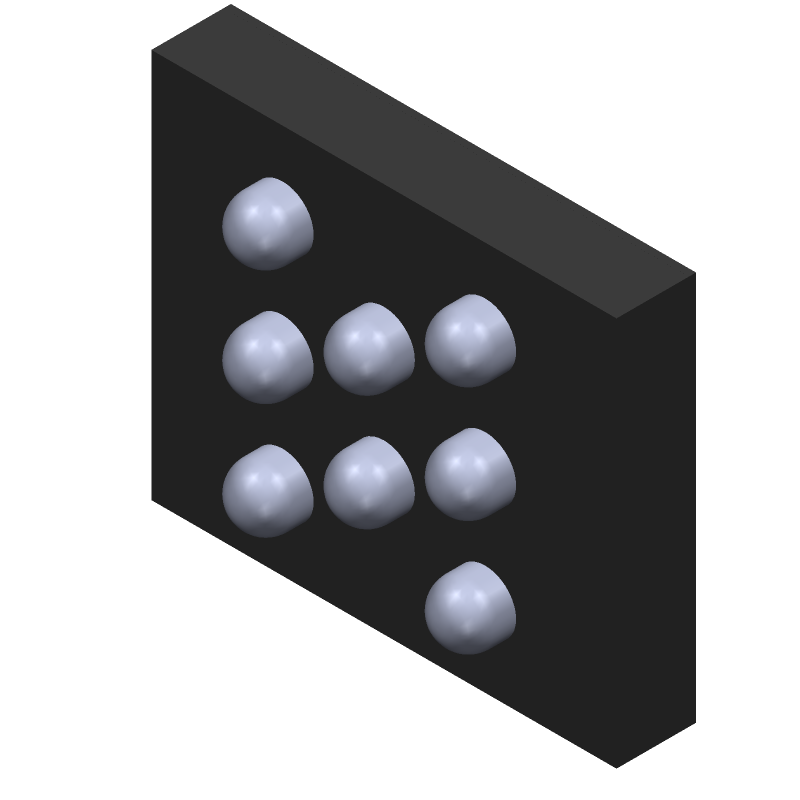

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT25SF161B-UUD-T by Renesas Electronics Corporation
Results Overview of AT25SF161B-UUD-T by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
AT25SF161B-UUD-T Information
AT25SF161B-UUD-T by Renesas Electronics Corporation is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for AT25SF161B-UUD-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1695-AT25SF161B-UUD-TCT-ND
|
DigiKey | IC FLASH 16MBIT SPI/QUAD 8WLCSP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4235 In Stock |
|
$0.5008 / $0.6600 | Buy Now |
|
DISTI #
AT25SF161B-UUD-T
|
Avnet Americas | NOR Flash 16Mbit 2M X 8 Serial-SPI 2.5V to 3.6V 8-Pin WLCSP T/R - Tape and Reel (Alt: AT25SF161B-UUD-T) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.6600 | Buy Now |
|
DISTI #
724-AT25SF161B-UUD-T
|
Mouser Electronics | NOR Flash 16 Mbit, 3.0V (2.5V to 3.6V), -40C to 85C, WLCSP (Tape & Reel), Single, Dual, Quad SPI NOR flash RoHS: Compliant | 815 |
|
$0.5000 / $0.7900 | Buy Now |
|
DISTI #
AT25SF161B-UUD-T
|
Avnet Silica | NOR Flash 16Mbit 2M X 8 SerialSPI 25V to 36V 8Pin WLCSP TR (Alt: AT25SF161B-UUD-T) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for AT25SF161B-UUD-T
AT25SF161B-UUD-T CAD Models
AT25SF161B-UUD-T Part Data Attributes
|
|
AT25SF161B-UUD-T
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
AT25SF161B-UUD-T
Renesas Electronics Corporation
16Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support, WLCSP, 5000/Tape & Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | WLCSP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Clock Frequency-Max (fCLK) | 108 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PBGA-B8 | |
| Length | 1.608 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2097152 words | |
| Number of Words Code | 2000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA8,3X5,14/8 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 0.462 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.00003 A | |
| Supply Current-Max | 0.02 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.35 mm | |
| Terminal Position | BOTTOM | |
| Type | NOR TYPE | |
| Width | 1.348 mm | |
| Write Protection | HARDWARE/SOFTWARE |
