Part Details for AT25DF081A-SH-B by Renesas Electronics Corporation
Results Overview of AT25DF081A-SH-B by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
AT25DF081A-SH-B Information
AT25DF081A-SH-B by Renesas Electronics Corporation is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for AT25DF081A-SH-B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67AC3271
|
Newark | Flash Memory, 8Mbit, -40 To 85Deg C, Flash Memory Type:Serial Nor, Memory Configuration:-, Interfaces:Spi, Ic Case/Package:Wsoic, No. Of Pins:8Pins, Clock Frequency Max:100Mhz, Access Time:-, Supply Voltage Min:2.7V, Msl:- Rohs Compliant: Yes |Renesas AT25DF081A-SH-B RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
AT25DF081A-SH-BAD-ND
|
DigiKey | IC FLASH 8MBIT SPI 100MHZ 8SOIC Lead time: 18 Weeks Container: Tube | Limited Supply - Call |
|
Buy Now | |
|
DISTI #
AT25DF081A-SHB
|
TME | IC: FLASH memory, 8MbFLASH, 100MHz, 2.7÷3.6V, SO8-W, serial, tube Min Qty: 1 | 0 |
|
$1.2300 / $1.6300 | RFQ |
|
DISTI #
AT25DF081A-SH-B
|
Avnet Asia | Flash Serial-SPI 3.3V 8Mbit 1M x 8bit 8-Pin SOIC EIAJ Bulk (Alt: AT25DF081A-SH-B) RoHS: Compliant Min Qty: 2250 Package Multiple: 90 Lead time: 18 Weeks, 0 Days | 0 |
|
$0.9294 / $1.0395 | Buy Now |
|
DISTI #
AT25DF081A-SH-B
|
Avnet Silica | Flash SerialSPI 33V 8Mbit 1M x 8bit 8Pin SOIC EIAJ Bulk (Alt: AT25DF081A-SH-B) RoHS: Compliant Min Qty: 4500 Package Multiple: 90 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for AT25DF081A-SH-B

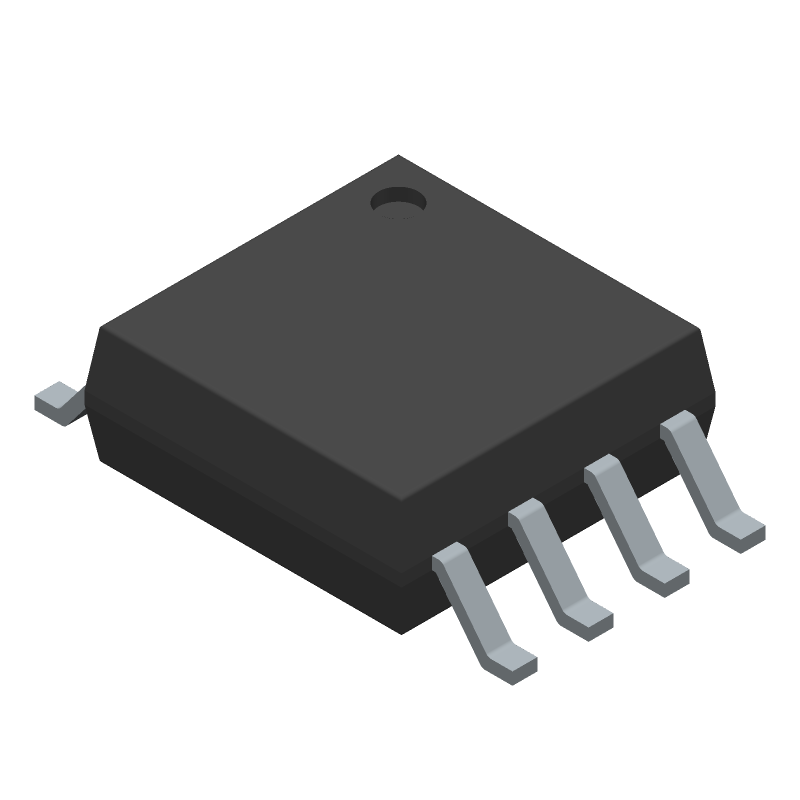

AT25DF081A-SH-B CAD Models
AT25DF081A-SH-B Part Data Attributes
|
|
AT25DF081A-SH-B
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
AT25DF081A-SH-B
Renesas Electronics Corporation
8Mbit 2.7V Minimum SPI Serial Flash Memory, SOIC-W, 90/Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOIC-W | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Renesas Electronics | |
| Clock Frequency-Max (fCLK) | 85 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 5.29 mm | |
| Memory Density | 8388608 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 1048576 words | |
| Number of Words Code | 1000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.00001 A | |
| Supply Current-Max | 0.02 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Type | NOR TYPE | |
| Width | 5.24 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for AT25DF081A-SH-B
This table gives cross-reference parts and alternative options found for AT25DF081A-SH-B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT25DF081A-SH-B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AT25DF081A-SH-B | Adesto Technologies Corporation | Check for Price | Flash, 8MX1, PDSO8, SOIC-8 | AT25DF081A-SH-B vs AT25DF081A-SH-B |
