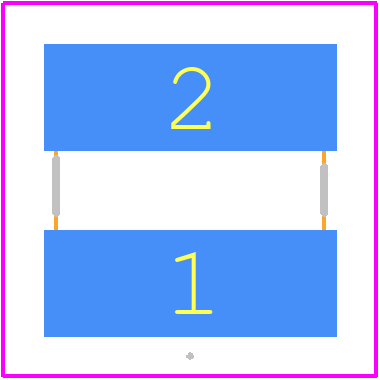

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASPI-0602S-100M-T by Abracon Corporation
Results Overview of ASPI-0602S-100M-T by Abracon Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ASPI-0602S-100M-T Information
ASPI-0602S-100M-T by Abracon Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for ASPI-0602S-100M-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W0239
|
Newark | Fixed Ind 10Uh 1.7A 65 Mohm Smd/Tape & Reel (Tr) Rohs Compliant: Yes |Abracon ASPI-0602S-100M-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3640 / $0.4700 | Buy Now |
|
DISTI #
535-ASPI-0602S-100M-TCT-ND
|
DigiKey | FIXED IND 10UH 1.7A 65 MOHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
999 In Stock |
|
$0.3000 / $0.6700 | Buy Now |
|
DISTI #
ASPI-0602S-100M-T
|
Avnet Americas | Power Inductor (SMD), 10 uH, ? 20%, 1.7 A, Shielded, 1.7 A, 6.7mm x 6.7mm x 3mm - Tape and Reel (Alt: ASPI-0602S-100M-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.2893 / $0.3185 | Buy Now |
|
DISTI #
815-ASPI-0602S-100M
|
Mouser Electronics | Power Inductors - SMD IND 10.00 uH 1.700 A 65.00 mOhm RoHS: Compliant | 0 |
|
$0.3060 / $0.6700 | Order Now |
|
|
Onlinecomponents.com | Shielded Power Inductor - SMD - 10uH ±20% - 1.7A - DCR: 0.065 ohm - Tape&Reel RoHS: Compliant | 0 |
|
$0.2821 / $0.3750 | Buy Now |
|
DISTI #
ASPI-0602S-100M-T
|
Avnet Abacus | Power Inductor SMD 10 uH 20 17 A Shielded 17 A 67mm x 67mm x 3mm - Tape and Reel (Alt: ASPI-0602S-100M-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Inductors | 528 |
|
RFQ |
Part Details for ASPI-0602S-100M-T
ASPI-0602S-100M-T CAD Models
ASPI-0602S-100M-T Part Data Attributes
|
|
ASPI-0602S-100M-T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ASPI-0602S-100M-T
Abracon Corporation
IND 10uH 1.7A 65mΩ
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Case/Size Code | 2626 | |
| Construction | Shield | |
| DC Resistance | 0.065 Ω | |
| Inductance-Nom (L) | 10 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3 mm | |
| Package Length | 6.7 mm | |
| Package Style | SMT | |
| Package Width | 6.7 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 1.7 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.01 MHz | |
| Tolerance | 20% |
