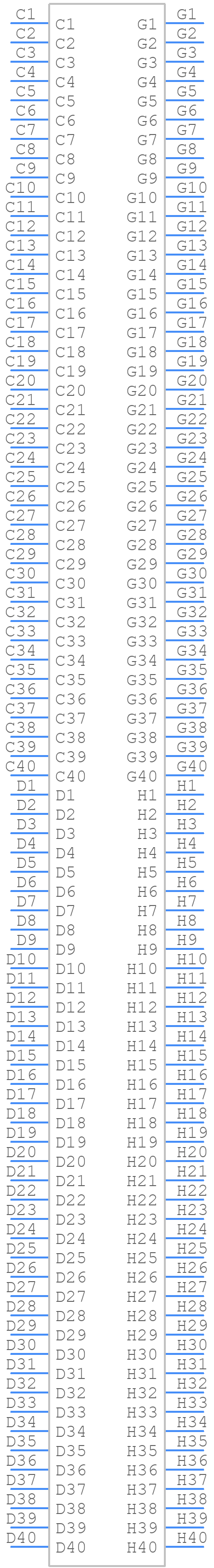

Part Symbol
-
Footprint
-

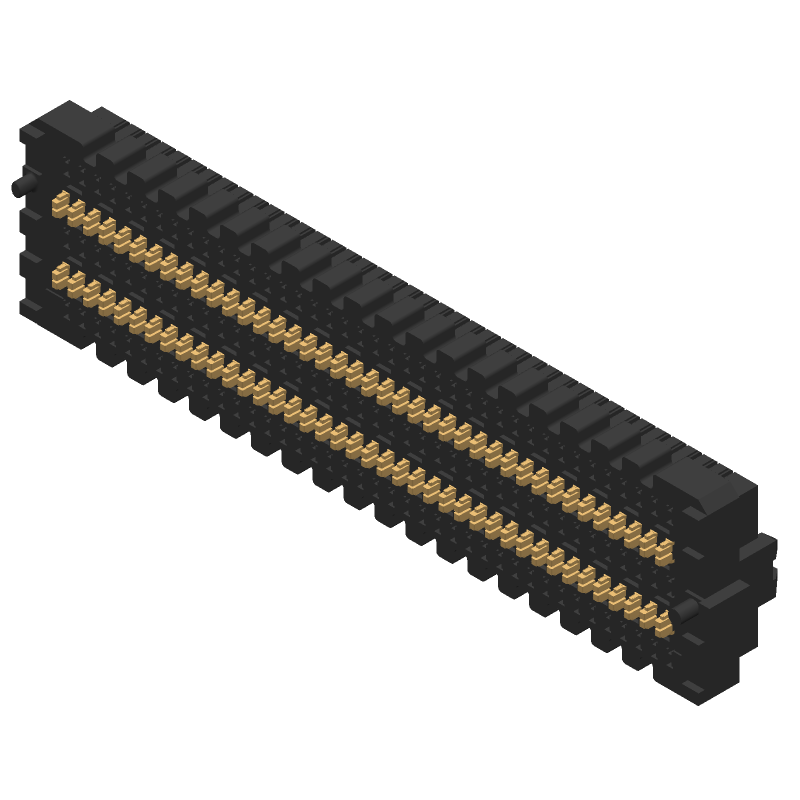

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASP-134604-01 by Samtec Inc
Results Overview of ASP-134604-01 by Samtec Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ASP-134604-01 Information
ASP-134604-01 by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for ASP-134604-01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79X1317
|
Newark | Conn, Vita 57 Fmc, Header, 160Pos, 4Row, Mezzanine Connector Type:Array, Male, Pitch Spacing:1.27Mm, No. Of Rows:4Rows, No. Of Contacts:160Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy, Gender:Header Rohs Compliant: Yes |Samtec ASP-134604-01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 814 |
|
$13.1500 / $20.3400 | Buy Now |
|
DISTI #
612-ASP-134604-01CT-ND
|
DigiKey | CONN ARRAY PLUG 160POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR), Cut Tape (CT) |
1460 In Stock |
|
$8.8570 / $20.9700 | Buy Now |
|
DISTI #
ASP-134604-01
|
Avnet Americas | Mezzanine Connector, Vita 57 XMC, Array, Male, 1.27 mm, 4 Rows, 160 Contacts, Surface Mount - Tape and Reel (Alt: ASP-134604-01) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Reel | 200 |
|
$10.5969 / $12.4433 | Buy Now |
|
DISTI #
ASP-134604-01
|
Avnet Americas | Mezzanine Connector, Vita 57 XMC, Array, Male, 1.27 mm, 4 Rows, 160 Contacts, Surface Mount - Tape and Reel (Alt: ASP-134604-01) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Reel | 0 |
|
$12.2752 / $14.6269 | Buy Now |
|
DISTI #
200-ASP-134604-01
|
Mouser Electronics | Board to Board & Mezzanine Connectors ASP RoHS: Compliant | 1446 |
|
$9.9400 / $20.9700 | Buy Now |
|
|
Onlinecomponents.com | Board to board connector - 160 position connector array - Number of rows 4 - Pitch 1.27 mm - Surface mount - Gold contact finish - Male RoHS: Compliant |
763 In Stock |
|
$9.1700 / $23.2100 | Buy Now |
|
DISTI #
71197216
|
Verical | Conn Array Terminal HDR 160 POS 1.27mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2132 | Americas - 376 |
|
$12.4471 / $27.3059 | Buy Now |
|
DISTI #
71032488
|
Verical | Conn Array Terminal HDR 160 POS 1.27mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 | Americas - 375 |
|
$11.8300 / $15.6900 | Buy Now |
|
DISTI #
88085248
|
Verical | Conn Array Terminal HDR 160 POS 1.27mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 | Americas - 10 |
|
$18.4000 / $24.2000 | Buy Now |
|
|
Bristol Electronics | 26 |
|
RFQ |
Part Details for ASP-134604-01
ASP-134604-01 CAD Models
ASP-134604-01 Part Data Attributes
|
|
ASP-134604-01
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
ASP-134604-01
Samtec Inc
Board Connector, 160 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 2 Weeks, 5 Days | |
| Samacsys Manufacturer | SAMTEC | |
| Body Breadth | 0.578 inch | |
| Body Depth | 0.245 inch | |
| Body Length | 2.196 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | CENTRONIC | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 4 | |
| Number of Rows Loaded | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 30u inch | |
| Reference Standard | UL | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 160 |
Alternate Parts for ASP-134604-01
This table gives cross-reference parts and alternative options found for ASP-134604-01. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASP-134604-01, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ASP-134606-01 | Samtec Inc | $17.2723 | Board Connector, 160 Contact(s), 4 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, | ASP-134604-01 vs ASP-134606-01 |
ASP-134604-01 Frequently Asked Questions (FAQ)
-
The recommended torque for the screws on the ASP-134604-01 is 6-8 in-lbs (0.7-0.9 N-m). It's essential to follow the recommended torque to ensure proper seating and prevent damage to the connector.
-
Yes, the ASP-134604-01 is designed to withstand high-vibration environments. Samtec's ASP series is known for its ruggedness and can operate in applications with vibrations up to 20 G's.
-
The ASP-134604-01 has an operating temperature range of -55°C to 125°C (-67°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environment.
-
Yes, the ASP-134604-01 is compatible with lead-free soldering processes. Samtec's ASP series is designed to meet the requirements of lead-free soldering, making it an ideal choice for modern electronics manufacturing.
-
The ASP-134604-01 has a mating cycle life of 500 cycles minimum. This means the connector can withstand at least 500 mating cycles without compromising its performance or reliability.
