ASP-129637-03 by: Samtec Inc

Board Stacking Connector, 156 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Part Details for ASP-129637-03 by Samtec Inc

Results Overview of ASP-129637-03 by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ASP-129637-03 Information

ASP-129637-03 by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for ASP-129637-03

Part # Distributor Description Stock Price Buy
DISTI # 27T2391
Newark Connector, Header, 156Pos, 2Row, 0.635Mm, Mezzanine Connector Type:Array, Male, Pitch Spacing:0.635Mm, No. Of Rows:2Rows, No. Of Contacts:156Contacts, Connector Mounting:Surface Mount, Contact Material:Phosphor Bronze, Gender:Header Rohs Compliant: Yes |Samtec ASP-129637-03 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 2049
  • 1 $30.4200
  • 5 $26.4600
  • 10 $22.5000
  • 25 $20.7700
$20.7700 / $30.4200 Buy Now
DISTI # 85AJ1614
Newark Mezzanine Conn, Plug, 156Pos, 2Row, Mezzanine Connector Type:Array, Male, Pitch Spacing:0.635Mm, No. Of Rows:2Rows, No. Of Contacts:156Contacts, Connector Mounting:Surface Mount, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Samtec ASP-129637-03 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $16.8500
$16.8500 Buy Now
DISTI # SAM10405-ND
DigiKey CONN HDR 156POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tray 414
In Stock
  • 1 $18.9700
  • 10 $16.1210
  • 25 $15.1116
  • 50 $14.3904
  • 100 $13.7039
  • 250 $13.5480
$13.5480 / $18.9700 Buy Now
DISTI # ASP-129637-03
Avnet Americas Mezzanine Connector, Array, Male, 0.635 mm, 2 Rows, 156 Contacts, Surface Mount, Phosphor Bronze - Trays (Alt: ASP-129637-03) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tray 2013 Factory Stock
  • 1 $19.6667
  • 10 $19.2520
  • 30 $18.8684
  • 50 $18.5624
  • 100 $15.4925
$15.4925 / $19.6667 Buy Now
DISTI # 200-ASP-129637-03
Mouser Electronics Board to Board & Mezzanine Connectors ASP RoHS: Compliant 1206
  • 1 $27.6500
  • 10 $25.6100
  • 26 $23.5500
  • 52 $20.4800
  • 104 $17.4000
  • 260 $16.3600
  • 520 $14.3000
$14.3000 / $27.6500 Buy Now
Onlinecomponents.com Connector Array Receptacle RoHS: Compliant 737 In Stock
1663 Factory Stock
  • 1 $28.5300
  • 10 $15.4800
  • 26 $14.4600
  • 52 $13.7000
  • 104 $13.2900
  • 260 $13.2200
  • 520 $13.1500
$13.1500 / $28.5300 Buy Now
DISTI # 85031482
Verical Conn Micro High Speed Terminal Strip HDR 156 POS 0.635mm Solder ST SMD Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 1663
  • 1 $27.6500
  • 10 $25.6100
  • 25 $23.5500
  • 50 $20.4800
  • 250 $16.3600
$16.3600 / $27.6500 Buy Now
DISTI # 69198279
Verical Conn Micro High Speed Terminal Strip HDR 156 POS 0.635mm Solder ST SMD Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2327 Americas - 715
  • 2 $43.2995
  • 10 $25.0978
  • 26 $23.0790
  • 52 $20.0704
  • 104 $17.0520
$17.0520 / $43.2995 Buy Now
Powell Electronics Connector Min Qty: 1 1329
  • 1 $27.6500
  • 10 $25.6100
  • 25 $23.5500
  • 50 $20.4800
  • 100 $17.4000
$17.4000 / $27.6500 Buy Now
DISTI # 000000000002500337
Sager Board to Board & Mezzanine Connectors ASP Min Qty: 1 1663
  • 1 $27.6500
  • 10 $25.6100
  • 25 $23.5500
  • 50 $20.4800
  • 100 $17.4000
  • 250 $16.3600
$16.3600 / $27.6500 Buy Now
Master Electronics Connector Array Receptacle RoHS: Compliant 737 In Stock
1663 Factory Stock
  • 1 $28.5300
  • 10 $15.4800
  • 26 $14.4600
  • 52 $13.7000
  • 104 $13.2900
  • 260 $13.2200
  • 520 $13.1500
$13.1500 / $28.5300 Buy Now
Vyrian Connectors 1308
RFQ

Part Details for ASP-129637-03

ASP-129637-03 Part Data Attributes

Parametric Data
ASP-129637-03 Samtec Inc
Buy Now Datasheet
Compare Parts:

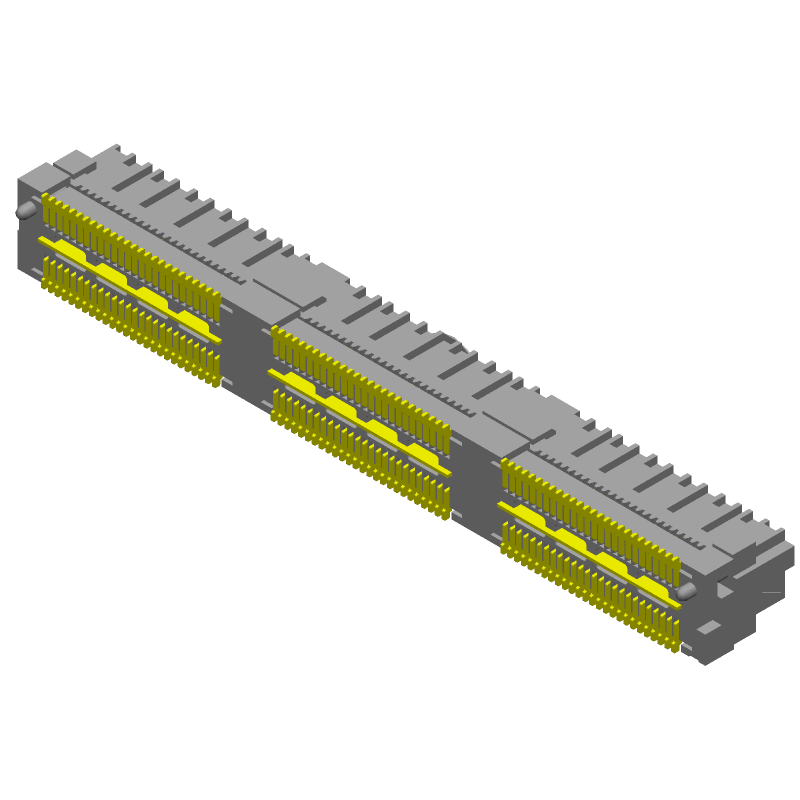

ASP-129637-03 Samtec Inc Board Stacking Connector, 156 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature POLARIZED
Body Breadth 0.286 inch
Body Depth 0.347 inch
Body Length 0.835 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD OVER NICKEL
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style CENTRONIC
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.025 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Option GENERAL PURPOSE
Terminal Pitch 0.64 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 156
