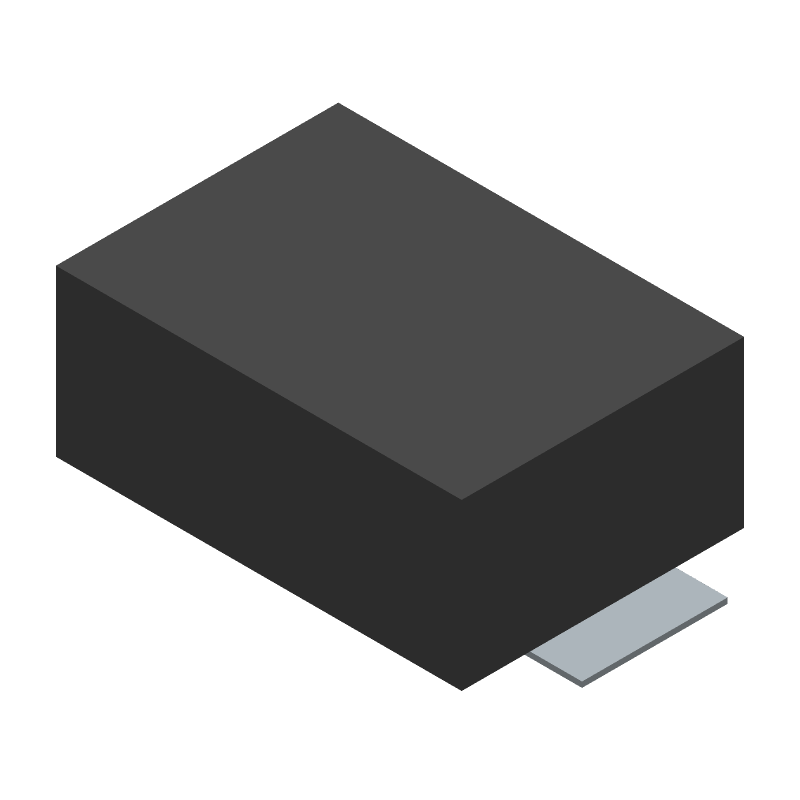

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASMD100F-2 by Littelfuse Inc
Results Overview of ASMD100F-2 by Littelfuse Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ASMD100F-2 Information
ASMD100F-2 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ASMD100F-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48W3306
|
Newark | Fuse, Ptc Reset, 30Vdc, 900Ma, Smd, Thermistor Mounting:Smd, Product Range:Polyswitch Series, Holding Current:900Ma, Tripping Current:2.16A, Voltage Rating:30Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Littelfuse ASMD100F-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6 |
|
$0.3010 | Buy Now |
|
DISTI #
ASMD100F-2CT-ND
|
DigiKey | PTC RESET FUSE 30V 900MA 2SMD Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
10377 In Stock |
|
$0.2901 / $0.7700 | Buy Now |
|
DISTI #
650-ASMD100F-2
|
Mouser Electronics | Resettable Fuses - PPTC .9A 30V SMD AEC-Q200 RoHS: Compliant | 4089 |
|
$0.2900 / $0.6400 | Buy Now |
|
DISTI #
P40:2555_16315998
|
Arrow Electronics | PTC Resettable Fuse 0.9A(hold) 2.16A(trip) 30VDC 40A 1.1W 20s 0.098Ohm SMD Solder Pad 7.9 X 5.4 X 3mm T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks Date Code: 2213 | Europe - 2000 |
|
$0.2786 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
DISTI #
ASMD100F-2
|
TTI | Resettable Fuses - PPTC .9A 30V SMD AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.3870 | Buy Now |
|
DISTI #
ASMD100F-2
|
IBS Electronics | PTC RESETTABLE FUSE 0.9A(HOLD) 2.16A(TRIP) 30V 40A 1.1W 20S 0.098OHM SMD SOLDER PAD 7.98 X 5.44 X 3MM T/R AUTOMOTIVE Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.3835 / $0.4030 | Buy Now |
|
|
LCSC | 30V 900mA 40A 2.16A SMD7.3x5.1mm Resettable Fuses ROHS | 20 |
|
$0.6213 / $1.0068 | Buy Now |
Part Details for ASMD100F-2
ASMD100F-2 CAD Models
ASMD100F-2 Part Data Attributes
|
|
ASMD100F-2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
ASMD100F-2
Littelfuse Inc
PTC Resettable Fuse
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmin@25 Deg Cel | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3 mm | |
| Package Length | 7.98 mm | |
| Package Style | SMT | |
| Package Width | 5.44 mm | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Reference Standard | AEC-Q200; TS 16949 | |
| Resistance | 0.098 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | FLAT | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 30 V |
