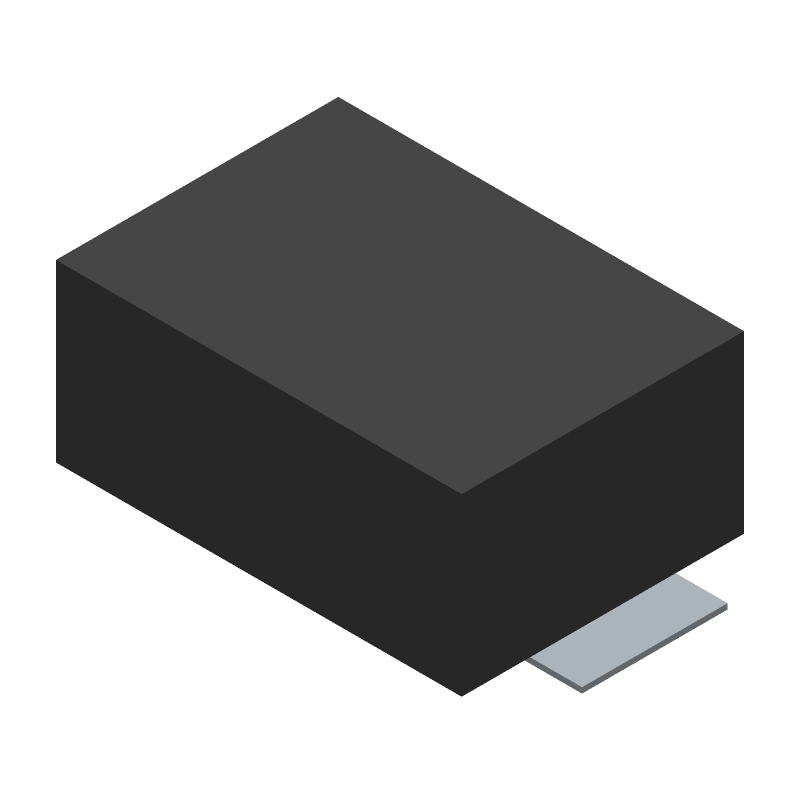

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASMD030F-2 by Littelfuse Inc
Results Overview of ASMD030F-2 by Littelfuse Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ASMD030F-2 Information
ASMD030F-2 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ASMD030F-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48W3303
|
Newark | Fuse, Ptc Reset, 60Vdc, 230Ma, Smd, Thermistor Mounting:Smd, Product Range:Polyswitch Series, Holding Current:230Ma, Tripping Current:590Ma, Voltage Rating:60Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Littelfuse ASMD030F-2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 260 |
|
$0.3160 / $0.6960 | Buy Now |
|
DISTI #
45P6509
|
Newark | Smd |Littelfuse ASMD030F-2 RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
ASMD030F-2CT-ND
|
DigiKey | PTC RESET FUSE 60V 230MA 2SMD Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
2935 In Stock |
|
$0.2901 / $0.7700 | Buy Now |
|
DISTI #
650-ASMD030F-2
|
Mouser Electronics | Resettable Fuses - PPTC .23A 60V SMD AEC-Q200 RoHS: Compliant | 2148 |
|
$0.2910 / $0.6400 | Buy Now |
|
|
Quest Components | PTC RESETTABLE FUSE, 60V, 0.98OHM, SURFACE MOUNT | 59 |
|
$0.5000 / $0.7500 | Buy Now |
|
DISTI #
ASMD030F-2
|
TTI | Resettable Fuses - PPTC .23A 60V SMD AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.3870 / $0.4020 | Buy Now |
Part Details for ASMD030F-2
ASMD030F-2 CAD Models
ASMD030F-2 Part Data Attributes
|
|
ASMD030F-2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
ASMD030F-2
Littelfuse Inc
PTC Resettable Fuse
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmin@25 Deg Cel | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.18 mm | |
| Package Length | 7.98 mm | |
| Package Style | SMT | |
| Package Width | 5.44 mm | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Reference Standard | AEC-Q200; TS 16949 | |
| Resistance | 0.98 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | FLAT | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 60 V |
ASMD030F-2 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for ASMD030F-2 can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To ensure reliability in high-temperature applications, it is recommended to derate the power rating of the ASMD030F-2 according to the temperature derating curve provided in the datasheet. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance.
-
Yes, the ASMD030F-2 can be used in high-frequency applications. However, it is recommended to consider the parasitic inductance and capacitance of the device, as well as the PCB layout, to minimize high-frequency losses and ensure optimal performance.
-
To select the correct ASMD030F-2 variant, consider the maximum voltage, current, and power requirements of your application. Refer to the datasheet and consult with a Littelfuse application engineer if necessary.
-
The ASMD030F-2 provides ESD protection up to ±30kV according to the IEC 61000-4-2 standard. However, the actual ESD protection capability may vary depending on the application and PCB layout.
