Oscillators / XO / ASEMPC-50.000MHZ-LR-T
Datasheets
ASEMPC-50.000MHZ-LR-T by: Abracon Corporation

MEMS OSC XO 50.0000MHZ CMOS SMD

Part Details for ASEMPC-50.000MHZ-LR-T by Abracon Corporation

Results Overview of ASEMPC-50.000MHZ-LR-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Healthcare Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Robotics and Drones

ASEMPC-50.000MHZ-LR-T Information

ASEMPC-50.000MHZ-LR-T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for ASEMPC-50.000MHZ-LR-T

Part # Distributor Description Stock Price Buy
DISTI # 51AK5799
Newark Mems Osc, 50Mhz, Cmos, 3.2Mm X 2.5Mm Rohs Compliant: Yes |Abracon ASEMPC-50.000MHZ-LR-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 800
  • 1,000 $2.2500
  • 2,000 $2.2400
  • 4,000 $2.2300
$2.2300 / $2.2500 Buy Now
DISTI # 48T0328
Newark Mems Oscillator, 50Mhz, 3.2 X 2.5Mm, Cmos, Frequency Nom:50Mhz, Oscillator Case:Smd, 3.2Mm X 2.5Mm, Frequency Stability +/-:25Ppm, Supply Voltage Nom:3.3V, Product Range:Pure Silicon Asemp Series, Operating Temperature Min:-40°C Rohs Compliant: Yes |Abracon ASEMPC-50.000MHZ-LR-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 500 $2.4600
$2.4600 Buy Now
DISTI # 535-9488-1-ND
DigiKey MEMS OSC XO 50.0000MHZ CMOS SMD Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4690
In Stock
  • 1 $3.3800
  • 10 $2.6470
  • 50 $2.2842
  • 100 $2.2191
  • 500 $2.1468
  • 1,000 $2.0919
  • 2,000 $2.0804
  • 3,000 $2.0745
$2.0745 / $3.3800 Buy Now
DISTI # ASEMPC-50.000MHZ-LR-T
Avnet Americas MEMS Oscillator, 50 MHz, SMD, 3.2mm x 2.5mm, 25 ppm, 3.3 V, ASEMP - Tape and Reel (Alt: ASEMPC-50.000MHZ-LR-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 1,000 $1.9218
  • 2,000 $1.8843
  • 4,000 $1.8530
  • 6,000 $1.5942
  • 8,000 $1.5859
$1.5859 / $1.9218 Buy Now
DISTI # 815-ASEMPC-50LR-T
Mouser Electronics Standard Clock Oscillators 50.000 MHZ CMOS SMD RoHS: Compliant 1497
  • 1 $3.3800
  • 10 $2.6500
  • 50 $2.2900
  • 100 $2.2200
  • 500 $2.1500
  • 1,000 $2.0900
  • 2,000 $2.0700
$2.0700 / $3.3800 Buy Now
Onlinecomponents.com MEMS Clock Oscillator - 50.000MHZ (+/-) 25ppm - CMOS Output - Tri-state - SMD - -40°C to +85°C - Tape&Reel RoHS: Compliant 1755 In Stock
1000 Factory Stock
  • 10 $2.6710
  • 50 $2.1010
  • 100 $2.0610
  • 250 $2.0290
  • 500 $2.0000
  • 750 $1.9900
  • 1,000 $1.9610
$1.9610 / $2.6710 Buy Now
DISTI # 78435099
Verical Oscillator MEMS 50MHz ±25ppm (Stability) CMOS 55% 2.5V/3.3V 4-Pin QFN SMD T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2347 Americas - 1750
  • 20 $3.4720
  • 50 $2.6820
  • 100 $2.5847
  • 250 $2.5031
  • 500 $2.4242
$2.4242 / $3.4720 Buy Now
DISTI # ASEMPC-50MHZ-LR-T
TTI Standard Clock Oscillators 50.000 MHZ CMOS SMD pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 0
  • 1,000 $1.9700
$1.9700 Buy Now
DISTI # ASEMPC-50.000MHZ-LR-T
IBS Electronics OSCILLATOR MEMS 50MHZ &#xB1, 25PPM (STABILITY) CMOS 55% 2.5V/3.3V 4-PIN QFN SMD T/R Min Qty: 10 Package Multiple: 1 1755
  • 10 $3.4723
  • 50 $2.7313
  • 100 $2.6793
  • 250 $2.6377
  • 500 $2.6000
  • 750 $2.5870
  • 1,000 $2.5493
$2.5493 / $3.4723 Buy Now
DISTI # ASEMPC-50.000MHZ-LR-T
Avnet Abacus MEMS Oscillator 50 MHz SMD 32mm x 25mm 25 ppm 33 V ASEMP - Tape and Reel (Alt: ASEMPC-50.000MHZ-LR-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics MEMS Clock Oscillator - 50.000MHZ (+/-) 25ppm - CMOS Output - Tri-state - SMD - -40°C to +85°C - Tape&Reel RoHS: Compliant 1755 In Stock
1000 Factory Stock
  • 10 $2.6710
  • 50 $2.1010
  • 100 $2.0610
  • 250 $2.0290
  • 500 $2.0000
  • 750 $1.9900
  • 1,000 $1.9610
$1.9610 / $2.6710 Buy Now

Part Details for ASEMPC-50.000MHZ-LR-T

ASEMPC-50.000MHZ-LR-T CAD Models

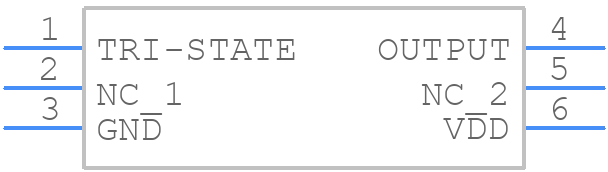

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

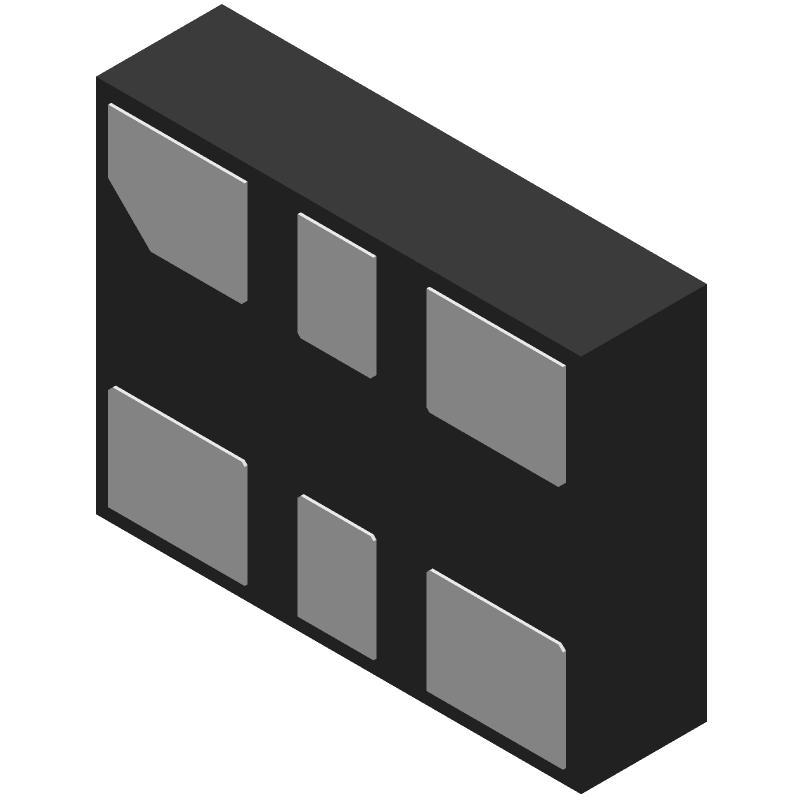

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ASEMPC-50.000MHZ-LR-T Part Data Attributes

Parametric Data
ASEMPC-50.000MHZ-LR-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ASEMPC-50.000MHZ-LR-T Abracon Corporation MEMS OSC XO 50.0000MHZ CMOS SMD
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.61
Factory Lead Time 8 Weeks
Samacsys Manufacturer ABRACON
Frequency Stability 25%
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Terminals 6
Operating Frequency-Max 170 MHz
Operating Frequency-Min 10 MHz
Operating Frequency-Nom 50 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type CMOS
Output Load 15 pF
Output Low Current-Max 6 mA
Package Body Material PLASTIC/EPOXY
Package Equivalence Code SOLCC6,.1,40
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Qualification Status Not Qualified
Supply Current-Max 35 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.25 V
Surface Mount YES
Symmetry-Max 55/45 %
Technology CMOS
Terminal Finish NICKEL PALLADIUM GOLD

ASEMPC-50.000MHZ-LR-T Related Parts

ASEMPC-50.000MHZ-LR-T Frequently Asked Questions (FAQ)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.

  • Yes, the ASEMPC-50.000MHZ-LR-T is designed to withstand vibrations up to 20G. However, it's crucial to ensure proper mounting and soldering to prevent mechanical stress on the component.

  • Abracon recommends storing ASEMPC-50.000MHZ-LR-T in a dry, cool place with a relative humidity of 60% or less. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.

  • Yes, the ASEMPC-50.000MHZ-LR-T is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.

  • The typical power consumption of ASEMPC-50.000MHZ-LR-T is negligible, as it's a passive component. However, the power consumption of the surrounding circuitry should be considered when designing the overall system.
