Oscillators / XO / ASE-25.000MHZ-L-C-T
Datasheets
ASE-25.000MHZ-L-C-T by: Abracon Corporation

CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

Part Details for ASE-25.000MHZ-L-C-T by Abracon Corporation

Results Overview of ASE-25.000MHZ-L-C-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

ASE-25.000MHZ-L-C-T Information

ASE-25.000MHZ-L-C-T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for ASE-25.000MHZ-L-C-T

Part # Distributor Description Stock Price Buy
DISTI # 61AK1175
Newark Osc, 25Mhz, Lvcmos, Smd, 3.2Mm X 2.5Mm Rohs Compliant: Yes |Abracon ASE-25.000MHZ-L-C-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 4000
  • 1,000 $1.1300
$1.1300 Buy Now
DISTI # 535-ASE-25.000MHZ-L-C-TCT-ND
DigiKey XTAL OSC XO 25.0000MHZ CMOS SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 68670
In Stock
  • 1 $0.9900
  • 10 $0.8570
  • 50 $0.8172
  • 100 $0.7943
  • 500 $0.7356
  • 1,000 $0.6932
$0.6932 / $0.9900 Buy Now
DISTI # ASE-25.000MHZ-L-C-T
Avnet Americas Oscillator, 25 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, ASE Series - Tape and Reel (Alt: ASE-25.000MHZ-L-C-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 7000
  • 1,000 $1.0320
  • 2,000 $1.0160
  • 4,000 $1.0000
  • 6,000 $0.7170
  • 8,000 $0.7054
$0.7054 / $1.0320 Buy Now
DISTI # 815-ASE-25.000MLCT
Mouser Electronics Standard Clock Oscillators 25.0 MHZ 3.3V 50PPM RoHS: Compliant 6709
  • 1 $0.9900
  • 10 $0.9600
$0.9600 / $0.9900 Buy Now
Future Electronics 25 MHz 3.3 V ±50ppm CMOS Compatible 3.2 x 2.5mm Crystal Oscillator RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel 136000
Reel
  • 1,000 $0.3800
$0.3800 Buy Now
Future Electronics 25 MHz 3.3 V ±50ppm CMOS Compatible 3.2 x 2.5mm Crystal Oscillator RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Tray 0
Tray
  • 1,000 $0.4850
$0.4850 Buy Now
Onlinecomponents.com SMD Crystal Oscillator - 25.000MHZ - Stability: ±50ppm -40°C to +85°C - 3.3V - Tape&Reel RoHS: Compliant 6630 In Stock
  • 1,000 $0.6760
  • 3,000 $0.6730
  • 5,000 $0.6700
  • 8,000 $0.6660
  • 10,000 $0.6630
  • 15,000 $0.6600
  • 25,000 $0.6560
$0.6560 / $0.6760 Buy Now
DISTI # ASE-25.000MHZ-LC-T
TTI Standard Clock Oscillators 25.0 MHZ 3.3V 50PPM RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 65000
In Stock
  • 1,000 $0.4750
$0.4750 Buy Now
Future Electronics 25 MHz 3.3 V �50ppm CMOS Compatible 3.2 x 2.5mm Crystal Oscillator Min Qty: 1000 Package Multiple: 1000 138000
null
  • 1,000 $0.3800
$0.3800 Buy Now
Master Electronics SMD Crystal Oscillator - 25.000MHZ - Stability: ±50ppm -40°C to +85°C - 3.3V - Tape&Reel RoHS: Compliant 6630 In Stock
  • 1,000 $0.6760
  • 3,000 $0.6730
  • 5,000 $0.6700
  • 8,000 $0.6660
  • 10,000 $0.6630
  • 15,000 $0.6600
  • 25,000 $0.6560
$0.6560 / $0.6760 Buy Now
New Advantage Corporation ASE Series 25 MHz 3.2 x 2.5 mm 3.3 V �50 ppm SMT Crystal Clock Oscillator RoHS: Compliant Min Qty: 1 Package Multiple: 1000 182000
  • 1,000 $0.7333
  • 182,000 $0.6769
$0.6769 / $0.7333 Buy Now
Vyrian Oscillators 30299
RFQ

Part Details for ASE-25.000MHZ-L-C-T

ASE-25.000MHZ-L-C-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

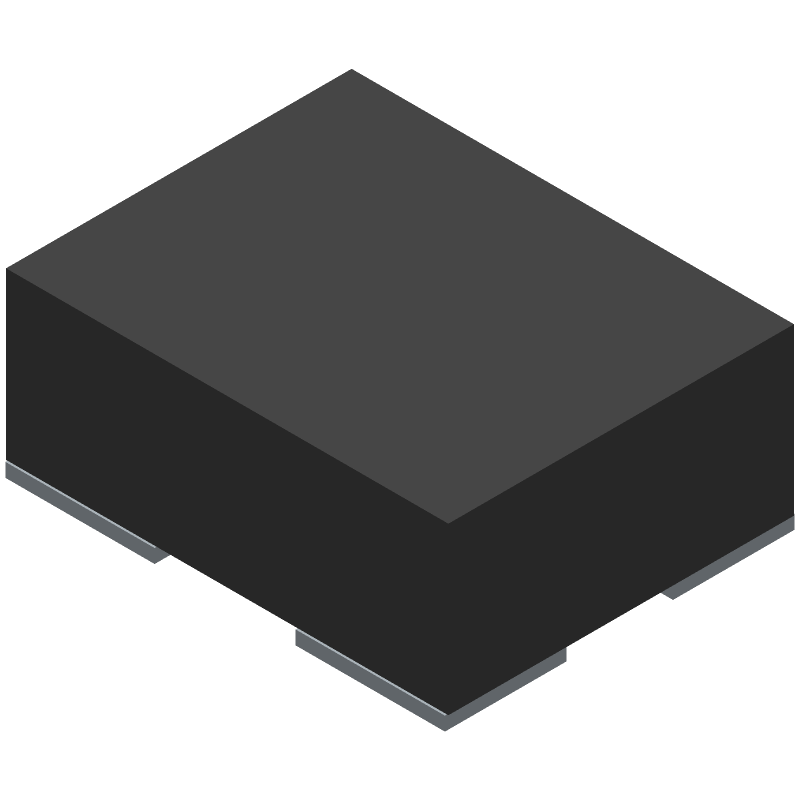

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ASE-25.000MHZ-L-C-T Part Data Attributes

Parametric Data
ASE-25.000MHZ-L-C-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ASE-25.000MHZ-L-C-T Abracon Corporation CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 4 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Package Description ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.60.00.60
Factory Lead Time 10 Weeks
Samacsys Manufacturer ABRACON
Additional Feature TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Fall Time-Max 4 ns
Frequency Adjustment-Mechanical NO
Frequency Stability 50%
Mounting Feature SURFACE MOUNT
Number of Terminals 4
Operating Frequency-Nom 25 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type CMOS
Output Load 15 pF
Physical Dimension 3.2mm x 2.5mm x 1.2mm
Rise Time-Max 4 ns
Supply Voltage-Max 3.465 V
Supply Voltage-Min 3.135 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Symmetry-Max 55/45 %

ASE-25.000MHZ-L-C-T Related Parts

ASE-25.000MHZ-L-C-T Frequently Asked Questions (FAQ)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, ASE-25.000MHZ-L-C-T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The maximum operating temperature range for ASE-25.000MHZ-L-C-T is -40°C to +85°C.

  • Yes, ASE-25.000MHZ-L-C-T is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.

  • The typical frequency stability of ASE-25.000MHZ-L-C-T over temperature is ±20 ppm from -40°C to +85°C.
