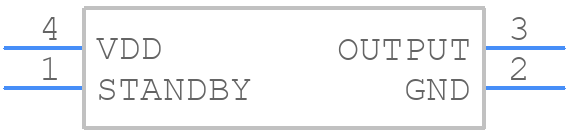

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASDMB-25.000MHZ-XY by Abracon Corporation
Results Overview of ASDMB-25.000MHZ-XY by Abracon Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ASDMB-25.000MHZ-XY Information
ASDMB-25.000MHZ-XY by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ASDMB-25.000MHZ-XY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ASDMB-25.000MHZ-XY
|
Avnet Americas | MEMS Clock Oscillator LVCMOS 25MHz 1.8V/2.5V/3.3V 15pF ?10ppm 4-Pin QFN Tube - Bulk (Alt: ASDMB-25.000MHZ-XY) RoHS: Not Compliant Min Qty: 30 Package Multiple: 10 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
|
Vyrian | Oscillators | 1204 |
|
RFQ |
Part Details for ASDMB-25.000MHZ-XY
ASDMB-25.000MHZ-XY CAD Models
ASDMB-25.000MHZ-XY Part Data Attributes
|
|
ASDMB-25.000MHZ-XY
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ASDMB-25.000MHZ-XY
Abracon Corporation
XO, Clock, 1MHz Min, 150MHz Max, 25MHz Nom, CMOS,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Package Description | QFN, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.61 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | STANDBY;TRI-STATE; ENABLE/DISABLE FUNCTION; TUBE; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 10% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Max | 150 MHz | |
| Operating Frequency-Min | 1 MHz | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CMOS | |
| Output Load | 10 KOHM, 15 pF | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | DILCC4,.08,65 | |
| Physical Dimension | 2.5mm x 2.0mm x 0.85mm | |
| Qualification Status | Not Qualified | |
| Rise Time-Max | 2 ns | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Technology | CMOS | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
Alternate Parts for ASDMB-25.000MHZ-XY
This table gives cross-reference parts and alternative options found for ASDMB-25.000MHZ-XY. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASDMB-25.000MHZ-XY, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
