Memory / DRAMs / AS4C8M16SA-6TCN
Datasheets
AS4C8M16SA-6TCN by: Alliance Memory Inc

Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54

Part Details for AS4C8M16SA-6TCN by Alliance Memory Inc

Results Overview of AS4C8M16SA-6TCN by Alliance Memory Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage Entertainment and Gaming

AS4C8M16SA-6TCN Information

AS4C8M16SA-6TCN by Alliance Memory Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for AS4C8M16SA-6TCN

Part # Distributor Description Stock Price Buy
DISTI # 82AK3831
Newark Dram, 166Mhz, 128Mbit, Tsop-Ii-54, Dram Type:Sdram, Memory Configuration:8M X 16Bit, Clock Frequency Max:166Mhz, Ic Case/Package:Tsop-Ii, No. Of Pins:54Pins, Supply Voltage Nom:3.3V, Ic Mounting:Surface Mount, Product Range:- Rohs Compliant: Yes |Alliance Memory AS4C8M16SA-6TCN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 108
  • 1 $1.8300
  • 10 $1.8300
  • 25 $1.8300
  • 50 $1.8300
  • 100 $1.8300
  • 250 $1.8300
  • 500 $1.8300
$1.8300 Buy Now
DISTI # 1450-1266-ND
DigiKey IC DRAM 128MBIT PAR 54TSOP II Min Qty: 1 Lead time: 6 Weeks Container: Tray 980
In Stock
  • 1 $3.0600
  • 10 $2.8550
  • 25 $2.7712
  • 40 $2.7283
  • 108 $2.6371
  • 324 $2.5368
  • 540 $2.4906
  • 972 $2.4379
$2.4379 / $3.0600 Buy Now
DISTI # 913-4C8M16SA-6TCN
Mouser Electronics DRAM SDRAM, 128Mb, 8M x 16, 3.3V, 54pin TSOP II, 166 Mhz, Commercial temp - Tray RoHS: Compliant 185
  • 1 $3.0600
  • 10 $2.8600
  • 25 $2.7300
  • 108 $2.6400
  • 216 $2.5300
  • 540 $2.4300
  • 1,080 $2.4100
  • 2,592 $2.3900
$2.3900 / $3.0600 Buy Now
Future Electronics AS4C4M16SA Series 128 Mb (8 M x 16) A-die 3.3V 166 MHz SDRAM - TSOP II-54 Min Qty: 1080 Package Multiple: 1080 2
null
  • 108 $1.9000
$1.9000 Buy Now
DISTI # AS4C8M16SA-6TCN
TME IC: DRAM memory, 128MbDRAM, 2Mx16bitx4, 3.3V, 166MHz, 5.4ns, 0÷70°C Min Qty: 1 0
  • 1 $3.5000
  • 3 $3.2500
  • 10 $2.9200
  • 25 $2.6400
  • 108 $2.0800
$2.0800 / $3.5000 RFQ
DISTI # AS4C8M16SA-6TCN
Avnet Asia DRAM Chip SDRAM 128M-Bit 8Mx16 3.3V 54-Pin TSOP-II (Alt: AS4C8M16SA-6TCN) RoHS: Compliant Min Qty: 1080 Package Multiple: 108 Lead time: 6 Weeks, 0 Days 0
RFQ
DISTI # AS4C8M16SA-6TCN
Avnet Silica DRAM Chip SDRAM 128MBit 8Mx16 33V 54Pin TSOPII (Alt: AS4C8M16SA-6TCN) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now

Part Details for AS4C8M16SA-6TCN

AS4C8M16SA-6TCN CAD Models

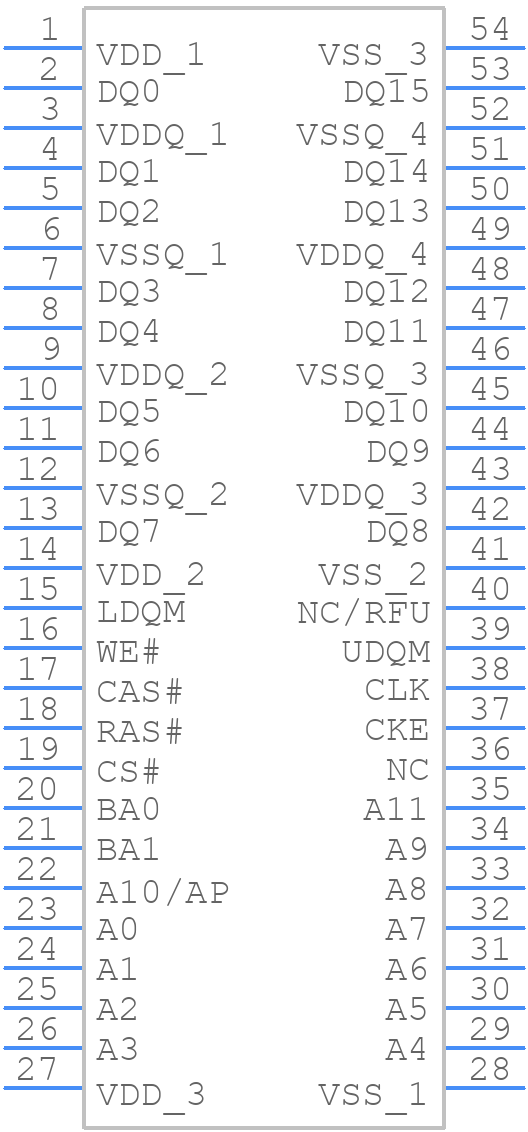

  • Part Symbol

    Part Symbol

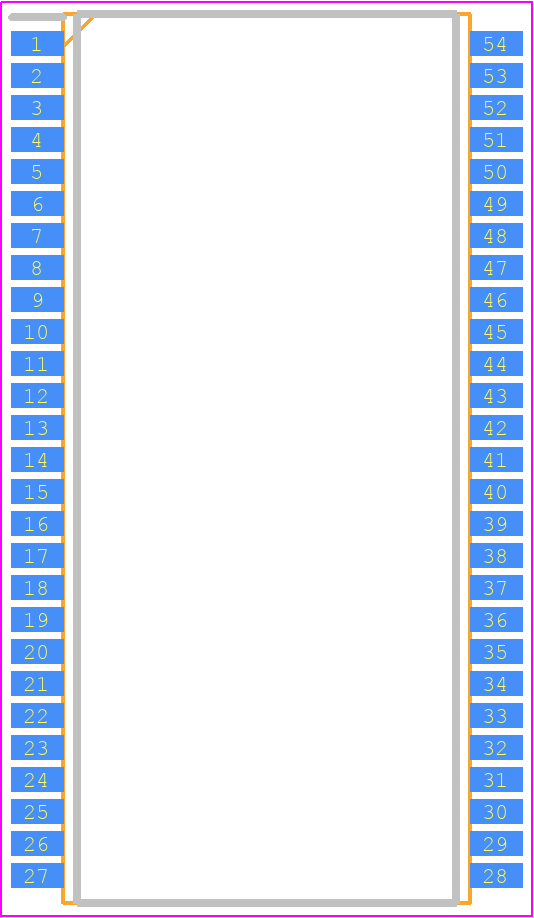

  • Footprint

    footprint

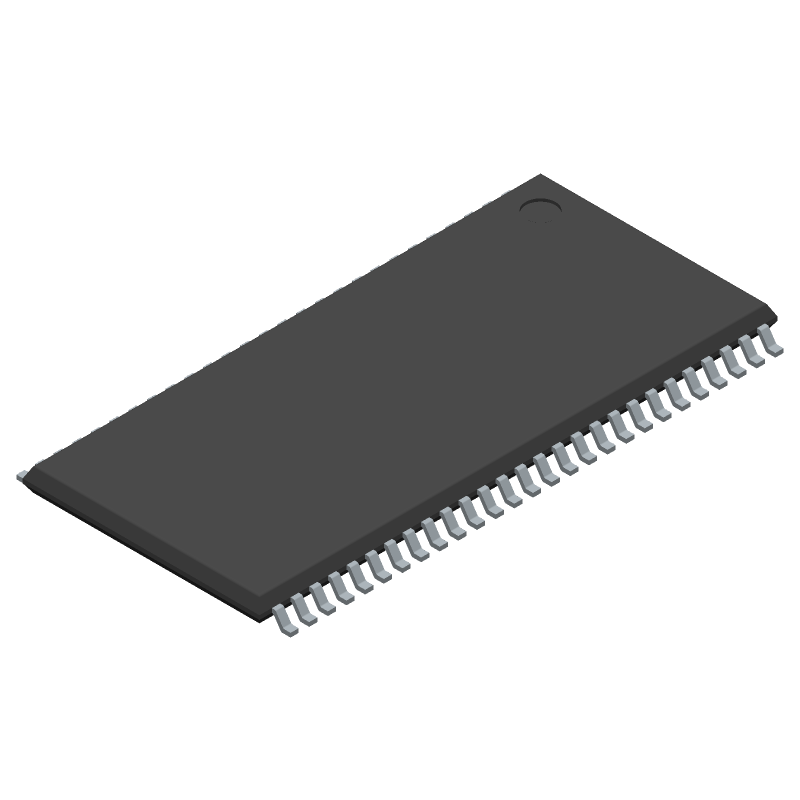

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AS4C8M16SA-6TCN Part Data Attributes

Parametric Data
AS4C8M16SA-6TCN Alliance Memory Inc
Buy Now Datasheet
Compare Parts:
AS4C8M16SA-6TCN Alliance Memory Inc Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ALLIANCE MEMORY INC
Package Description 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.02
Samacsys Manufacturer Alliance Memory
Access Mode FOUR BANK PAGE BURST
Access Time-Max 5 ns
Additional Feature AUTO/SELF REFRESH
JESD-30 Code R-PDSO-G54
JESD-609 Code e3
Length 22.22 mm
Memory Density 134217728 bit
Memory IC Type SYNCHRONOUS DRAM
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words 8388608 words
Number of Words Code 8000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 8MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Seated Height-Max 1.2 mm
Self Refresh YES
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm

Alternate Parts for AS4C8M16SA-6TCN

This table gives cross-reference parts and alternative options found for AS4C8M16SA-6TCN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AS4C8M16SA-6TCN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
K4S281632D-TL55 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632D-TL55
AS4C8M16S-6TANTR Alliance Memory Inc Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs AS4C8M16S-6TANTR
M12L128168A-6TG2L Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 AS4C8M16SA-6TCN vs M12L128168A-6TG2L
NT5SV8M16HS-6KI Nanya Technology Corporation Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSOP2-54 AS4C8M16SA-6TCN vs NT5SV8M16HS-6KI
K4S281632F-TL600 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632F-TL600
K4S281632K-UL600 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, HALOGEN FREE AND ROHS COMPLIANT, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632K-UL600
K4S281632D-TP60 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632D-TP60
IS42SM16800E-5TL Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, LEAD FREE, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs IS42SM16800E-5TL
K4S281632D-TL550 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632D-TL550
K4S281632D-TC55 Samsung Semiconductor Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs K4S281632D-TC55
Part Number Manufacturer Composite Price Description Compare
NT5SV8M16FT-75BI Nanya Technology Corporation Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, 0.400 MM, PLASTIC, TSSOP2-54 AS4C8M16SA-6TCN vs NT5SV8M16FT-75BI
K4S280432A-TL1L0 Samsung Semiconductor Check for Price Synchronous DRAM, 32MX4, 6ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs K4S280432A-TL1L0
KM44S32030BT-FH Samsung Semiconductor Check for Price Synchronous DRAM, 32MX4, 6ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C8M16SA-6TCN vs KM44S32030BT-FH
IS45S16800B-7TA Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs IS45S16800B-7TA
IS42SM16800E-5TLI Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 8MX16, 5ns, CMOS, PDSO54, LEAD FREE, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs IS42SM16800E-5TLI
TC59SM716ASL-80 Toshiba America Electronic Components Check for Price IC 8M X 16 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.40 MM PITCH. PLASTIC, TSOP2-54, Dynamic RAM AS4C8M16SA-6TCN vs TC59SM716ASL-80
V54C3128164VCI7IPC ProMOS Technologies Inc Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs V54C3128164VCI7IPC
V54C3128404VCI7E ProMOS Technologies Inc Check for Price Synchronous DRAM, 32MX4, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSOP2-54 AS4C8M16SA-6TCN vs V54C3128404VCI7E
V54C3128164VBLI-7IPC ProMOS Technologies Inc Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, GREEN, TSOP2-54 AS4C8M16SA-6TCN vs V54C3128164VBLI-7IPC
IS45S16800E-7TLA2 Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 8MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, TSOP2-54 AS4C8M16SA-6TCN vs IS45S16800E-7TLA2

AS4C8M16SA-6TCN Related Parts

AS4C8M16SA-6TCN Frequently Asked Questions (FAQ)

  • The AS4C8M16SA-6TCN has an operating temperature range of -40°C to 85°C.

  • The device requires a stable power supply during power-up and power-down sequences. It's recommended to follow a slow power ramp-up and ramp-down sequence to ensure proper operation.

  • A decoupling capacitor of 0.1uF to 1uF is recommended to be placed as close as possible to the power pins of the device.

  • The AS4C8M16SA-6TCN is designed to operate at 3.3V, but it can tolerate a voltage range of 3.0V to 3.6V. However, operating the device outside of its recommended voltage range may affect its performance and reliability.

  • To ensure data retention during power-down, the device must be powered down slowly (typically within 10ms) to allow the internal voltage regulator to discharge properly.
