Memory / DRAMs / AS4C16M16SA-7TCNTR
Datasheets
AS4C16M16SA-7TCNTR by:

IC SDRAM 256MBIT 143MHZ 54TSOP

Part Details for AS4C16M16SA-7TCNTR by Alliance Memory Inc

Results Overview of AS4C16M16SA-7TCNTR by Alliance Memory Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage

AS4C16M16SA-7TCNTR Information

AS4C16M16SA-7TCNTR by Alliance Memory Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for AS4C16M16SA-7TCNTR

Part # Distributor Description Stock Price Buy
DISTI # 85AK6883
Newark Sdr, 256M, 16M X 16, 3.3V, 54Pin Tsop Ii, 143Mhz, Commerical Temp(.63) Tape And Reel, A Die |Alliance Memory AS4C16M16SA-7TCNTR RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $3.5300
$3.5300 Buy Now
DISTI # AS4C16M16SA-7TCNTR-ND
DigiKey IC DRAM 256MBIT PAR 54TSOP II Min Qty: 1000 Lead time: 8 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $3.1835
$3.1835 Buy Now
DISTI # AS4C16M16SA-7TCNTR
Avnet Americas DRAM Chip SDRAM 256M-Bit 16M x 16 3.3V 54-Pin TSOP-II T/R - Tape and Reel (Alt: AS4C16M16SA-7TCNTR) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel 45000 Factory Stock
  • 1,000 $2.6855
  • 2,000 $2.6445
  • 4,000 $2.6035
  • 6,000 $2.5000
  • 8,000 $2.4600
$2.4600 / $2.6855 Buy Now
DISTI # 913-4C16M16SA-7TCNTR
Mouser Electronics DRAM SDR, 256M, 16M x 16, 3.3V, 54pin TSOP II, 143Mhz, Commerical Temp(.63) Tape and Reel, A Die RoHS: Compliant 7
  • 1 $4.3000
  • 10 $3.9000
  • 100 $3.4100
  • 250 $3.3900
  • 500 $3.2700
  • 1,000 $3.0200
  • 2,000 $2.9400
$2.9400 / $4.3000 Buy Now
DISTI # AS4C16M16SA-7TCNTR
TME IC: DRAM memory, 256MbDRAM, 16Mx16bit, 3.3V, 143MHz, 5.4ns, 0÷70°C Min Qty: 1 2394
  • 1 $4.5600
  • 5 $4.1700
  • 25 $3.9700
  • 100 $3.5800
  • 250 $3.3800
  • 1,000 $3.1600
$3.1600 / $4.5600 Buy Now
DISTI # AS4C16M16SA-7TCNTR
IBS Electronics SURFACE MOUNT TAPE &amp, REEL (TR) SDRAM DRAM IC MEMORY 166MHZ 5.4NS 256MB 16M X 16 3V~3.6V Min Qty: 1000 Package Multiple: 1 0
  • 1,000 $3.0680
$3.0680 Buy Now
Karl Kruse GmbH & Co KG SDR 256M 16M x 16 3.3V 54pin TSOP II 143Mhz Commerical Temp(.63) Tape and Reel 45000
RFQ
DISTI # AS4C16M16SA-7TCNTR
Avnet Silica DRAM Chip SDRAM 256MBit 16M x 16 33V 54Pin TSOPII TR (Alt: AS4C16M16SA-7TCNTR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock   2143
RFQ

Part Details for AS4C16M16SA-7TCNTR

AS4C16M16SA-7TCNTR CAD Models

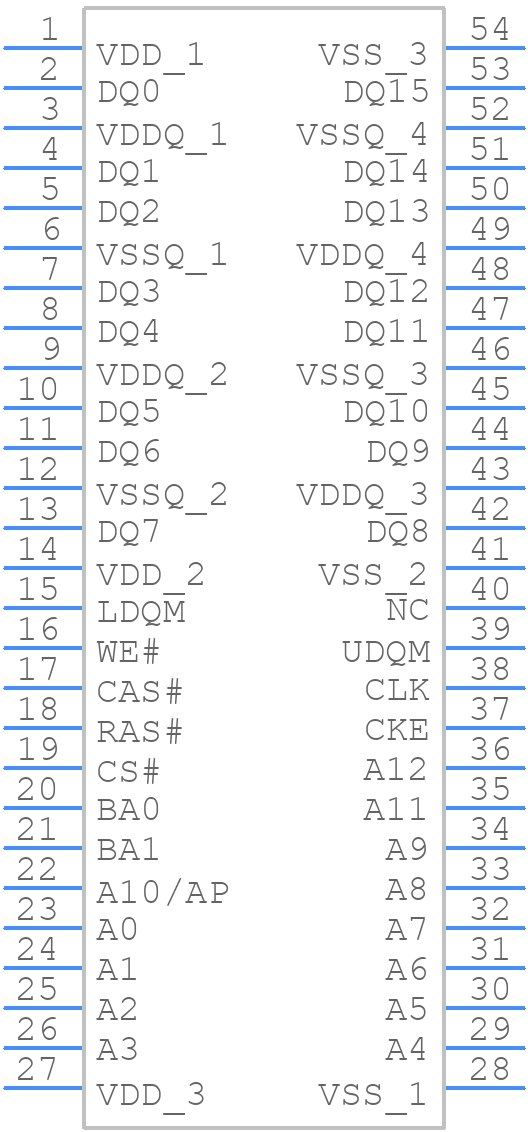

  • Part Symbol

    Part Symbol

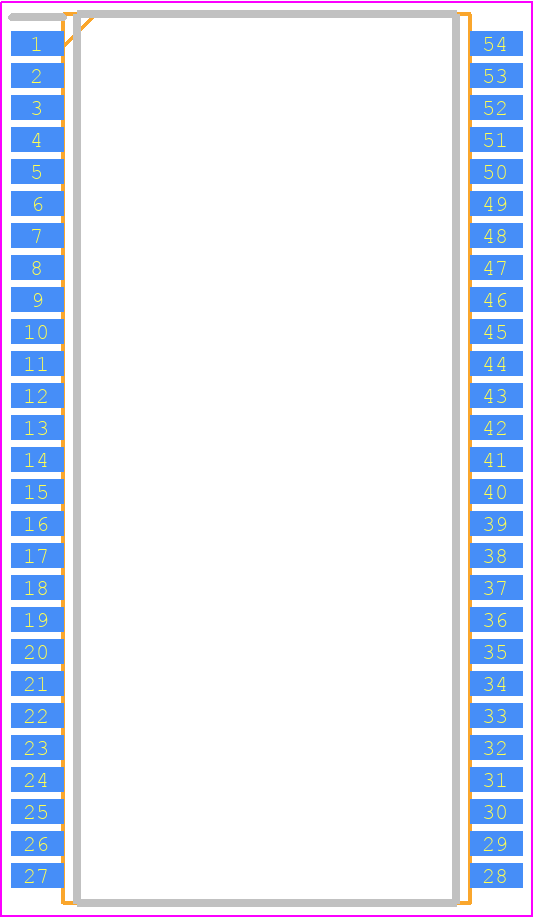

  • Footprint

    footprint

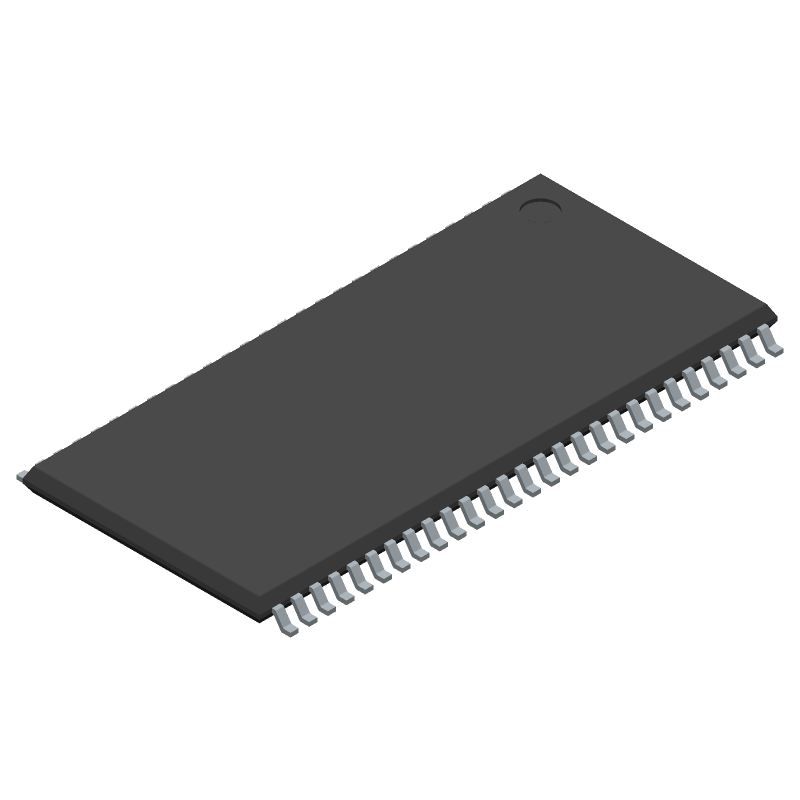

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AS4C16M16SA-7TCNTR Part Data Attributes

Parametric Data
AS4C16M16SA-7TCNTR Alliance Memory Inc
Buy Now Datasheet
Compare Parts:
AS4C16M16SA-7TCNTR Alliance Memory Inc IC SDRAM 256MBIT 143MHZ 54TSOP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ALLIANCE MEMORY INC
Package Description TSOP2-54
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.24
Factory Lead Time 8 Weeks
Samacsys Manufacturer Alliance Memory
Access Mode FOUR BANK PAGE BURST
Access Time-Max 5.4 ns
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (fCLK) 143 MHz
I/O Type COMMON
Interleaved Burst Length 1,2,4,8
JESD-30 Code R-PDSO-G54
Length 22.22 mm
Memory Density 268435456 bit
Memory IC Type SYNCHRONOUS DRAM
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words 16777216 words
Number of Words Code 16000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 16MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP54,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Refresh Cycles 8192
Seated Height-Max 1.2 mm
Self Refresh YES
Sequential Burst Length 1,2,4,8,FP
Standby Current-Max 0.02 A
Supply Current-Max 0.055 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm

Alternate Parts for AS4C16M16SA-7TCNTR

This table gives cross-reference parts and alternative options found for AS4C16M16SA-7TCNTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AS4C16M16SA-7TCNTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AS4C16M16SA-7TCN Alliance Memory Inc $2.6112 Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs AS4C16M16SA-7TCN
M12L2561616A-7TG2K Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 AS4C16M16SA-7TCNTR vs M12L2561616A-7TG2K
M12L2561616A-7TIG2A Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 AS4C16M16SA-7TCNTR vs M12L2561616A-7TIG2A
M12L2561616A-7TIG2S Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT, TSOP2-54 AS4C16M16SA-7TCNTR vs M12L2561616A-7TIG2S
Part Number Manufacturer Composite Price Description Compare
AS4C16M16SA-6TIN Alliance Memory Inc $3.6332 Synchronous DRAM, 16MX16, 5ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs AS4C16M16SA-6TIN
M12L2561616A-6TIG2S Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT, TSOP2-54 AS4C16M16SA-7TCNTR vs M12L2561616A-6TIG2S
K4S561632C-TI7C Samsung Semiconductor Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C16M16SA-7TCNTR vs K4S561632C-TI7C
K4S561632C-TE75 Samsung Semiconductor Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 AS4C16M16SA-7TCNTR vs K4S561632C-TE75
V54C3256164VGLI-6PC ProMOS Technologies Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSSOP2-54 AS4C16M16SA-7TCNTR vs V54C3256164VGLI-6PC
V54C3256164VDUI7I ProMOS Technologies Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs V54C3256164VDUI7I
HYB39S256160FEL-6 Qimonda AG Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs HYB39S256160FEL-6
AS4C16M16S-6TINTR Alliance Memory Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs AS4C16M16S-6TINTR
V54C3256164VHLI6I ProMOS Technologies Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, GREEN, PLASTIC, TSOP2-54 AS4C16M16SA-7TCNTR vs V54C3256164VHLI6I
IS42S16160C-7TLI Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 AS4C16M16SA-7TCNTR vs IS42S16160C-7TLI

AS4C16M16SA-7TCNTR Frequently Asked Questions (FAQ)

  • The AS4C16M16SA-7TCNTR has an operating temperature range of 0°C to 70°C.

  • The AS4C16M16SA-7TCNTR requires a refresh cycle every 64ms, with a minimum of 8192 refreshes within an 64ms interval.

  • The AS4C16M16SA-7TCNTR supports a maximum clock frequency of 143MHz.

  • After power-up, the AS4C16M16SA-7TCNTR requires a minimum of 200us delay before applying clock signals, followed by a minimum of 8 clock cycles of NOP commands to initialize the device.

  • The AS4C16M16SA-7TCNTR has a latency of 7 clock cycles (CL7).
