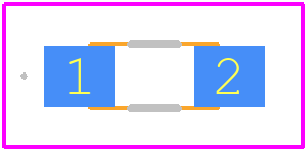

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for APT3216EC by Kingbright
Results Overview of APT3216EC by Kingbright
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
APT3216EC Information
APT3216EC by Kingbright is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for APT3216EC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
754-1137-1-ND
|
DigiKey | LED RED CLEAR CHIP SMD Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
28998 In Stock |
|
$0.0577 / $0.2500 | Buy Now |
|
DISTI #
70062855
|
RS | APT3216EC Red LED, 617 nm 3216 (1206) Clear, Rectangle Lens SMD package Min Qty: 2000 Package Multiple: 1 Container: Bulk | 27 |
|
$0.1500 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,ORANGE,WATER CLEAR,LED-8D | 275 |
|
$0.0920 / $0.1472 | Buy Now |
|
DISTI #
APT3216EC
|
TTI | Single Color LEDs HI EFF RED WTR CLR RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 22000 In Stock |
|
$0.0540 / $0.0750 | Buy Now |
|
DISTI #
000000000000997486
|
Sager | Standard LEDs - SMD HI EFF RED WTR CLR Min Qty: 4000 | 0 |
|
$0.0430 / $0.0550 | Buy Now |
Part Details for APT3216EC
APT3216EC CAD Models
APT3216EC Part Data Attributes
|
|
APT3216EC
Kingbright
Buy Now
Datasheet
|
Compare Parts:
APT3216EC
Kingbright
Single Color LED, High Efficiency Red, Water Clear, 2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KINGBRIGHT ELECTRONIC CO LTD | |
| Package Description | 3.20 X 1.60 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Kingbright | |
| Color | HIGH EFFICIENCY RED | |
| Color@Wavelength | Orange | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 2.5 V | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 12.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.75 mm | |
| Packing Method | TR | |
| Peak Wavelength | 627 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 2 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 3.75 mm | |
| Viewing Angle | 120 deg |
APT3216EC Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for APT3216EC is -40°C to 100°C.
-
Yes, APT3216EC is suitable for outdoor applications, but it's recommended to use a suitable enclosure to protect it from environmental factors like moisture, dust, and extreme temperatures.
-
The maximum forward current rating for APT3216EC is 30mA. Exceeding this rating may reduce the lifespan of the device or cause it to fail.
-
Yes, APT3216EC is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
-
The typical junction temperature range for APT3216EC is -40°C to 125°C. Operating the device outside this range may affect its performance or lifespan.
