APT2X101S20J Information
APT2X101S20J by Microchip Technology Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for APT2X101S20J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AH5690
|
Newark | Schottky Discrete Rectifier 200 V 100 A Dual Parallel Sot-227 4 Sot-227 Tube Rohs Compliant: Yes |Microchip APT2X101S20J RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$22.9800 / $28.3200 | Buy Now |
|
DISTI #
APT2X101S20J-ND
|
DigiKey | DIODE MOD SCHOT 200V 120A ISOTOP Min Qty: 1 Lead time: 20 Weeks Container: Tube |
917 In Stock |
|
$22.9875 / $28.3200 | Buy Now |
|
DISTI #
APT2X101S20J
|
Avnet Americas | Diode Schottky 200V 120A 4-Pin SOT-227 - Rail/Tube (Alt: APT2X101S20J) RoHS: Compliant Min Qty: 20 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Tube | 0 |
|
$22.9800 / $28.3200 | Buy Now |
|
DISTI #
494-APT2X101S20J
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY Discrete Rectifier 200 V 100 A Dual Parallel SOT-227 RoHS: Compliant | 271 |
|
$24.4600 / $28.3200 | Buy Now |
|
DISTI #
APT2X101S20J
|
Microchip Technology Inc | SCHOTTKY Discrete Rectifier 200 V 100 A Dual Parallel SOT-227, SOT-227, Projected EOL: 2044-04-30 COO: Philippines ECCN: EAR99 RoHS: Not Compliant Lead time: 20 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$21.7000 / $28.3200 | Buy Now |
|
|
Onlinecomponents.com | Rectifier Diode Schottky 200V 120A 70ns 4-Pin SOT-227 Tube RoHS: Compliant |
60 In Stock |
|
$22.2000 / $29.2000 | Buy Now |
|
DISTI #
86217662
|
Verical | Diode Schottky 200V 120A 4-Pin SOT-227 Tube RoHS: Not Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2407 | Americas - 60 |
|
$28.9510 / $34.0340 | Buy Now |
|
DISTI #
APT2X101S20J
|
TME | Module: diode, double independent, 200V, If: 120Ax2, SOT227B, screw Min Qty: 1 | 0 |
|
$42.0800 / $52.9200 | RFQ |
|
DISTI #
APT2X101S20J
|
IBS Electronics | APT2X101S20J SERIES 200 V 120 A SURFACE MOUNT SCHOTTKY DIODE - SOT-227 Min Qty: 1 Package Multiple: 1 | 60 |
|
$28.0930 / $34.0340 | Buy Now |
|
|
NAC | FG, SCHOTTKY, 200V, 100A, SOT-227 RoHS: Compliant Min Qty: 13 Package Multiple: 1 Container: Tube | 0 |
|
$22.4300 / $26.2700 | Buy Now |
Part Details for APT2X101S20J
APT2X101S20J CAD Models
APT2X101S20J Part Data Attributes
|
|
APT2X101S20J
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
APT2X101S20J
Microchip Technology Inc

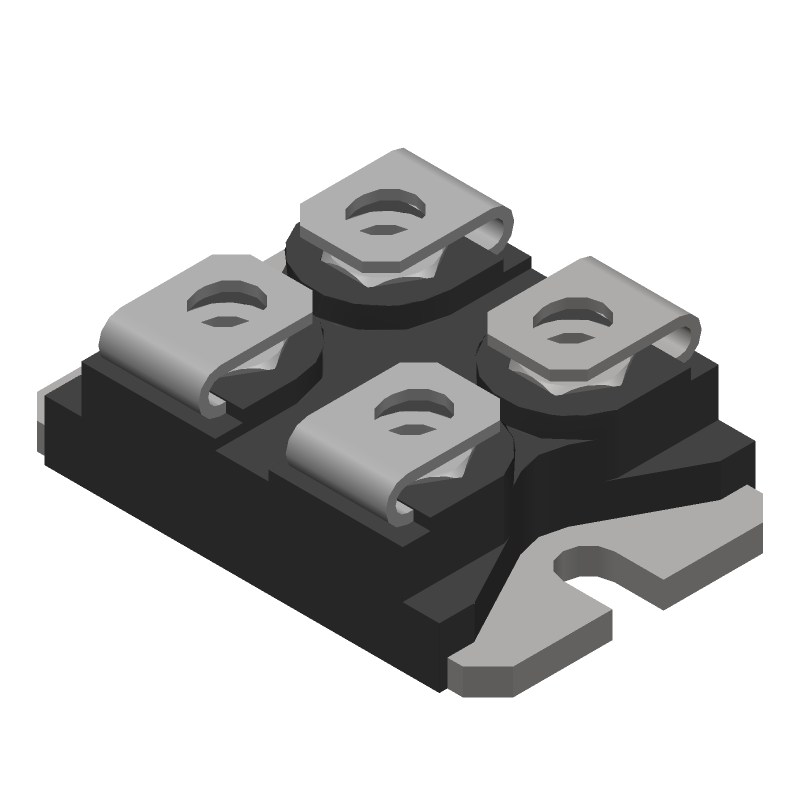

Rectifier Diode, Schottky, 1 Phase, 2 Element, 120A, 200V V(RRM), Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW NOISE, HIGH RELIABILITY | |
| Application | HIGH VOLTAGE ULTRA FAST SOFT RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-PUFM-X4 | |
| Non-rep Pk Forward Current-Max | 1000 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 120 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Recovery Time-Max | 0.07 µs | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UPPER | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
