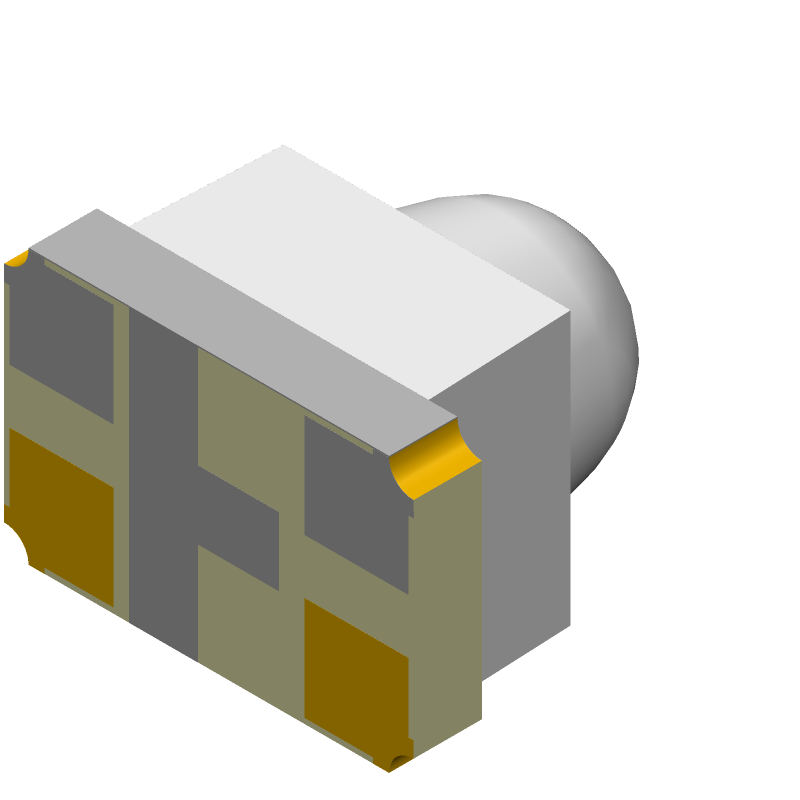

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for APDA3020LSECK/J4-PF by Kingbright
Results Overview of APDA3020LSECK/J4-PF by Kingbright
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
APDA3020LSECK/J4-PF Information
APDA3020LSECK/J4-PF by Kingbright is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for APDA3020LSECK/J4-PF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
754-1926-1-ND
|
DigiKey | LED ORANGE CLEAR 2SMD R/A Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
18114 In Stock |
|
$0.1284 / $0.4700 | Buy Now |
|
DISTI #
604-APDA3020LSECKJ4F
|
Mouser Electronics | Single Color LEDs 3.0X2.0MM RA. ORANGE SMD RoHS: Compliant | 7610 |
|
$0.1750 / $0.4700 | Buy Now |
|
DISTI #
000000000005384910
|
Sager | Standard LEDs - SMD 3.0X2.0MM RA. ORANGE SMD | 0 |
|
Buy Now | |
|
DISTI #
SMC-APDA3020LSECK/J4-PF
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 1272 |
|
RFQ |
Part Details for APDA3020LSECK/J4-PF
APDA3020LSECK/J4-PF CAD Models
APDA3020LSECK/J4-PF Part Data Attributes
|
|
APDA3020LSECK/J4-PF
Kingbright
Buy Now
Datasheet
|
Compare Parts:
APDA3020LSECK/J4-PF
Kingbright
Single Color LED, Super Bright Orange, Water Clear, T-3/4, 1.9mm, ROHS COMPLIANT, SMD, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KINGBRIGHT ELECTRONIC CO LTD | |
| Package Description | ROHS COMPLIANT, SMD, 2 PIN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Kingbright | |
| Color | SUPER BRIGHT ORANGE | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| JESD-609 Code | e3 | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 1800.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 2 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 611 nm | |
| Shape | ROUND | |
| Size | 1.9 mm | |
| Surface Mount | YES | |
| T-code | T-3/4 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 3 mm | |
| Viewing Angle | 10 deg |
APDA3020LSECK/J4-PF Frequently Asked Questions (FAQ)
-
The recommended storage temperature for APDA3020LSECK/J4-PF is -20°C to 40°C, with a relative humidity of 60% or less.
-
Yes, APDA3020LSECK/J4-PF is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture and UV degradation.
-
The maximum soldering temperature for APDA3020LSECK/J4-PF is 260°C for 3 seconds, with a peak temperature of 240°C.
-
Yes, APDA3020LSECK/J4-PF is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical luminous intensity of APDA3020LSECK/J4-PF is 4500-5500 mcd, with a viewing angle of 120°.
