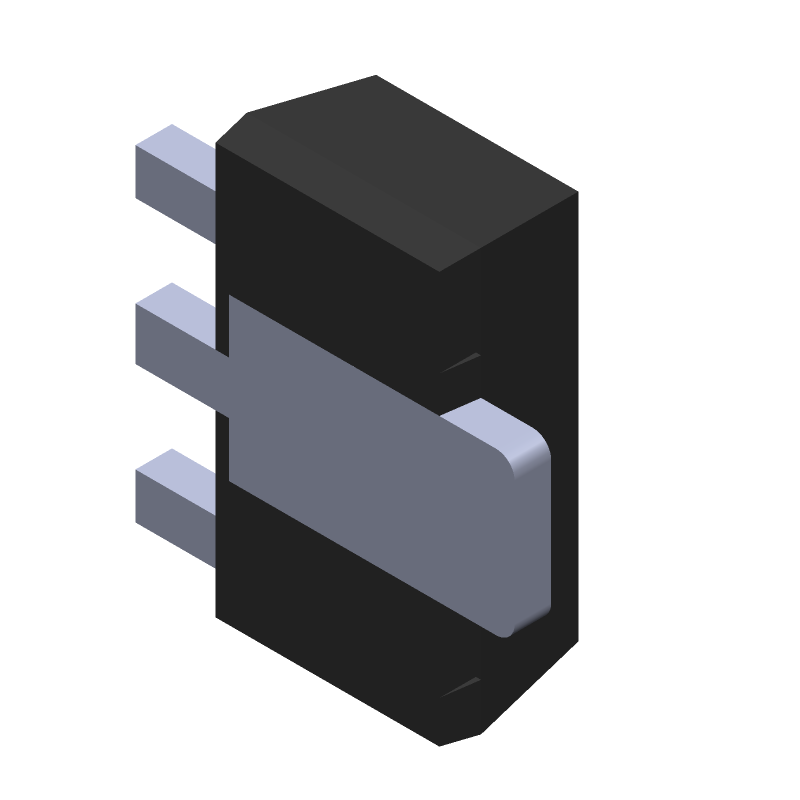

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP7375Q-50Y-13 by Diodes Incorporated
Results Overview of AP7375Q-50Y-13 by Diodes Incorporated
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AP7375Q-50Y-13 Information
AP7375Q-50Y-13 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP7375Q-50Y-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-AP7375Q-50Y-13CT-ND
|
DigiKey | IC REG LINEAR 5V 300MA SOT89-3 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) | Temporarily Out of Stock |
|
$0.1451 / $0.3800 | Buy Now |
|
DISTI #
AP7375Q-50Y-13
|
Avnet Americas | LDO Regulator Positive 5V 300mA 3-Pin SOT-89 T/R - Tape and Reel (Alt: AP7375Q-50Y-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1336 / $0.1364 | Buy Now |
|
DISTI #
621-AP7375Q-50Y-13
|
Mouser Electronics | LDO Voltage Regulators LDO High Voltage Standard SOT89 T&R 2.5K RoHS: Compliant | 4102 |
|
$0.1420 / $0.3800 | Buy Now |
|
DISTI #
AP7375Q-50Y-13
|
TME | IC: voltage regulator, LDO,linear,fixed, 5V, 0.35A, SOT89, SMD Min Qty: 1 | 0 |
|
$0.1670 / $0.5400 | RFQ |
|
DISTI #
US1D_HF
|
Avnet Asia | LDO Regulator Positive 5V 300mA 3-Pin SOT-89 T/R (Alt: US1D_HF) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.0301 / $0.0337 | Buy Now |
|
DISTI #
AP7375Q-50Y-13
|
Avnet Silica | LDO Regulator Positive 5V 300mA 3Pin SOT89 TR (Alt: AP7375Q-50Y-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Regulators | 4692 |
|
RFQ |
Part Details for AP7375Q-50Y-13
AP7375Q-50Y-13 CAD Models
AP7375Q-50Y-13 Part Data Attributes
|
|
AP7375Q-50Y-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP7375Q-50Y-13
Diodes Incorporated
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.4 V | |
| Dropout Voltage1-Nom | 1.2 V | |
| Input Voltage Absolute-Max | 55 V | |
| Input Voltage-Max | 45 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Line Regulation-Max | 0.038% | |
| Load Regulation-Max | 0.12375% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Packing Method | TR, 13 INCH | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% | |
| Width | 2.5 mm |
