AP7350-18CF4-7 Information
AP7350-18CF4-7 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP7350-18CF4-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK5793
|
Newark | Ldo, Fixed, 1.8V, 0.15A, -40 To 85Deg C Rohs Compliant: Yes |Diodes Inc. AP7350-18CF4-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3000 |
|
$0.2140 / $0.8400 | Buy Now |
|
DISTI #
31-AP7350-18CF4-7CT-ND
|
DigiKey | IC REG LINEAR 1.8V X2-WLB0606-4 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2911 In Stock |
|
$0.1498 / $0.3800 | Buy Now |
|
DISTI #
AP7350-18CF4-7
|
Avnet Americas | LDO VOLTAGE REGULATORS 150MA LDO CMOS LOW CURRENT - Tape and Reel (Alt: AP7350-18CF4-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 528000 Factory Stock |
|
$0.1392 / $0.1421 | Buy Now |
|
DISTI #
621-AP7350-18CF4-7
|
Mouser Electronics | LDO Voltage Regulators 150mA LDO CMOS Low Current RoHS: Compliant | 2952 |
|
$0.1490 / $0.3800 | Buy Now |
|
DISTI #
AP7350-18CF4-7
|
TME | IC: voltage regulator, LDO,linear,fixed, 1.8V, 0.15A, X2WLP4, SMD Min Qty: 1 | 0 |
|
$0.1350 / $0.4360 | RFQ |
|
DISTI #
AP7350-18CF4-7
|
IBS Electronics | AP7350-18CF4-7 by DIODES INC. is a low dropout linear regulator with a fixed output voltage of 1.8V, 150mA output current, high PSRR, low quiescent current, and operates from -40°, C to 85°, C. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.1495 / $0.1573 | Buy Now |
|
DISTI #
AP7350-18CF4-7
|
Avnet Asia | LDO VOLTAGE REGULATORS 150MA LDO CMOS LOW CURRENT (Alt: AP7350-18CF4-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.0988 / $0.1105 | Buy Now |
|
DISTI #
AP7350-18CF4-7
|
Avnet Silica | LDO VOLTAGE REGULATORS 150MA LDO CMOS LOW CURRENT (Alt: AP7350-18CF4-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
LCSC | 150mA Fixed 1.8V Positive electrode 5.25V X2-WLB0606-4 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 50 |
|
$0.1411 / $0.1493 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 3000 |
|
RFQ |
Part Details for AP7350-18CF4-7

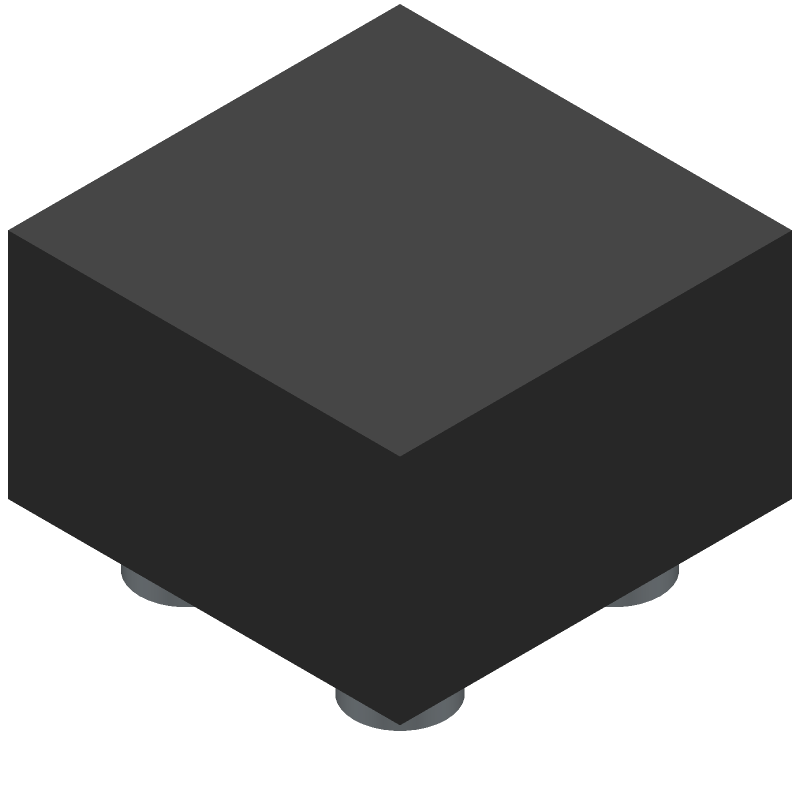

AP7350-18CF4-7 CAD Models
AP7350-18CF4-7 Part Data Attributes
|
|
AP7350-18CF4-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP7350-18CF4-7
Diodes Incorporated
Fixed Positive LDO Regulator,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | WLB-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-02-02 | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.33 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.25 V | |
| Input Voltage-Min | 2 V | |
| JESD-30 Code | S-PBGA-B4 | |
| JESD-609 Code | e1 | |
| Length | 0.655 mm | |
| Line Regulation-Max | 0.00396% | |
| Load Regulation-Max | 0.025% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 1.88 V | |
| Output Voltage1-Min | 1.72 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA4,2X2,14 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.38 mm | |
| Surface Mount | YES | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.35 mm | |
| Terminal Position | BOTTOM | |
| Voltage Tolerance-Max | 4.44% | |
| Width | 0.655 mm |
