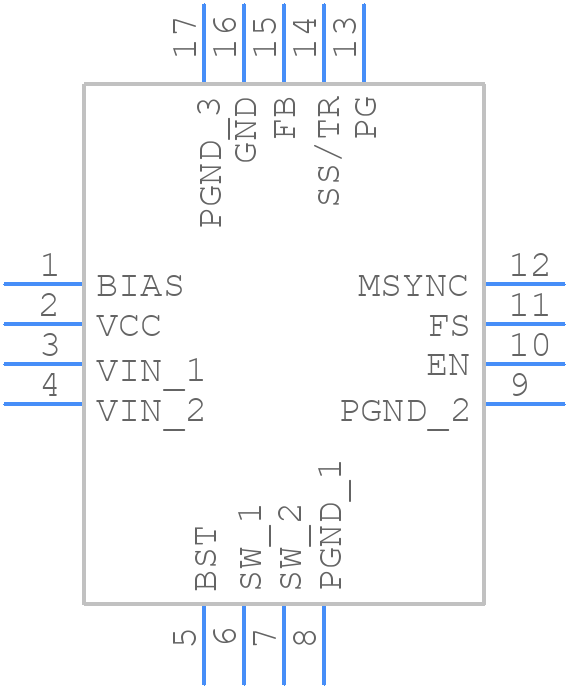

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP66200FVBW-13 by Diodes Incorporated
Results Overview of AP66200FVBW-13 by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
AP66200FVBW-13 Information
AP66200FVBW-13 by Diodes Incorporated is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP66200FVBW-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-AP66200FVBW-13CT-ND
|
DigiKey | IC REG BUCK ADJ 2A U-QFN4040-16 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1959 In Stock |
|
$0.7500 / $2.7000 | Buy Now |
|
DISTI #
AP66200FVBW-13
|
Avnet Americas | Converter DC to DC Single Step Down 3.8V to 60V 16-Pin UQFN T/R - Tape and Reel (Alt: AP66200FVBW-13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.7059 / $0.7426 | Buy Now |
|
DISTI #
621-AP66200FVBW-13
|
Mouser Electronics | Switching Voltage Regulators DCDC Conv HV Buck U-QFN4040-16 T&R 3K RoHS: Compliant | 418 |
|
$0.7500 / $2.6800 | Buy Now |
|
DISTI #
V72:2272_27199512
|
Arrow Electronics | Conv DC-DC 3.8V to 60V Synchronous Step Down Single-Out 0.8V to 50V 2A 16-Pin UQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2324 Container: Cut Strips | Americas - 938 |
|
$0.7694 / $1.3195 | Buy Now |
|
DISTI #
AP66200FVBW-13
|
TME | PMIC, DC/DC converter, Uin: 3.8÷60VDC, Uout: 0.8÷50VDC, 2A, SMD Min Qty: 1 | 0 |
|
$1.3000 / $2.1100 | RFQ |
|
DISTI #
AP66200FVBW-13
|
IBS Electronics | AP66200FVBW-13 by DIODES INC. is a high-efficiency synchronous buck converter with 2A output current, wide input voltage range of 4.5V to 18V, and 1.2MHz switching frequency, ideal for compact power solutions. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$1.0400 / $1.2480 | Buy Now |
|
DISTI #
AP66200FVBW-13
|
Avnet Asia | Converter DC to DC Single Step Down 3.8V to 60V 16-Pin UQFN T/R (Alt: AP66200FVBW-13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.5882 / $0.6579 | Buy Now |
|
DISTI #
AP66200FVBW-13
|
Avnet Silica | Converter DC to DC Single Step Down 38V to 60V 16Pin UQFN TR (Alt: AP66200FVBW-13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Other Function Semiconductors | 1542 |
|
RFQ |
Part Details for AP66200FVBW-13
AP66200FVBW-13 CAD Models
AP66200FVBW-13 Part Data Attributes
|
|
AP66200FVBW-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP66200FVBW-13
Diodes Incorporated
Switching Regulator, Current-mode, 2A, 2800kHz Switching Freq-Max, QFN-16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | QFN-16 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | PFM CONTROL TECHNIQUE ALSO AVAILABLE | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 3.8 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 50 V | |
| Output Voltage-Min | 0.8 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.16SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.63 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2800 kHz | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
AP66200FVBW-13 Frequently Asked Questions (FAQ)
-
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
-
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking to keep the junction temperature below the maximum rating.
-
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) type, such as X5R or X7R ceramic capacitors. This ensures stable operation and minimizes input voltage ripple.
-
To troubleshoot output voltage instability or oscillation issues, check the PCB layout for any noise or signal coupling issues. Ensure that the output capacitor is properly sized and has a low ESR. Also, verify that the feedback loop is properly compensated and the device is operated within its recommended operating conditions.
-
The recommended output capacitor value is 10uF to 47uF, with a low ESR type, such as X5R or X7R ceramic capacitors. This ensures stable output voltage and minimizes output voltage ripple.
