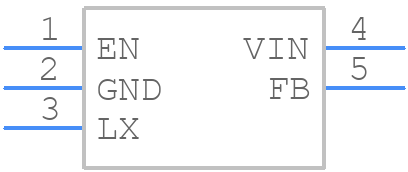

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP3429AKTTR-G1 by Diodes Incorporated
Results Overview of AP3429AKTTR-G1 by Diodes Incorporated
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AP3429AKTTR-G1 Information
AP3429AKTTR-G1 by Diodes Incorporated is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP3429AKTTR-G1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76AH4722
|
Newark | Dc/Dc Conv, Sync Buck, 1Mhz, 85Deg C Rohs Compliant: Yes |Diodes Inc. AP3429AKTTR-G1 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 175 |
|
$0.1890 / $0.4710 | Buy Now |
|
DISTI #
AP3429AKTTR-G1DICT-ND
|
DigiKey | IC REG BUCK ADJ 2A TSOT25 Min Qty: 1 Lead time: 12 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
2836 In Stock |
|
$0.0926 / $0.2500 | Buy Now |
|
DISTI #
AP3429AKTTR-G1
|
Avnet Americas | Conv DC-DC Single Step Down 2.7V to 5.5V 5-Pin TSOT-25 T/R - Tape and Reel (Alt: AP3429AKTTR-G1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0824 / $0.0866 | Buy Now |
|
DISTI #
621-AP3429AKTTR-G1
|
Mouser Electronics | Switching Voltage Regulators 1.0MHz 2A Step Down No Latch Off RoHS: Compliant | 74072 |
|
$0.1010 / $0.6000 | Buy Now |
|
DISTI #
E02:0323_09045727
|
Arrow Electronics | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 2A 5-Pin TSOT-25 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2503 | Europe - 3000 |
|
$0.0967 / $0.1016 | Buy Now |
|
DISTI #
AP3429AKTTR-G1
|
TME | PMIC, DC/DC converter, Uin: 2.7÷5.5VDC, Uout: 0.6÷5.5VDC, 2A, SMD Min Qty: 1 | 1358 |
|
$0.1160 / $0.2710 | Buy Now |
|
DISTI #
SMC-AP3429AKTTR-G1
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 8092 |
|
RFQ | |
|
DISTI #
AP3429AKTTR-G1
|
Avnet Asia | Conv DC-DC Single Step Down 2.7V to 5.5V 5-Pin TSOT-25 T/R (Alt: AP3429AKTTR-G1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
AP3429AKTTR-G1
|
Avnet Silica | Conv DCDC Single Step Down 27V to 55V 5Pin TSOT25 TR (Alt: AP3429AKTTR-G1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 87000 |
|
Buy Now | |
|
|
New Advantage Corporation | AP3429A Series 5.5 V 1 MHZ 2 A Step Down DC-DC Buck Converter - TSOT-25 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 21000 |
|
$0.1517 / $0.1643 | Buy Now |
Part Details for AP3429AKTTR-G1
AP3429AKTTR-G1 CAD Models
AP3429AKTTR-G1 Part Data Attributes
|
|
AP3429AKTTR-G1
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP3429AKTTR-G1
Diodes Incorporated
Switching Regulator, 1000kHz Switching Freq-Max, PDSO5, GREEN, TSOT-25, 5 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | OUTPUT VOLTAGE RANGE FROM 0.6 V TO 5.5 V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
AP3429AKTTR-G1 Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
-
Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal monitoring and overcurrent protection to prevent damage.
-
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 4.7uF to 10uF is recommended to filter the input voltage and reduce noise.
-
The AP3429AKTTR-G1 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and derate the device's specifications accordingly.
-
Check the input voltage, output load, and feedback resistors for proper configuration. Verify that the device is not overheating and that the output capacitor is suitable for the application.
