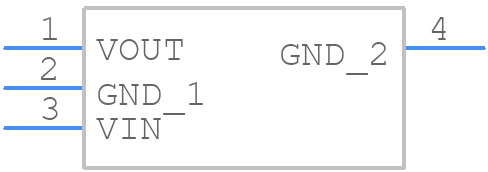

Part Symbol
-
Footprint
-

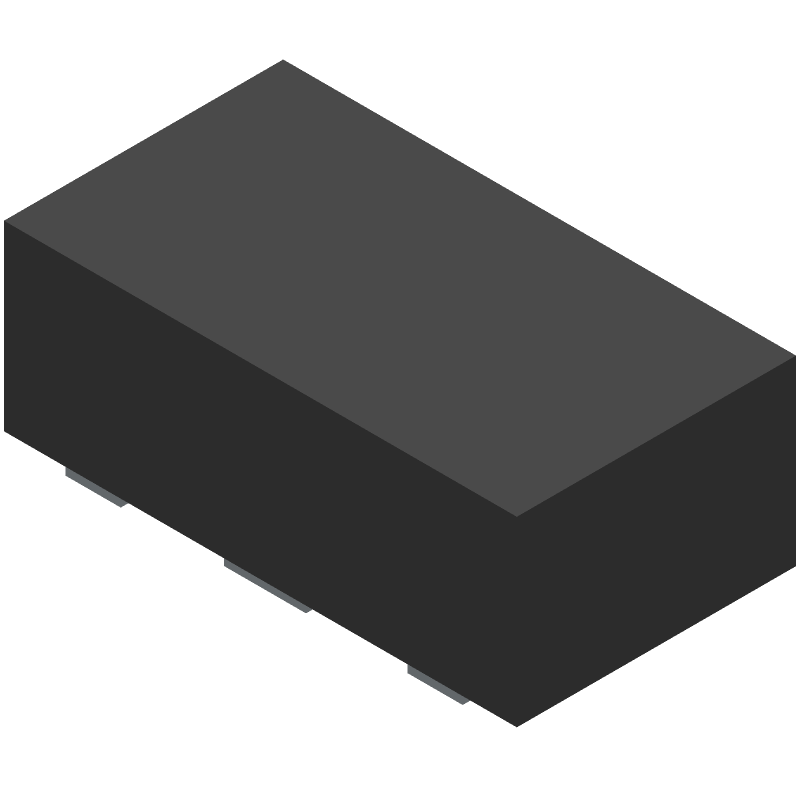

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP2204RB-5.0TRG1 by Diodes Incorporated
Results Overview of AP2204RB-5.0TRG1 by Diodes Incorporated
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
AP2204RB-5.0TRG1 Information
AP2204RB-5.0TRG1 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP2204RB-5.0TRG1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3482840
|
Farnell | LDO, FIXED, 5V, 0.15A, -40 TO 85DEG C RoHS: Compliant Min Qty: 5 Lead time: 27 Weeks, 1 Days Container: Cut Tape | 240 |
|
$0.2767 / $0.4956 | Buy Now |
|
DISTI #
3482840RL
|
Farnell | LDO, FIXED, 5V, 0.15A, -40 TO 85DEG C RoHS: Compliant Min Qty: 100 Lead time: 27 Weeks, 1 Days Container: Reel | 240 |
|
$0.2767 | Buy Now |
|
DISTI #
621-AP2204RB-5.0TRG1
|
Mouser Electronics | LDO Voltage Regulators LDO CMOS LowCurr RoHS: Compliant | 5822 |
|
$0.1020 / $0.6400 | Buy Now |
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 5V, 0.5V DROPOUT, PSSO3 | 80000 |
|
$0.1880 / $0.6265 | Buy Now |
|
DISTI #
AP2204RB-5.0TRG1
|
TME | IC: voltage regulator, LDO,linear,fixed, 5V, 0.2A, SOT89, SMD, ±2% Min Qty: 5 | 0 |
|
$0.1220 / $0.1650 | RFQ |
Part Details for AP2204RB-5.0TRG1
AP2204RB-5.0TRG1 CAD Models
AP2204RB-5.0TRG1 Part Data Attributes
|
|
AP2204RB-5.0TRG1
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP2204RB-5.0TRG1
Diodes Incorporated
Fixed Positive LDO Regulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | SOT-89, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-06-23 | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.36 V | |
| Input Voltage Absolute-Max | 38 V | |
| Input Voltage-Max | 24 V | |
| Input Voltage-Min | 6 V | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 2.45 mm |
AP2204RB-5.0TRG1 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AP2204RB-5.0TRG1 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power and ground plane is recommended.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF with an ESR of 10mΩ or less is recommended. You can also add a 10nF capacitor in parallel with the output capacitor to improve stability.
-
The AP2204RB-5.0TRG1 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure a junction temperature below 125°C.
-
While the AP2204RB-5.0TRG1 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. You should consider factors like AEC-Q100 qualification, PPAP documentation, and production part approval process (PPAP) requirements. Consult with Diodes Incorporated or a qualified representative for guidance.
-
To protect the AP2204RB-5.0TRG1 from input voltage surges or transients, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. You can also use a fuse or a PTC (positive temperature coefficient) thermistor to limit the inrush current.
